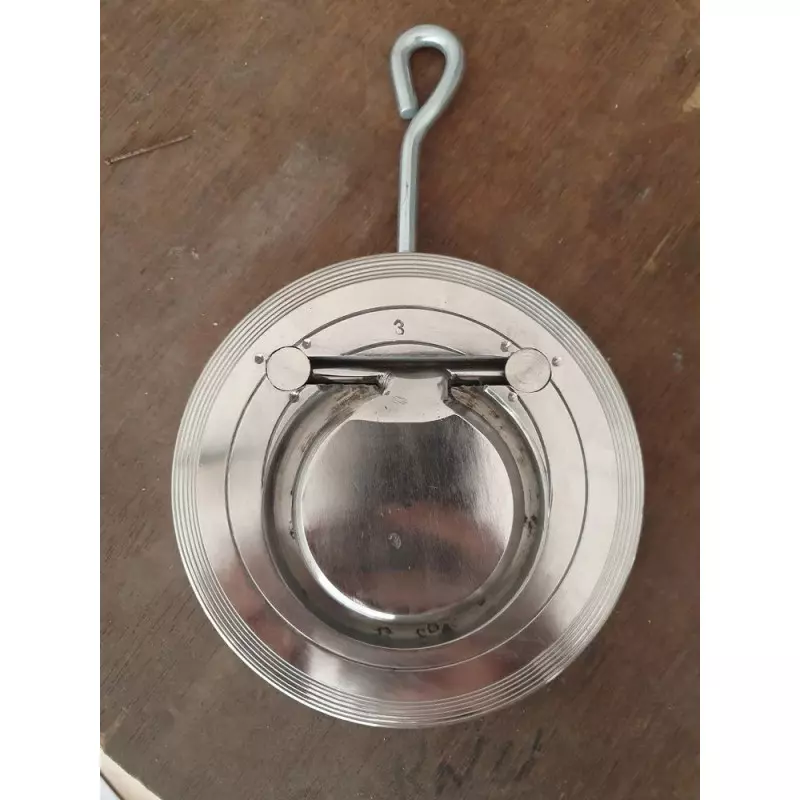

Wafer Type Check Valve

In a pipeline, keeping flow moving in the intended direction is just as important as controlling it. Our Wafer Type Check Valve is designed to provide automatic protection against reverse flow while maintaining a compact installation profile. The SVI Make valve is specified in SS 304 construction with a 4-inch valve size and wafer-end connection, making it a practical choice for compatible water-flow systems and industrial pipeline arrangements in Ahmedabad, Gujarat.

Automatic Protection Without Manual Operation

A check valve works differently from manually operated flow-control valves. It responds to the movement and direction of the process medium. During forward flow, the internal closing element moves to permit passage. When the flow reduces or attempts to reverse, the element moves toward its seating position, restricting unwanted backflow. This self-acting principle helps protect connected equipment and maintain directional flow within the pipeline.

Compact Wafer-End Configuration

The wafer-end construction is one of the key characteristics of this valve. Instead of relying on an extended valve body, the compact configuration is installed within a suitable flanged pipeline arrangement. This can be beneficial where installation space is limited or where a streamlined valve assembly is preferred. Proper flange compatibility, alignment and installation practices should be confirmed for the selected pipeline system.

SS 304 Construction for Water Service

The valve is manufactured with SS 304 as the stated material of construction. Stainless-steel construction can be advantageous for compatible water-service environments where material durability and resistance to corrosion are important considerations. Actual suitability should be evaluated against the water quality, operating temperature, pressure and other process conditions of the intended installation.

Functional Features for Pipeline Applications

• 4-inch nominal valve size for the specified pipeline application.
• Wafer-end design for compact installation between compatible flanges.
• SS 304 material of construction.
• Designed for water as the stated service medium.
• Automatic operation based on flow direction.
• Helps restrict reverse flow without continuous manual intervention.
• ISO certification as specified for the product.
• SVI Make construction for industrial valve requirements.
• Minimum order quantity of one piece.

Where a Wafer Check Valve Fits into a System

Wafer Type Check Valves can be considered in water pipelines and compatible industrial flow systems where reverse-flow protection is required. They may be positioned at suitable points in a pipeline to help prevent backflow toward pumps, process equipment or other connected sections. Valve positioning and installation orientation should follow the applicable design and manufacturer requirements.

Specification Before Installation

For correct valve selection, the pipeline size should be matched with the 4-inch valve, while the connection arrangement should be checked for wafer-end compatibility. Operating pressure, temperature, water characteristics and installation orientation should also be reviewed before procurement and commissioning.

Shiv Valves Industries, established in 2022, supplies SVI Make valve solutions from Ahmedabad, Gujarat. For your Wafer Type Check Valve requirement, share the pipeline size, service conditions, quantity and installation details to receive the appropriate technical information and quotation.
