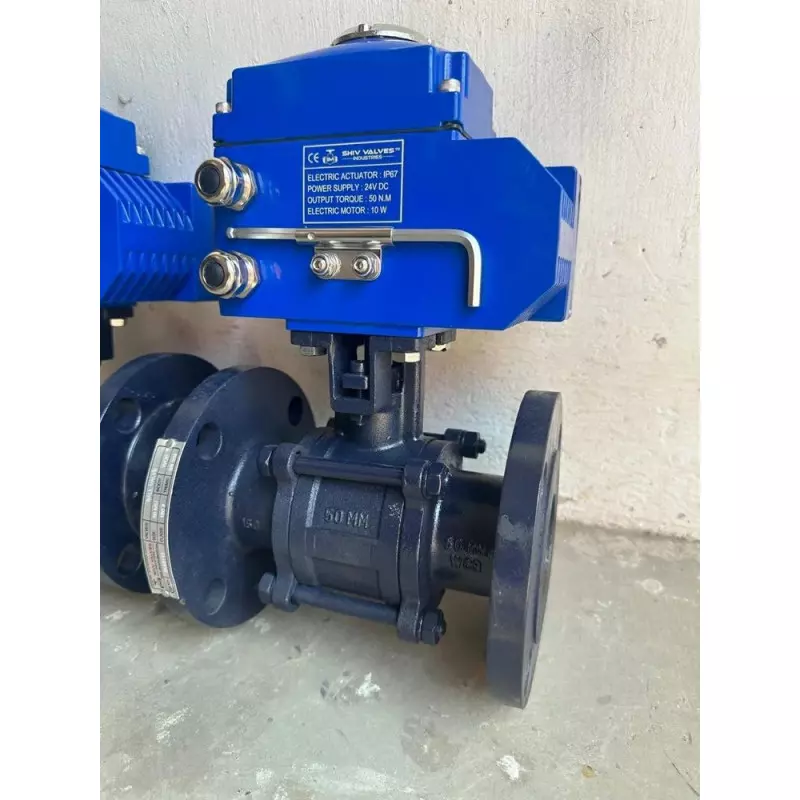

Motorized Ball Valve

Remote valve operation becomes especially valuable when a pipeline serves multiple process areas and manual access is inconvenient. Our Motorized Ball Valve range is designed around automatic electric operation, allowing the connected valve to be opened or closed through an electrical control signal. This SVI configuration is supplied for industrial applications involving water, air, gas, wastewater and other specified media, with a 4-inch valve size and PN16 pressure rating.

Electric On-Off Operation for Modern Piping Systems

The motorized valve combines a valve body with an electric actuator that converts electrical energy into mechanical movement. In this configuration, the specified operation is On-Off, so the actuator drives the valve between its defined operating positions rather than providing continuous modulating control. This makes the arrangement useful for automated isolation, line switching and process sequencing.

Compact Butterfly Configuration With Motorized Control

The valve uses a rotating disc to establish or interrupt flow. Its wafer-end arrangement provides a compact installation format between compatible flanges, making it suitable for pipeline layouts where installation space and accessibility are important considerations. The EPDM seat is specified for the supplied configuration, while material availability includes CI, WCB, SS 304 and SS 316 according to the selected arrangement.

Connection Options Within the Product Range

Depending on project requirements, the motorized butterfly valve range can be configured with Wafer End, Lug End or Flange End connections. This provides flexibility when matching the valve assembly to the existing pipeline arrangement. Final selection should be based on the actual piping standard, pressure conditions and installation requirements.

Specified for Diverse Industrial Media

The supplied application information includes water, gas, wastewater and air, while the stated media range also includes hot water, chilled water, steam, chemical service and gas. Actual suitability should always be verified against the valve body, seat material, pressure, temperature and chemical compatibility required for the particular process.

• Automatic electric actuation
• 230V AC power supply
• 4-inch valve size
• PN16 stated pressure rating
• On-off valve operation
• EPDM seat material
• Class VI leakage specification
• Maximum stated temperature of 120°C
• Wafer, lug and flange-end options within the range
• No positioner in the specified configuration

Designed Around Practical Automation Requirements

A motorized valve can be connected to an electrical control arrangement so that operators can command valve movement without physically reaching the pipeline. This can simplify operation in remote, congested or frequently accessed process areas. Because this model is specified for on-off operation, it is particularly relevant where the process requires dependable automated opening and closing rather than proportional flow modulation.

Shiv Valves Industries supplies SVI valve solutions from Ahmedabad, Gujarat, with this motorized configuration offered for industrial requirements. The minimum order quantity specified for this product is 1 piece.

For enquiries about the Motorized Ball Valve, share your required valve size, media, operating temperature, pressure, connection type and electrical control requirements with us in Ahmedabad, Gujarat. Our team can help you evaluate the appropriate configuration for your installation.
