100mm Pneumatic Butterfly Valve

Precise flow isolation becomes especially valuable when a compact pipeline has to be operated repeatedly without relying on manual intervention. Our 100mm Pneumatic Butterfly Valve is developed for automated quarter-turn control in industrial piping systems, combining a cast iron body, EPDM seat, wafer-end construction and a double-acting pneumatic actuator. Manufactured by Shiv Valves Industries in Ahmedabad, Gujarat, this configuration offers a practical solution where quick actuation, compact installation and dependable shut-off are required.

Compact 100mm Design for Automated Flow Control

The valve is designed for a 100 mm pipeline and uses a rotating disc to regulate or isolate the process flow. Its wafer connection allows the valve to be installed between compatible pipeline flanges without requiring a large installation footprint. The double-acting actuator uses compressed air for both opening and closing, making the arrangement suitable for frequent automated operation.

How the Pneumatic Arrangement Works

Compressed air enters the pneumatic actuator and generates rotary movement, which is transferred through the valve shaft to the butterfly disc. The disc moves through its quarter-turn operating range to establish an open or closed flow position. With a double-acting actuator, air pressure is used to drive both directions of movement, providing consistent control for automated on-off applications.

• Double-acting pneumatic actuation for opening and closing
• 100 mm nominal valve size for compact industrial pipelines
• 4–6 bar air supply requirement
• Cast iron body for robust general industrial service
• EPDM seat for suitable fluid-sealing applications
• Wafer connection for space-efficient installation
• PN10 pressure rating

Integrated Accessories for Better Control

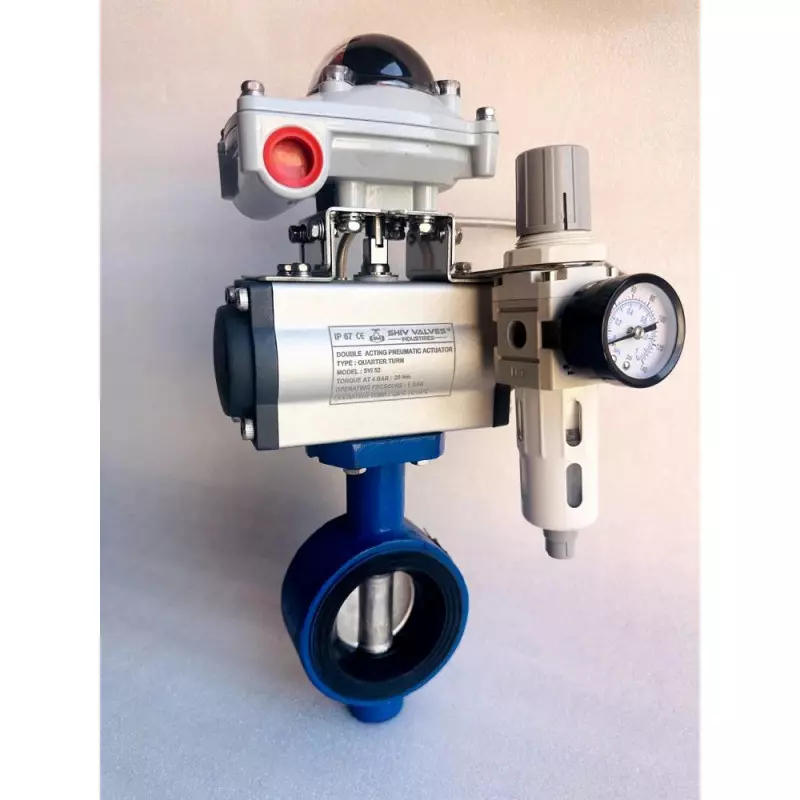

The available accessory combination expands the functionality of the valve assembly. An air filter regulator can be used to condition and regulate the pneumatic air supply, while the solenoid valve provides electrically controlled pneumatic actuation. A limit switch box can provide valve-position feedback for suitable monitoring and control arrangements. These components make the 100mm pneumatic butterfly valve adaptable to automated industrial systems where operating status and remote control are important.

Applications Across Industrial Piping

Pneumatic butterfly valves are commonly selected for applications requiring fast quarter-turn isolation and automated flow management. This 100mm configuration can be considered for suitable water-handling systems, utility pipelines, HVAC installations and general industrial process services. EPDM seat selection should be checked against the actual process medium and temperature before installation.

Shiv Valves Industries, established in 2022, manufactures valve solutions in Ahmedabad with attention to application requirements and product quality. The 100mm Pneumatic Butterfly Valve is available with its specified pneumatic and control accessories to support different automation arrangements across Ahmedabad and Gujarat.

For product specifications, availability, accessory configuration or application guidance, contact Shiv Valves Industries in Ahmedabad, Gujarat. Share your pipeline size, operating pressure, medium and automation requirements to discuss the appropriate configuration for your project.
