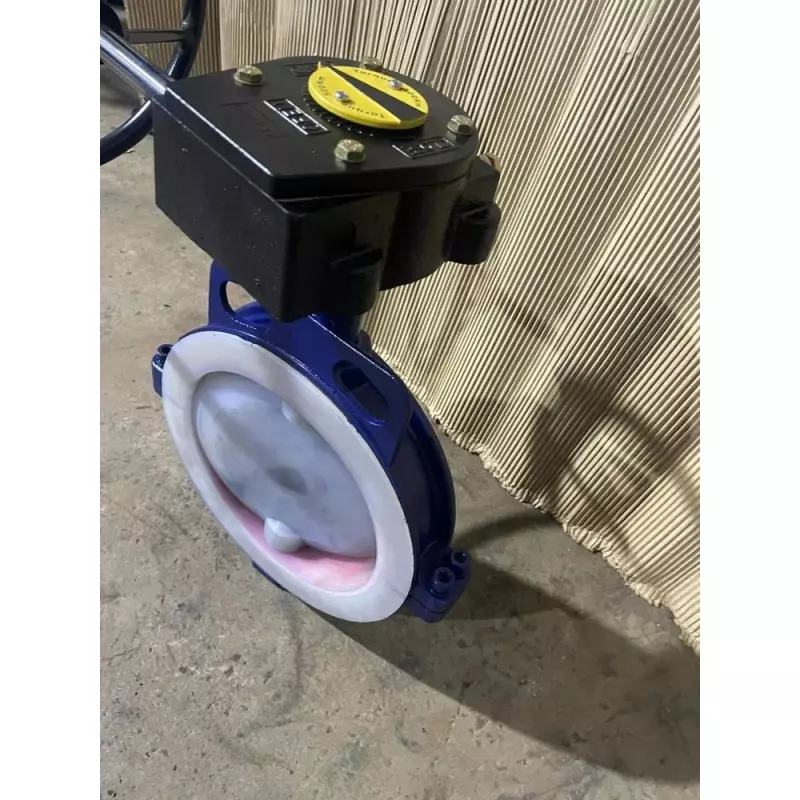

FEP PFA Lined Butterfly Valve

In process lines where the conveyed medium can challenge conventional valve materials, the internal lining becomes a critical part of the flow-control design. Our FEP PFA Lined Butterfly Valve is configured to provide a protected flow path with a fluoropolymer lining, while its compact butterfly construction supports practical isolation in industrial piping. This SVI Make valve features a 100 mm port size, FEP lining, PTFE seat, SS304 disc, CS body, wafer-end connection, and PN10 pressure rating, making it suitable for compatible process applications requiring careful material selection.

Fluoropolymer-Lined Design for Demanding Process Service

The FEP lining provides a protective barrier between the process medium and the carbon steel body. Fluoropolymer-lined valve construction is commonly selected where chemical compatibility and protection of the underlying valve body are important considerations. The specified FEP-lined arrangement is complemented by a PTFE seat, creating an internal material combination intended for compatible industrial process conditions.

Gear-Driven Operation in a Compact Wafer Configuration

The 100 mm valve uses gear operation for controlled manual movement. This arrangement provides a practical method of operating the disc when precise and manageable movement is preferred over direct lever operation. Its wafer-end construction is designed for installation between compatible flanges, helping keep the overall valve arrangement compact and suitable for space-conscious pipeline layouts.

SS304 Disc with PTFE Seating

An SS304 disc provides the primary rotating flow-control element, while the PTFE seat supports the sealing arrangement. Combined with the FEP lining, these materials create a carefully selected internal configuration for applications where the process medium requires appropriate corrosion-resistant or chemically compatible wetted materials. Actual suitability should be confirmed against the specific chemical composition, concentration, pressure, and temperature of the process.

Important Product Characteristics

• 100 mm port size for compact industrial pipeline applications.
• FEP-lined internal flow passage for compatible process services.
• PTFE seat material for the specified sealing arrangement.
• SS304 disc for durable flow-control performance.
• CS body providing a strong structural valve housing.
• Wafer-end connection for installation between suitable flanges.
• Gear-operated manual control for measured disc movement.
• PN10 pressure rating for applicable operating conditions.
• Specified temperature range from -20 to 200°C.
• Made in India under the SVI Make range.

Designed Around Application-Specific Material Selection

FEP and PTFE-lined butterfly valves can be valuable where process engineers need to balance valve construction, sealing requirements, and compatibility with the conveyed medium. The combination offered here provides a lined flow path with a stainless steel disc and gear-operated mechanism. It can be considered for compatible industrial process lines where manual isolation and fluoropolymer-lined construction are required.

Shiv Valves Industries, established in 2022, manufactures industrial valve solutions in Ahmedabad, Gujarat, with emphasis on application-oriented construction and consistent product quality. This FEP PFA Lined Butterfly Valve is available for industrial requirements with a minimum order quantity as applicable to the project.

For technical specifications, application suitability, quantities, or enquiries for the 100 mm PN10 FEP PFA lined butterfly valve, contact Shiv Valves Industries in Ahmedabad, Gujarat. Our team can assist with selecting the appropriate configuration according to your process and pipeline requirements.
