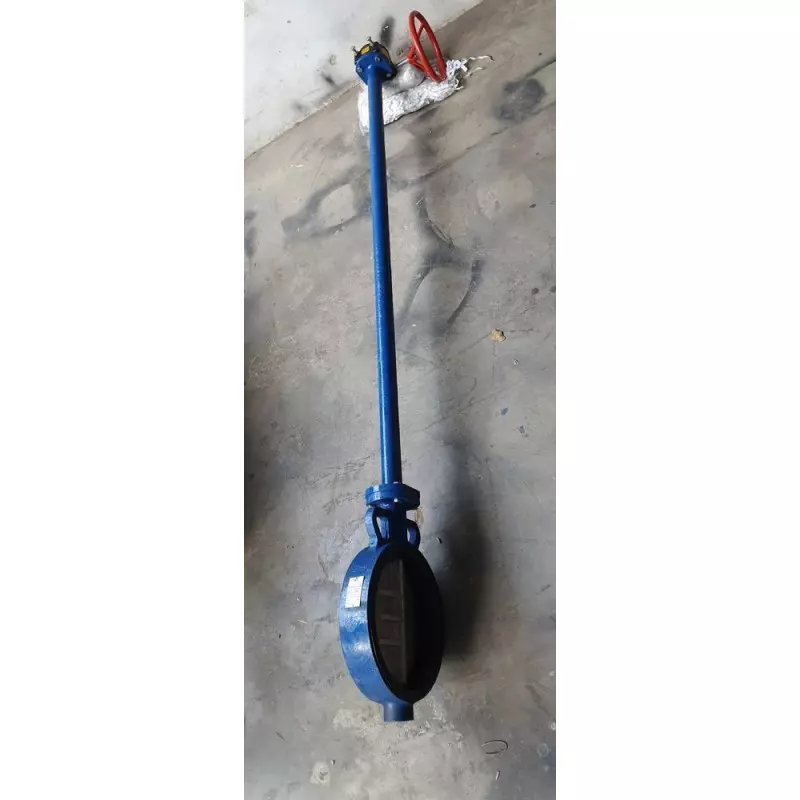

Extended Shaft Butterfly Valve

When a butterfly valve has to be positioned where direct access to the valve operator is difficult, an extended shaft arrangement provides a practical solution. Our Extended Shaft Butterfly Valve is designed for water-handling applications where the operating mechanism needs to be conveniently accessible beyond the immediate valve installation point. Manufactured in cast iron and configured for manual gear operation, this valve combines straightforward operation with a space-conscious butterfly valve design for industrial piping systems in Ahmedabad, Gujarat.

Extended Reach for Convenient Valve Operation

The extended shaft transfers operating movement from the gear mechanism to the butterfly valve disc, allowing the valve to be operated from a more accessible position. This arrangement is particularly useful where the valve is installed in locations with restricted access, deeper piping arrangements, or other physical obstructions. The gear operator provides controlled movement of the disc, making opening and closing easier than direct manual handling on larger valve sizes.

Product Specifications at a Glance

Built Around a Practical Butterfly Valve Configuration

The valve uses the characteristic quarter-turn movement of a butterfly valve, with a disc positioned inside the flow passage. Turning the gear operator rotates the shaft and disc between open and closed positions. In the open position, the disc moves away from the primary flow path; when closed, it restricts the passage to isolate the water line. The geared arrangement is well suited to an 8-inch valve, where controlled manual operation can be preferable to direct lever operation.

Suitable for Water Pipeline Installations

Designed specifically around water as the service media, this extended shaft butterfly valve can be considered for water distribution and other low-pressure water piping arrangements. Its cast iron construction provides a conventional, robust valve body configuration, while the extended operating arrangement helps simplify access during routine operation. The manual design also avoids dependence on electrical or pneumatic power for basic isolation duties.

Installation and Operating Considerations

• 8-inch valve size for larger water pipeline applications.
• Cast iron construction for the valve body.
• Manual operation through a gear mechanism.
• Extended shaft arrangement for improved operator accessibility.
• Suitable for water service and low-pressure applications.
• Quarter-turn butterfly valve operation for practical pipeline isolation.

With its extended operating arrangement, 8-inch size, cast iron construction and gear-based manual operation, this Extended Shaft Butterfly Valve is a practical choice for water pipeline requirements. For specifications, quantity requirements and suitable configurations, contact our valve manufacturing team in Ahmedabad, Gujarat for application-specific assistance.
