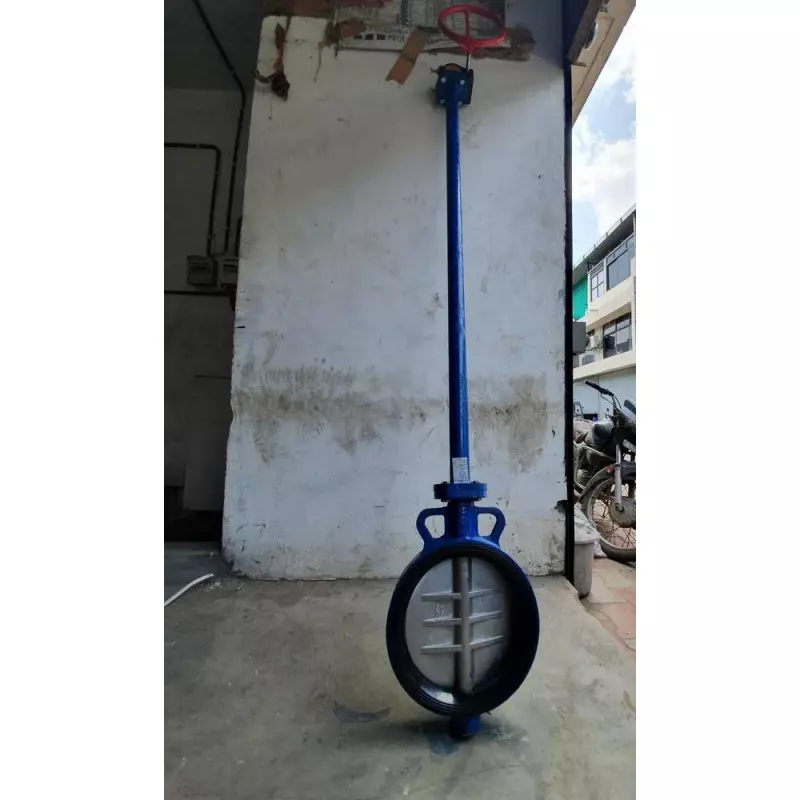

Long Shaft Butterfly Valve Wafer Type

When a large-diameter pipeline needs dependable shut-off with practical manual control, a wafer-type butterfly valve with an extended shaft offers a compact and efficient solution. Our Long Shaft Butterfly Valve Wafer Type is designed for industrial flow-control duties where accessible operation, sturdy construction and space-conscious installation are important. Manufactured in Ahmedabad, Gujarat, this valve combines a cast iron body with an EPDM seat and gear-operated mechanism for controlled movement in demanding pipeline applications.

Extended-Shaft Design for Practical Pipeline Operation

The long-shaft arrangement provides a convenient operating interface when the valve is installed in locations where direct access to the valve body is restricted. Its wafer-type end configuration allows the valve to be positioned between compatible pipeline flanges without requiring bulky flanged valve ends. The 200 mm size corresponds to an 8-inch valve size, making this configuration suitable for larger flow lines.

Technical Details at a Glance

Construction Focused on Reliable Flow Isolation

The cast iron body provides a robust structural foundation for industrial service, while the EPDM seat supports dependable sealing for suitable water and compatible low-temperature media applications. The gear-operated arrangement provides controlled manual actuation, particularly useful on an 8-inch valve where direct lever operation may require greater operating effort. The PN16 pressure rating further defines its intended pressure-service capability.

Key Performance Features

• Wafer construction helps maintain a compact installation profile between pipeline flanges.
• Long-shaft configuration facilitates operation where the valve mechanism needs extended access.
• 8-inch / 200 mm size is suited to larger industrial pipeline sections.
• Cast iron body provides a sturdy construction for general industrial service.
• EPDM seating supports effective shut-off for compatible media.
• Gear operation enables controlled manual opening and closing.
• PN16 pressure rating supports defined industrial pressure applications.
• EN 558-1 face-to-face dimension supports standardized installation requirements.

Where This Valve Fits into Industrial Flow Systems

This long shaft butterfly valve is suitable for industrial pipeline systems requiring manual isolation and flow shut-off. Its configuration can be considered for water-handling lines, utility services and other compatible low-temperature process applications where a wafer connection and gear-assisted operation are preferred.

With its combination of 8-inch size, wafer construction, long-shaft arrangement, cast iron body, EPDM seat and PN16 rating, this butterfly valve is engineered around practical pipeline installation and controlled manual operation. Shiv Valves Industries, established in 2022, supplies industrial valve solutions from Ahmedabad, Gujarat, with a focus on consistent manufacturing and application-oriented valve construction.

For specifications, quantity requirements or application-based selection of the Long Shaft Butterfly Valve Wafer Type, contact Shiv Valves Industries in Ahmedabad, Gujarat for product details and supply assistance.
