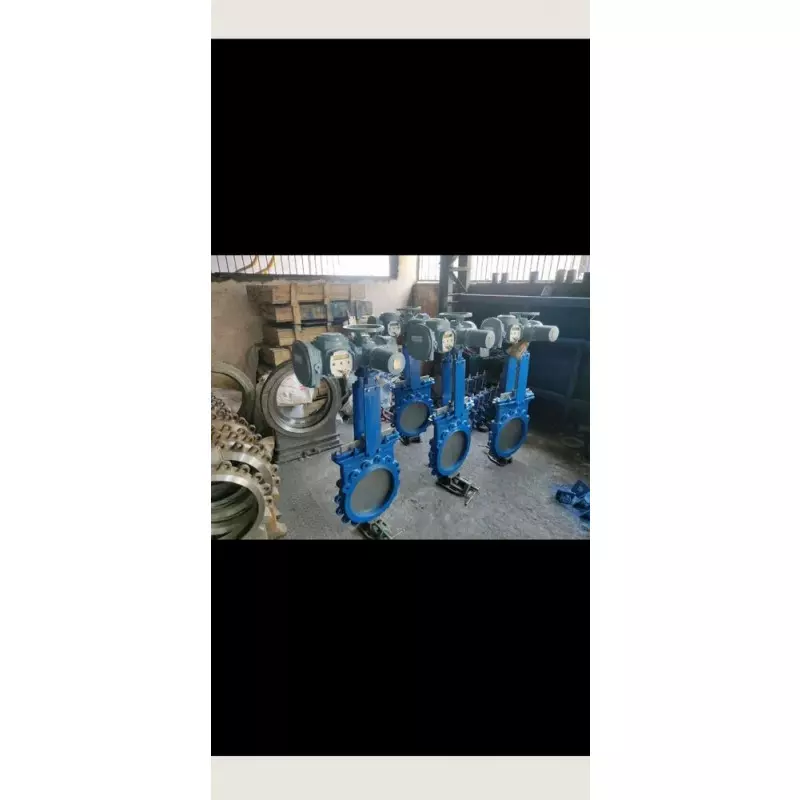

Motorized Knife Gate Valve

Automated isolation becomes especially valuable when a valve is installed in a large industrial line and frequent manual operation is impractical. The Motorized Knife Gate Valve from SVI combines a knife gate mechanism with motorized operation, providing an electrically operated solution for opening and closing industrial flow lines. Available from 50 mm to 800 mm, this valve is configured in cast steel and designed for applications operating at PN10 working pressure.

Motor-Driven Knife Gate Operation

A knife gate valve uses a sliding gate to establish or interrupt the flow passage. In the motorized configuration, the gate movement is controlled through an electric drive, allowing the valve to be operated from a suitable electrical control arrangement rather than relying entirely on manual intervention. This makes the configuration useful where valves are positioned in difficult-to-access locations or incorporated into automated industrial processes.

The SVI design is focused on isolation service, with the knife gate moving through the valve passage to achieve the required open or closed position. Correct sizing and application selection remain important according to the process media, pipeline configuration and operating conditions.

Technical Details for Quick Reference

Features Supporting Automated Isolation

• Motorized operation: Enables electrically controlled gate movement for convenient remote or automated operation.
• Knife gate mechanism: Provides a direct sliding isolation arrangement within the pipeline.
• Cast steel construction: Offers a robust body configuration for industrial applications.
• Wide size range: Available from 50 mm through 800 mm for different pipeline requirements.
• PN10 working pressure: Configured for applications operating within the stated pressure rating.
• Industrial configuration: Designed for integration into suitable process and utility piping systems.

Choosing the Right Size and Configuration

With sizes extending from 50 mm to 800 mm, this Motorized Knife Gate Valve can be considered for both smaller process lines and larger industrial pipelines. Selection should take into account nominal line size, process media, pressure, temperature, installation orientation and the required motorized operating arrangement. The valve and motor assembly should be matched to the operating duty to ensure appropriate movement and reliable isolation.

Designed for Practical Industrial Automation

Motorized knife gate valves are particularly useful when centralized control, repeatable operation or reduced manual intervention is important. An electrically operated valve can be incorporated into an appropriate plant control system, allowing operators to manage valve movement from a designated control location. This can simplify operation where multiple isolation points are distributed throughout an industrial facility.

Shiv Valves Industries, established in 2022, offers the SVI Make Motorized Knife Gate Valve from Ahmedabad, Gujarat. The valve is supplied as a Made in India product and is available in a broad size range for industrial requirements.

For enquiries about the Motorized Knife Gate Valve in Ahmedabad, Gujarat, share your required valve size, operating pressure, media, installation details and motorized operating requirements with Shiv Valves Industries for suitable configuration and supply guidance.
