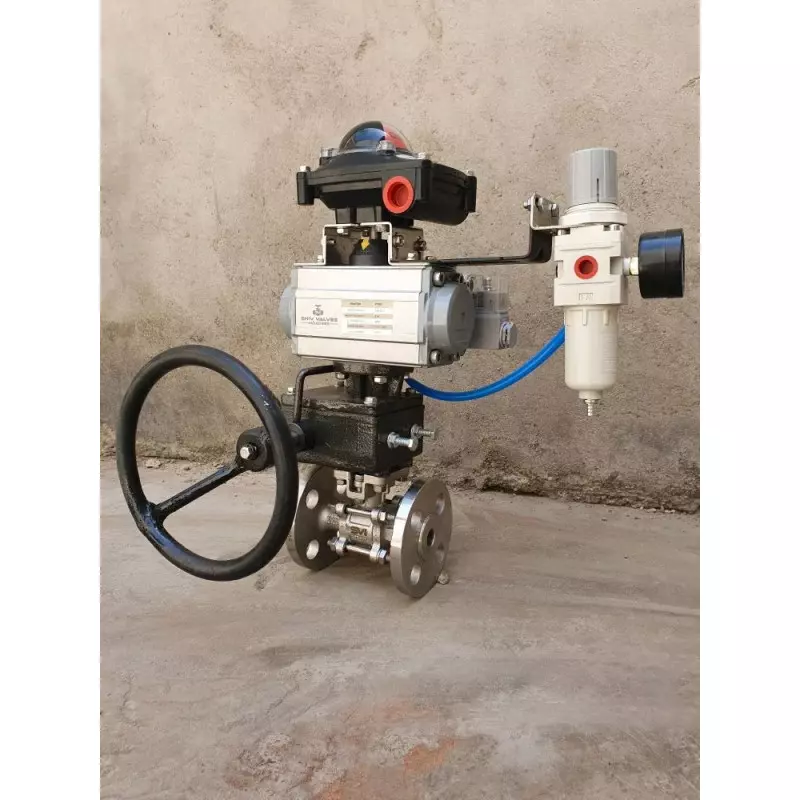

Pneumatic 3 Pc. Design Extended Shaft Floating Ball Valve

When a valve has to combine full-bore flow passage with automated quarter-turn isolation, the configuration of the ball, seat and actuator connection becomes especially important. Our Pneumatic 3 Pc. Design Extended Shaft Floating Ball Valve is designed around this principle, combining a floating-ball construction, full-bore port, pneumatic operation and extended-shaft arrangement. The SVI configuration is available in a 1-inch size with a stainless-steel body, PTFE seat and Class 150 pressure class for suitable industrial applications in Ahmedabad, Gujarat.

Floating-Ball Construction for Positive Flow Isolation

In a floating ball valve, the ball is not fixed rigidly at both ends. During shut-off, process pressure assists the ball in moving toward the downstream seat, helping establish the sealing interface. The full-bore passage allows the valve opening to correspond closely with the pipeline flow path, making this configuration suitable where maintaining an unrestricted passage is an important consideration.

Three-Piece Design with Extended Shaft Arrangement

The three-piece configuration provides a practical valve construction for industrial installation and servicing. The extended shaft arrangement provides additional flexibility in positioning the operating mechanism in applications where the actuator needs to be located away from the immediate valve body area. Pneumatic operation enables the valve to be incorporated into suitable automated process systems for remote opening and closing.

PTFE Seating and Material Flexibility

PTFE is specified as the seat material for this valve, providing a low-friction seating surface suitable for compatible process conditions. The listed material options include SS 304, SS 316 and WCB, allowing the valve configuration to be considered for different industrial requirements. Final material selection should be based on the actual media, temperature, pressure and chemical compatibility of the installation.

Key Features of the SVI Configuration

• 1-inch floating ball valve design.
• Full-bore flow passage for the specified configuration.
• Class 150 / 150# pressure class.
• Pneumatic operation for automated valve movement.
• Three-piece construction for practical servicing.
• Extended shaft arrangement for flexible actuator positioning.
• PTFE seat material for the specified sealing configuration.
• Stainless-steel body construction with SS 304, SS 316 and WCB material options.
• Flanged end connection.
• Specified maximum pressure of 32 Kg for body and 22 Kg for seat.

Industrial Uses for Automated On-Off Control

This valve can be considered for compatible industrial flow-isolation duties involving suitable liquids and gases. Its pneumatic actuator arrangement makes it relevant to process lines where automated on-off operation is preferred, while the full-bore floating-ball design supports applications where an unrestricted flow passage is desirable.

Selection should be confirmed against actual operating pressure, temperature, process media, flange requirements, actuator specifications and installation conditions before ordering.

Engineered for Requirements in Ahmedabad and Gujarat

Shiv Valves Industries, established in 2022, manufactures the SVI range of industrial valve solutions in India. The Pneumatic 3 Pc. Design Extended Shaft Floating Ball Valve is offered as a 1-inch Class 150 configuration with a minimum specification based on the requirements provided.

For enquiries in Ahmedabad, Gujarat, provide your required quantity, media, pressure, temperature, pipeline details and actuator requirements. Our team can assist with the applicable technical configuration and quotation for your pneumatic floating ball valve requirement.
