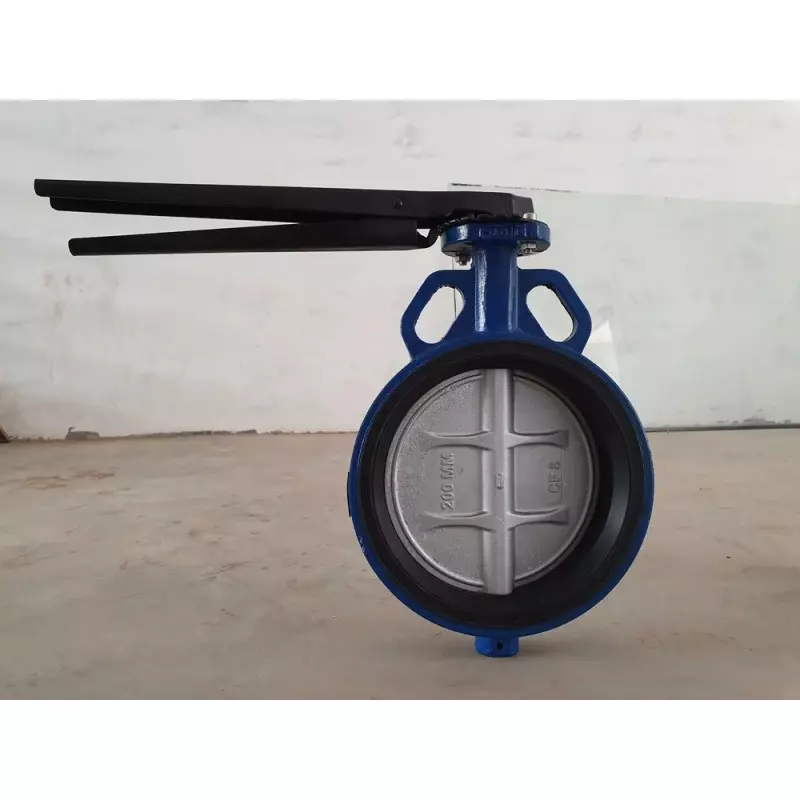

Cement Application Butterfly Valve
Cement Application Butterfly Valve Details
In cement-handling environments, valve selection is closely connected with reliable isolation, compact installation, and convenient manual operation. Our Cement Application Butterfly Valve is configured for industrial flow-control requirements with a cast iron body, stainless steel CF8 disc, EPDM sealing, and wafer-type construction. The 200 mm (8 inch) specification is designed for applications involving water and air, while its PN16 rating and 120°C maximum temperature provide defined operating parameters for suitable installations.
Industrial Flow Control in a Compact Configuration
This butterfly valve uses a quarter-turn operating principle in which the disc rotates within the body to control passage through the pipeline. Its wafer-type design allows installation between flanges, helping reduce overall space requirements. The lever-operated arrangement provides direct local control without requiring pneumatic or electrical power, making it practical for manually operated industrial systems.
| Valve Size | 200 mm (8 inch) |
| Body Material | Cast Iron (CI) |
| Disc Material | Stainless Steel (CF8) |
| Seat / Seal Material | EPDM |
| End Connection | Wafer Type |
| Operation | Lever Operated |
| Automation Grade | Manual |
| Pressure Rating | PN 16 |
| Maximum Temperature | 120°C |
| Application | Water / Air |
| Design Standard | API 609 |
Material Selection for Demanding Plant Conditions
The cast iron body provides structural strength for the valve assembly, while the CF8 stainless steel disc offers a durable flow-control component. EPDM is used for the seat and sealing arrangement, supporting effective shut-off in compatible water and air services. The stated material configuration is intended to provide a balanced combination of mechanical strength, sealing performance, and practical serviceability.
Wafer Type Design for Easier Piping Integration
For industrial piping layouts, installation space can be an important consideration. The wafer-type body is positioned between pipeline flanges, creating a compact connection arrangement. This configuration can be advantageous in plant utility lines and other systems where valve dimensions need to remain controlled. The lever mechanism allows operators to perform local open-close functions efficiently.
- 200 mm (8 inch) specified valve size
- Cast iron body construction
- Stainless steel CF8 disc
- EPDM seat and sealing material
- Wafer-type end configuration
- Manual lever operation
- PN16 pressure rating
- Maximum specified temperature of 120°C
- Suitable for water and air applications
- API 609 design reference
Specified for Water and Air Services
Although identified for cement application requirements, the supplied technical specifications define water and air as the applicable media. Therefore, the valve can be considered for compatible plant utility systems, process-support lines, and industrial piping where the stated pressure, temperature, material, and media conditions are satisfied. Proper application selection should always account for the actual service environment and operating conditions.
Made for Industrial Procurement from Ahmedabad
Shiv Valves Industries, established in 2022, manufactures industrial valve products from Ahmedabad, Gujarat, with attention to defined specifications and application requirements. Customers searching for a Cement Application Butterfly Valve in Ahmedabad can enquire for the 200 mm configuration, with a minimum order quantity of one piece. The product is supplied as a manual, lever-operated wafer-type butterfly valve.
For availability, pricing, technical details, quantity requirements, or project-specific enquiries for the Cement Application Butterfly Valve, contact Shiv Valves Industries in Ahmedabad, Gujarat.
