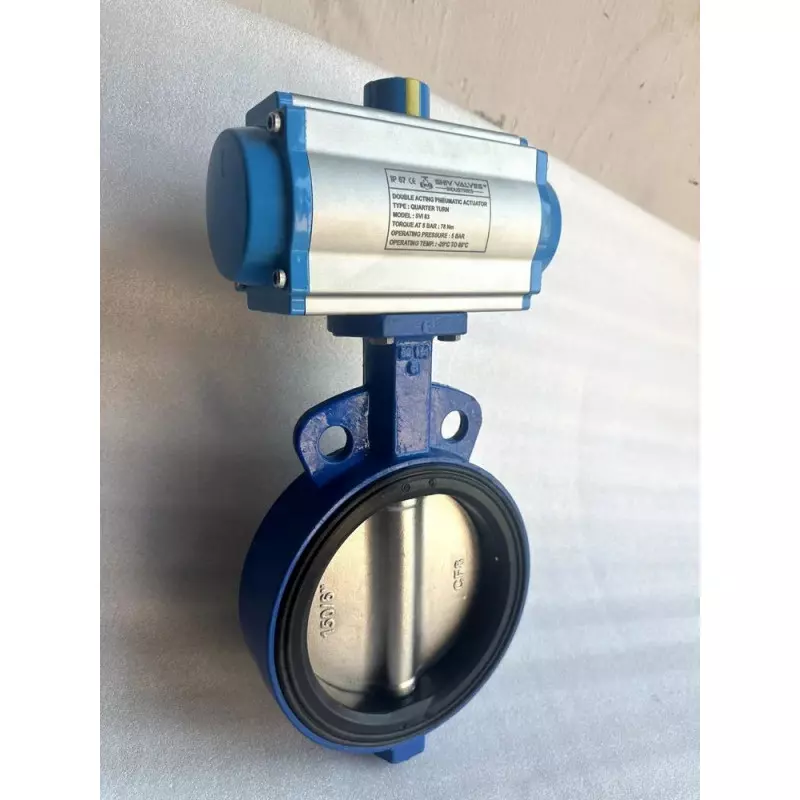

6 Pneumatic Actuator Operated Butterfly Valve

When a 6-inch pipeline requires dependable automated isolation with quick quarter-turn operation, the right actuator-valve combination can make a significant difference to overall system control. Our 6 Pneumatic Actuator Operated Butterfly Valve is engineered as a compact, air-operated flow-control solution for industrial piping installations where responsive operation and practical maintenance are important. Manufactured by Shiv Valves Industries in Ahmedabad, Gujarat, this valve combines a cast iron body, EPDM seat and double-acting pneumatic actuator in a wafer-end configuration.

Compact Automation for 150 mm Industrial Pipelines

Designed for a 150 mm (6-inch) line size, this pneumatic butterfly valve uses rotary disc movement to provide efficient opening and closing of the pipeline. Its wafer connection helps maintain a compact installation profile between mating flanges, making it suitable where available space around the pipeline is limited.

Double-Acting Pneumatic Performance

The double-acting actuator uses compressed air for both opening and closing movements. This arrangement provides controlled bidirectional actuation and is particularly useful for applications involving repeated valve cycling. The supplied solenoid valve enables pneumatic control from an appropriate automated control system, reducing the need for direct manual intervention.

• Fast quarter-turn valve operation
• Double-acting pneumatic movement for opening and closing
• 4–6 bar air supply requirement
• EPDM seating for reliable sealing in suitable service conditions
• Wafer connection for space-efficient pipeline installation
• PN10 pressure rating
• Solenoid valve arrangement for automated control

Built for Practical Industrial Flow Management

The cast iron valve body provides a robust foundation for industrial service, while the rotating disc arrangement allows the pipeline to be opened or isolated through a 90-degree operating movement. The EPDM seat supports tight shut-off performance when correctly selected for the process medium and operating conditions. Together with pneumatic actuation, the design offers a practical alternative to manually operated flow isolation where centralized or remote operation is preferred.

Suitable Installation and Service Areas

This 6-inch pneumatic actuator operated butterfly valve can be considered for industrial piping systems requiring automated on-off flow control, including water-handling installations, utility lines, HVAC-related services and general process applications. Selection should always account for the actual medium, temperature, pressure, flange arrangement and compatibility of EPDM with the process fluid.

With its 150 mm size, wafer-end construction, PN10 rating and double-acting pneumatic actuator, this valve is suited to projects across Ahmedabad and Gujarat where compact automated pipeline control is required. Shiv Valves Industries, established in 2022, manufactures valve solutions with attention to application requirements and consistent quality standards.

For enquiries regarding the 6-inch pneumatic actuator operated butterfly valve, specifications, availability or application suitability, contact Shiv Valves Industries in Ahmedabad, Gujarat. Share your pipeline size and service requirements with our team to discuss the appropriate valve configuration for your installation.
