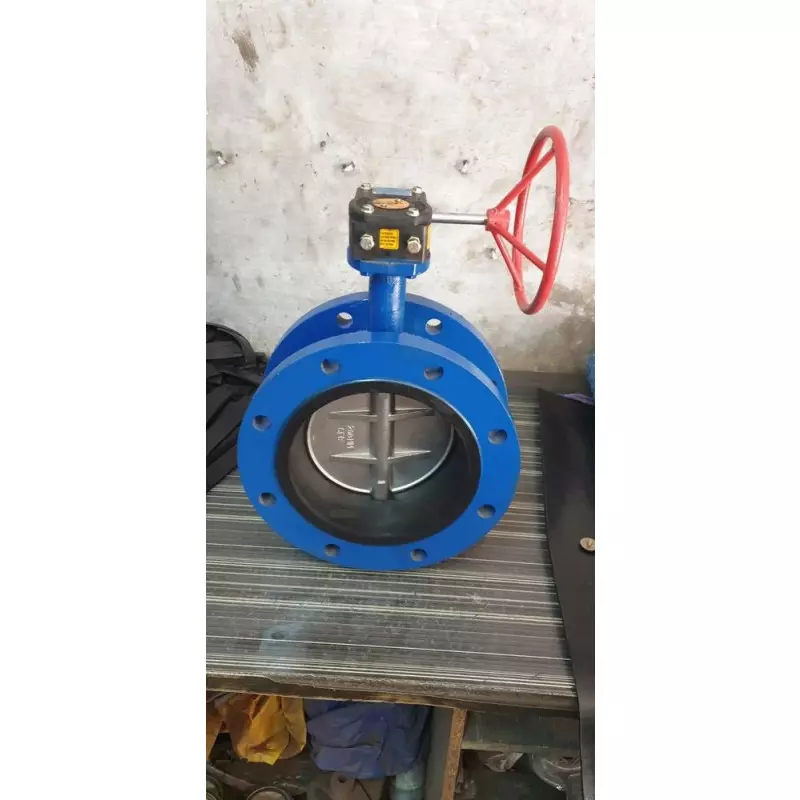

Rubber Lined Wafer Type Double Flange Butterfly Valve
Rubber Lined Wafer Type Double Flange Butterfly Valve Details
Every industrial pipeline needs a valve that can maintain proper sealing while allowing smooth flow control during regular operation. Our Rubber Lined Wafer Type Double Flange Butterfly Valve is manufactured for applications where dependable shut-off, low operating effort, and long service life are important. Suitable for water handling and general industrial process lines, this valve combines a strong body with a rubber-lined sealing arrangement to deliver reliable performance. We supply these valves to industries across Ahmedabad, Gujarat, and different regions of India.
We manufacture Rubber Lined Wafer Type Double Flange Butterfly Valves in different material combinations such as WCB, Cast Iron, SS304, and SS316 to meet varied industrial requirements. Depending on the operating condition, suitable pressure ratings and body material options can also be offered.
Engineered for Efficient Flow Regulation
This valve is designed with a gear-operated mechanism that provides smooth opening and closing even in larger pipeline sizes. The rubber-lined sealing arrangement with an EPDM seat helps reduce leakage while maintaining reliable shut-off during repeated operation. Its robust body construction allows stable performance in industrial environments where consistent flow control is required.
The valve follows ANSI B16.5 flange standards, making installation simple in compatible piping systems. With pressure ratings available in PN10 and PN16 configurations, it can be selected according to different project requirements.
Technical Specifications
| Specification | Details |
|---|---|
| Product | Rubber Lined Wafer Type Double Flange Butterfly Valve |
| Size | 200 mm (8 Inch) |
| Body Material | Cast Iron |
| Available Material | WCB / CI / SS304 / SS316 |
| Seat Material | EPDM |
| Operation | Gear Operated |
| Automation Grade | Manual |
| Pressure Rating | PN10 / PN16 |
| End Connection | Flange End |
| Flange Standard | ANSI B16.5 |
| Country of Origin | Made in India |
Product Features
- Heavy-duty gear operation for smooth valve movement.
- EPDM rubber lining provides dependable sealing.
- Available in WCB, CI, SS304, and SS316 material options.
- Designed according to ANSI B16.5 flange standard.
- Suitable for PN10 and PN16 pressure applications.
- Rigid construction for continuous industrial service.
- Easy installation with flange end connection.
Suitable Industrial Applications
This valve is commonly used in water treatment plants, water distribution networks, cooling water systems, utility pipelines, irrigation projects, process industries, chemical plants handling suitable media, HVAC systems, and several industrial fluid control applications. The gear-operated design provides better control where larger valves require smooth manual operation.
Construction and Performance
The valve is manufactured with a durable cast iron body and a rubber-lined EPDM seat that creates effective sealing during operation. The gear mechanism allows operators to open or close the valve with controlled movement, reducing operating effort compared to direct lever operation. Material options including WCB, SS304, and SS316 make the valve suitable for different working environments based on application needs.
Dependable Choice for Industrial Pipelines
The combination of strong construction, reliable sealing, and gear-operated control makes this valve suitable for industrial pipelines that require stable performance over long operating periods. Its simple design also supports easier inspection and routine maintenance, helping reduce production interruptions.
If you're looking for a Rubber Lined Wafer Type Double Flange Butterfly Valve for your project, we're ready to assist. Share your valve size, pressure requirement, and application details, and we'll recommend the suitable configuration along with a competitive quotation.
