DN50 Motorised Valves

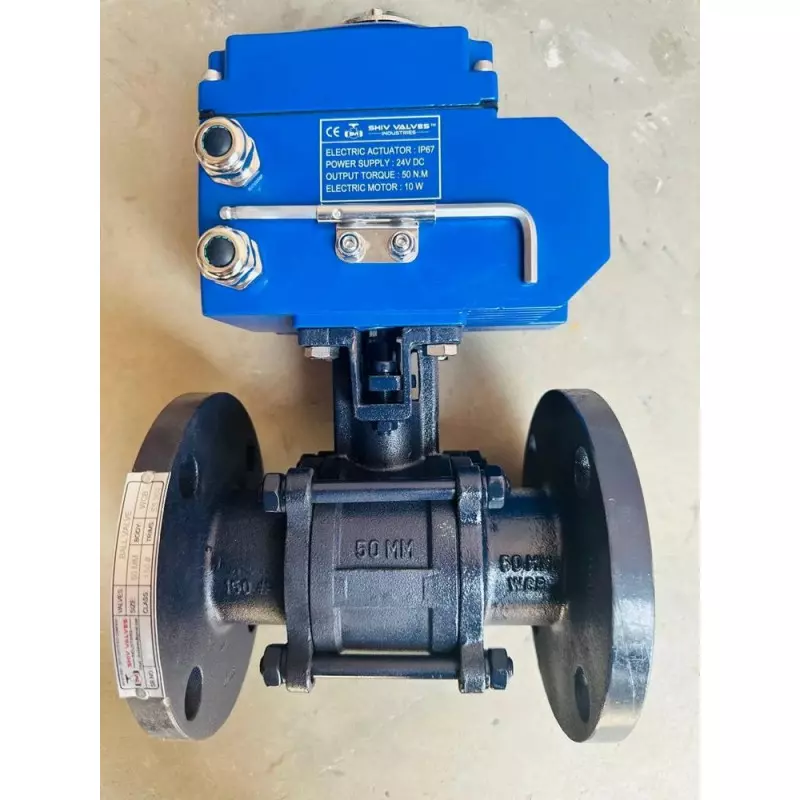

Automated flow isolation becomes much simpler when the valve and actuator are selected as a coordinated assembly. The DN50 Motorised Valve from SVI Make combines a 50 mm (2 inch) ball valve with an electric ON/OFF actuator, providing electrically operated control for pipeline service. With a WCB body, PTFE seat, 150# pressure rating and 24V DC power supply, this configuration is designed for applications where remote or automatic open-and-close operation is required.

Compact 2-Inch Ball Valve with Electric Operation

The DN50 configuration uses a ball valve mechanism in which a drilled ball rotates inside the valve body. When the passage through the ball aligns with the pipeline, the valve permits flow. A 90-degree rotation moves the ball into the closed position, restricting the passage. The electric actuator supplies the rotational movement without requiring manual operation at the valve.

Its ON/OFF operating principle makes this valve particularly suitable for systems where the required command is either fully open or fully closed. The 24V DC actuator supply can also be incorporated into compatible low-voltage control arrangements.

Specification Profile

Valve Construction and Operating Advantages

• WCB body: Provides a robust body configuration for the specified industrial service.
• PTFE seat: Provides the sealing interface around the rotating ball.
• Electric actuator: Converts electrical power into rotary valve movement.
• 24V DC supply: Enables operation from a compatible DC control system.
• 150# rating: Defines the pressure-class configuration of the valve.
• Double-flange connection: Provides a flanged arrangement for compatible pipeline installation.
• ON/OFF functionality: Provides clearly defined open and closed operating positions.

Designed Around Automated Process Control

A motorised valve can reduce the need for operators to approach individual valves during routine operation. An electrical command energizes the actuator, which drives the ball to the required position. Suitable actuator configurations can incorporate position indication or feedback, allowing the operating status to be monitored from a compatible control arrangement.

The DN50 size is particularly useful for smaller process and utility pipelines where automated isolation is required without selecting a larger valve assembly. The ball mechanism also provides a direct flow passage when open, making the configuration appropriate for a range of compatible fluid-handling duties.

Media and Application Considerations

The specified DN50 Motorised Valve can be used with water, oil, hot water, steam, chilled water, chemical media and air, subject to verifying material compatibility and actual operating conditions. It can be considered for industrial utility lines, water circulation, HVAC services, process piping and automated isolation points.

For DN50 Motorised Valve requirements in Ahmedabad, Gujarat, Shiv Valves Industries offers SVI Make configurations based on the specified valve construction and actuator arrangement. When enquiring, provide the medium, operating pressure, temperature, required electrical supply and pipeline connection details so the appropriate valve configuration can be evaluated.
