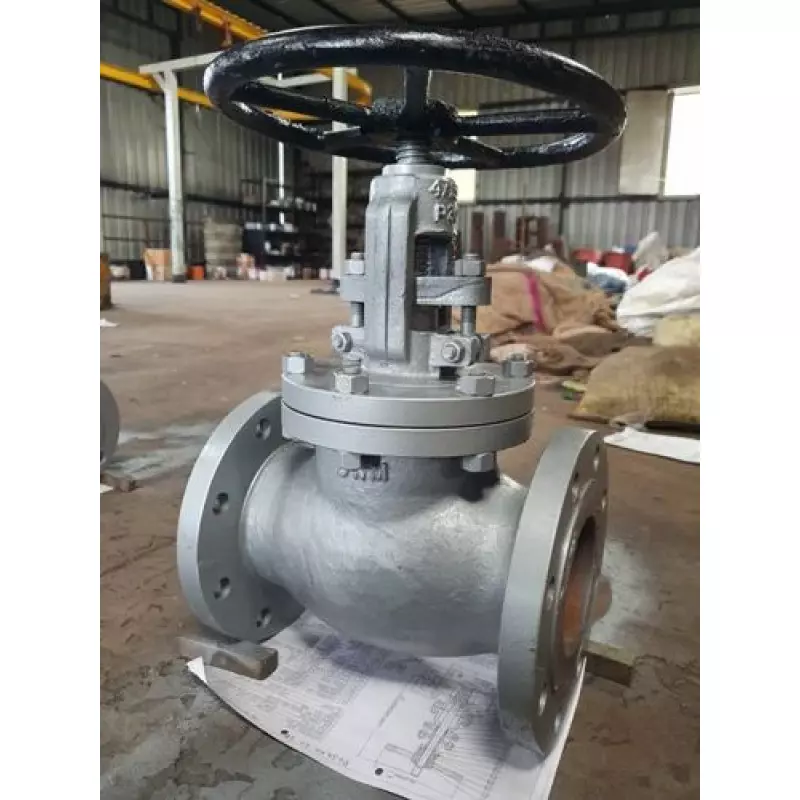

Cast Steel Globe Valve

AvailabilityIn Stock
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Cast Steel Globe Valve Details

Port Size100 mm
Pressure Rating150 Class
End ConnectionFlanged
Valve Size4 inch
Body Material GradeWCB
MediaHot Air / Hot Water / Gas
OperationHandwheel
Usage/ApplicationIndustrial
Body MaterialWCB
Seat TypeMetal Seated
Bonnet TypeBolted Bonnet
Connection TypeFlange End
Valve TypeGlobe
Driving ModeManual
ColorSilver
Ambient Temperature60 Degree C
Country of OriginMade in India
SVI MAKE
How it worksA Globe valve works by moving a plug or disc element towards or away from a stationary ring seat within the valve body.
  • Opening/Closing: The disc is attached to a stem, which is operated either manually using a handwheel or automatically via an actuator (electric, pneumatic, or hydraulic). Turning the handwheel or activating the actuator causes the stem to move linearly, raising or lowering the disc.
  • Flow Regulation: As the disc moves closer to the seat, it restricts the flow path, thus regulating the flow rate. When the disc is fully lowered against the seat, the valve is closed, stopping the flow completely.
Key features and advantages
  • Precise Flow Control (Throttling): Globe valves excel at regulating flow with accuracy and consistency, making them ideal for applications requiring fine adjustments to flow rate or pressure.
  • Reliable Shut-off: They provide a tight seal when closed, crucial for stopping flow during maintenance or emergencies.
  • Ease of Maintenance: Globe valves are designed for easy maintenance, as the disc and seat can often be accessed and replaced or resurfaced relatively quickly and easily.
  • Durability: Made from robust materials like cast carbon steel, stainless steel, and others, they can withstand high pressures and temperatures.
  • Versatility: They are adaptable for both throttling and on/off applications. They can handle various fluids including liquids, gases, and steam.
Disadvantages
  • High Pressure Drop: The design, forcing the fluid to change direction, results in a significantly higher pressure drop compared to straight-through valves like gate valves.
  • Higher Operating Force/Actuator Size: Due to the pressure acting on the disc, a larger force or actuator might be needed to operate a globe valve, especially under high pressures.
  • Not Ideal for Slurries: The internal baffle and flow path can hinder the flow of viscous fluids or slurries with particulate matter, making them prone to clogging or damage.
Types based on body design
  • Z-Type (Standard Pattern): This is the most common design, characterized by a Z-shaped flow path. It offers precise throttling but has the highest pressure drop.
  • Y-Type: Offers a straighter flow path and less pressure drop compared to the Z-type. It is well-suited for high-pressure and critical services.
  • Angle Type: Has inlet and outlet ports at a 90-degree angle, combining the function of a valve and an elbow. It reduces piping joints and flow resistance.
ApplicationsGlobe valves are used in various industries for applications requiring flow regulation and control. Common examples include:
  • Cooling water systems.
  • Fuel oil systems.
  • Feedwater and chemical feed systems.
  • Boiler vents and drains.
  • Turbine lube oil systems.
  • Process control in chemical processing plants.
  • Water treatment plants.
  • High-point vents and low-point drains where leak tightness is important.
