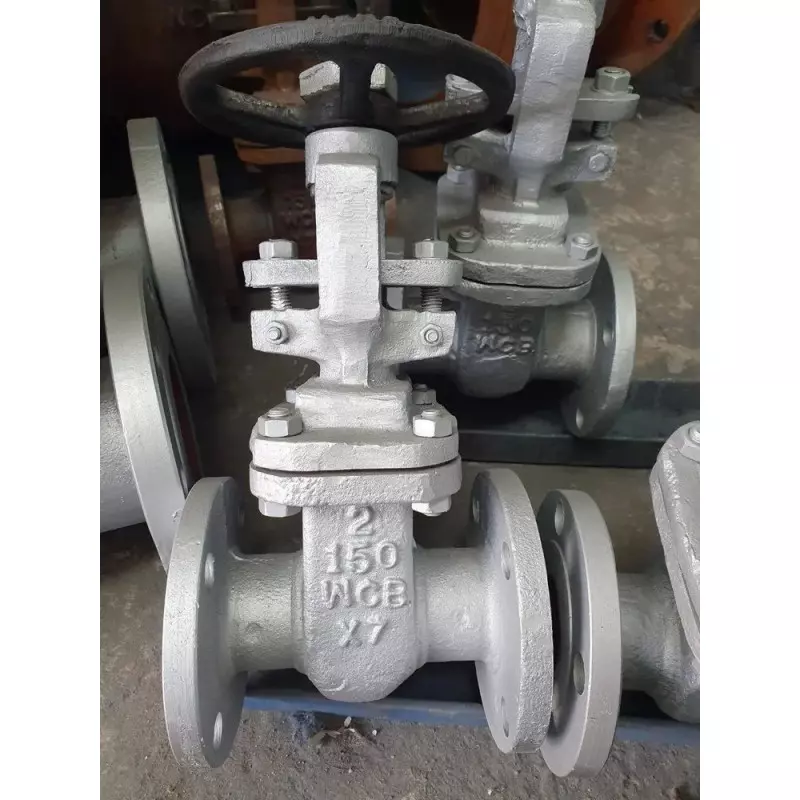

Cast Steel Gate Valve

For pipeline systems where dependable isolation, robust construction and controlled manual operation are essential, the right gate valve forms an important part of the process line. The Cast Steel Gate Valve from SVI is configured with a cast steel body, metal-seated arrangement and rising stem, providing a conventional industrial solution for water service. Its 50 mm size, Class 150 pressure rating and flanged ends make it suitable for compatible medium- and high-temperature piping installations.

Designed for Firm and Reliable Line Isolation

A gate valve operates by moving its gate vertically within the body, allowing the passage to be opened or closed. The SVI Cast Steel Gate Valve uses a rising stem and handwheel arrangement, giving the operator a direct mechanical method of controlling the valve position. It is intended primarily for isolation rather than continuous throttling, making it appropriate where the pipeline needs a defined open or closed condition.

The cast steel construction provides a sturdy body configuration, while the metal-seated design is suited to the stated medium- and high-temperature service conditions. The flanged connection provides a conventional installation arrangement for compatible pipelines.

Technical Specification at a Glance

Important Construction Features

• Cast steel WCB body: Provides a robust construction for the specified industrial service.
• Class 150 configuration: Designed around a commonly used pressure-class arrangement for compatible piping systems.
• Rising stem: Provides visible stem movement as the valve is operated, helping indicate valve position.
• Metal seat: Provides a durable seating arrangement for the specified service conditions.
• Flanged ends: Allow connection with suitably matched flanges in the pipeline.
• Handwheel operation: Enables direct manual control without requiring an external power source.

Where the 50 mm Configuration Fits

This 50 mm Cast Steel Gate Valve is specified for water service and can be considered for industrial utility and process piping where the operating conditions remain within the valve's specified pressure, temperature and material limits. Its medium- and high-temperature capability makes proper application assessment particularly important before installation.

Isolation-Focused Valve Performance

The gate mechanism is intended to provide a relatively unobstructed passage when fully open, while closing the gate across the flow path for isolation. The valve should generally be operated in its intended open or closed positions rather than used as a continuous throttling device. The handwheel and rising-stem arrangement provide a straightforward operating method for manually controlled pipeline sections.

Shiv Valves Industries, established in 2022, supplies SVI Make industrial valve solutions from Ahmedabad, Gujarat. This Cast Steel Gate Valve is offered as a Made in India configuration with WCB material, 150 Class rating, flanged ends and metal seating.

For Cast Steel Gate Valve requirements in Ahmedabad, Gujarat, provide your line size, media, pressure, temperature and connection details to Shiv Valves Industries for suitable product selection and supply guidance.
