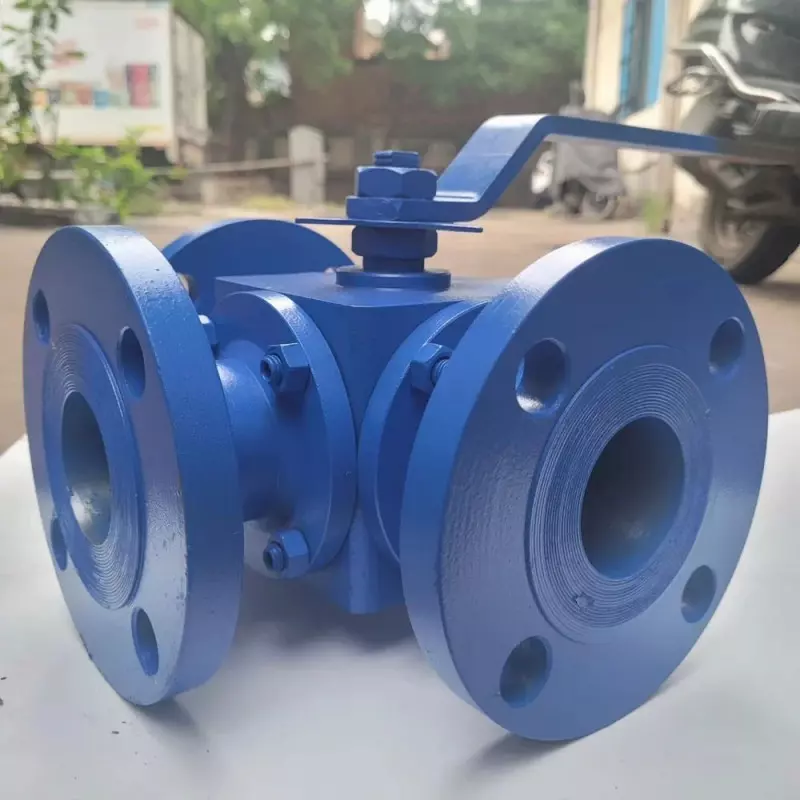

3 Way Ball Valve

When a piping system needs to redirect water without creating a complicated network of separate valves, a three-port ball valve provides a compact and practical flow-routing arrangement. Our 3 Way Ball Valve is designed with an L-port flow pattern to select or divert flow between connected pipelines. Manufactured in Ahmedabad, Gujarat, the SVI MAKE valve combines a carbon-steel body, PTFE seating and flanged-end construction for specified low-pressure water-service applications.

Purpose-Built for Three-Port Flow Routing

The defining feature of this valve is its three-port configuration. Inside the body, a specially drilled ball rotates to establish the required flow passage. The L-port design is particularly suited to diverting applications, allowing flow from a common connection to be directed toward a selected outlet or enabling a suitable inlet to be connected to the common outlet. A lever-operated arrangement makes manual positioning straightforward for applications where frequent automated control is not required.

L-Port Geometry for Selective Distribution

An L-port ball arrangement is useful where the process requires directional switching rather than simultaneous connection of all three ports. Rotating the lever changes the ball position and consequently changes the available flow route. This makes the valve suitable for water distribution arrangements, line selection and process sections where flow must be redirected between two alternative paths.

Engineering Features for Practical Installation

• Three-port construction for versatile directional flow control.
• L-port flow pattern suited to diverting and line-selection duties.
• 3-inch valve and port size for the specified configuration.
• Carbon-steel body construction with mild-steel material specification.
• PTFE seat material for the stated service.
• Flanged-end connection for compatible pipeline systems.
• Manual lever operation for direct control.
• Class 150 pressure rating and 150 WOG rating as specified.
• Suitable for low-pressure, low-temperature water applications.

Applications Across Water Flow Systems

This 3 Way Ball Valve can be considered for industrial water distribution, process-water routing, utility pipelines, fluid-selection arrangements and compatible plumbing or irrigation systems. Its three-port configuration can reduce the need for multiple conventional isolation points where a suitable directional flow arrangement is required.

Available Sizes for Project Requirements

Along with the specified 3-inch configuration, the offered range is stated from 25 mm to 200 mm, allowing selection according to pipeline requirements. Application conditions, port arrangement, pressure, temperature and connection dimensions should be confirmed before final selection to ensure the valve configuration matches the intended service.

For 3 Way Ball Valve requirements in Ahmedabad, Gujarat and across India, share your required size, piping connection, pressure, media and flow-routing arrangement with us. Our SVI MAKE valve range can be evaluated against your application requirements and project specifications.
