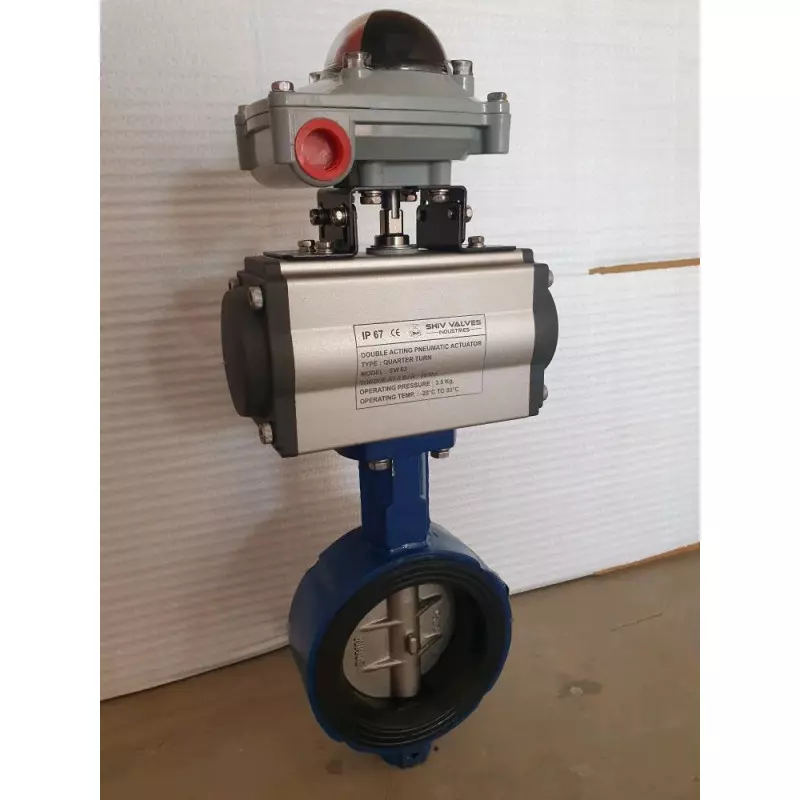

Pneumatic Actuator Butterfly Valve

When water flow needs to be controlled automatically, a dependable combination of valve construction and pneumatic actuation can make pipeline operation faster and more consistent. Our Pneumatic Actuator Butterfly Valve is designed for automated water-flow applications, combining a double-acting pneumatic actuator with a wafer-end butterfly valve arrangement. Manufactured under the SVI make by Shiv Valves Industries, Ahmedabad, this valve is configured for industrial systems requiring pneumatic operation, reliable positioning and practical installation.

Engineered for Automated Water Flow Management

This pneumatic actuator butterfly valve uses compressed air to generate the rotary movement required to operate the valve disc. The double-acting actuator provides pneumatic force in both opening and closing directions, making it suitable for repeated automated operation. Its wafer-end configuration keeps the assembly compact and convenient for installation between compatible pipeline flanges.

Double-Acting Pneumatic Performance

The pneumatic actuator converts compressed-air energy into rotary torque and transfers that movement to the butterfly valve shaft. Unlike a manually operated arrangement, pneumatic actuation enables the valve to be incorporated into automated process sequences. Air is supplied to the actuator to move the disc toward the required operating position, while the opposite air circuit drives the return movement.

• Automatic operation through a double-acting pneumatic actuator
• Wafer-end construction for compact pipeline installation
• PN16 pressure rating for specified service conditions
• SS 304 disc construction for the stated application
• SS 410 / SS 304 shaft options as specified
• EPDM sleeve for sealing
• Solenoid valve and limit/proximity switch box accessories

Control Accessories for Automated Systems

The valve can be configured with a solenoid valve for pneumatic control and a limit / proximity switch box for suitable position indication. These accessories help connect the valve assembly with automated control arrangements, allowing operators or control systems to monitor and command valve movement according to the installation requirements.

Suitable for Water Pipeline Applications

With water specified as the intended media, this pneumatic actuator butterfly valve is suited to appropriate water-handling and industrial pipeline applications where automated isolation or flow management is required. The compact wafer connection can be advantageous where installation space is limited, while the butterfly disc provides quarter-turn movement for efficient operation.

Shiv Valves Industries was established in 2022 and manufactures SVI make valve solutions from Ahmedabad, Gujarat. This Pneumatic Actuator Butterfly Valve is supplied as a new product and can be considered for projects requiring automatic pneumatic operation with the specified pressure class and accessories.

For enquiries regarding the Pneumatic Actuator Butterfly Valve, specifications, availability or accessory configuration, contact Shiv Valves Industries in Ahmedabad, Gujarat. Provide your pipeline requirements, operating pressure and automation needs to discuss a suitable valve arrangement for your application.
