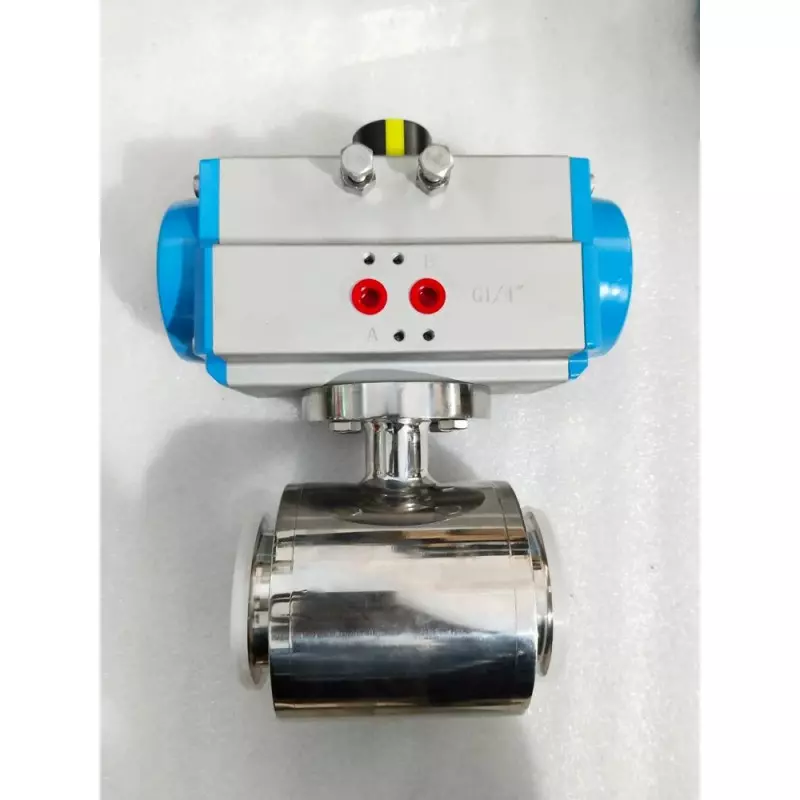

Pneumatic 3 Pc. TC Ends Floating Ball Valve

Clean process connections and dependable automated isolation are especially important where piping forms part of a pharmaceutical production environment. Our Pneumatic 3 Pc. TC Ends Floating Ball Valve is designed around these requirements, combining a stainless steel floating-ball construction with full-bore flow, tri-clamp (TC) ends and pneumatic operation. Manufactured in Ahmedabad, Gujarat, this compact valve is specified for pharmaceutical applications requiring hygienic-style connections and controlled automated operation.

Designed Around Compact Process Piping

The three-piece construction provides a practical arrangement for servicing and inspection, while the floating ball mechanism supports effective seating as line pressure acts on the ball. Its full-bore passage helps maintain an unobstructed flow path when the valve is open. Pneumatic actuation provides repeatable operation, making the valve suitable for automated process sequences where frequent manual handling is not preferred.

Features Supporting Automated Process Control

• Floating ball construction: The ball is designed to move toward the downstream seat under pressure, supporting positive sealing.
• Three-piece design: Provides a service-friendly construction for suitable maintenance environments.
• TC ends: Tri-clamp connections are suited to compatible process piping where convenient assembly and disassembly are required.
• SS 304 / SS 316 options: Stainless steel construction provides durability for the specified pharmaceutical application.
• Full-bore passage: Helps provide a direct flow path when the valve is fully open.
• Pneumatic operation: Enables quick and repeatable automated valve movement.
• PTFE seat: Provides a low-friction seating interface for dependable shut-off performance.
• Fire-safe specification: Supplied with a stated fire-safe feature as part of the product specification.

Focused on Pharmaceutical Process Requirements

The combination of stainless steel construction and TC-end connectivity makes this valve particularly relevant to pharmaceutical process piping where hygienic-oriented connection arrangements are important. Its compact 1/2-inch valve size and 1-inch stated port size should be evaluated against the actual pipeline design before selection.

Defined Performance Parameters

Rated at Class 150 with a specified operating temperature of up to 100 °C, the valve provides clear parameters for application planning. The actual operating pressure, temperature, fluid characteristics and connection dimensions should be checked against the complete system requirements to ensure appropriate selection and safe operation.

As a manufacturer of Pneumatic 3 Pc. TC Ends Floating Ball Valve in Ahmedabad, Gujarat, we offer this specialized configuration for customers seeking automated ball-valve operation with stainless steel construction and TC-end connections. It is a practical choice for suitable pharmaceutical and process applications requiring compact, controlled isolation.

For enquiries in Ahmedabad, Gujarat and across India, contact us with your required quantity, process conditions and connection requirements to discuss specifications, availability and quotation.
