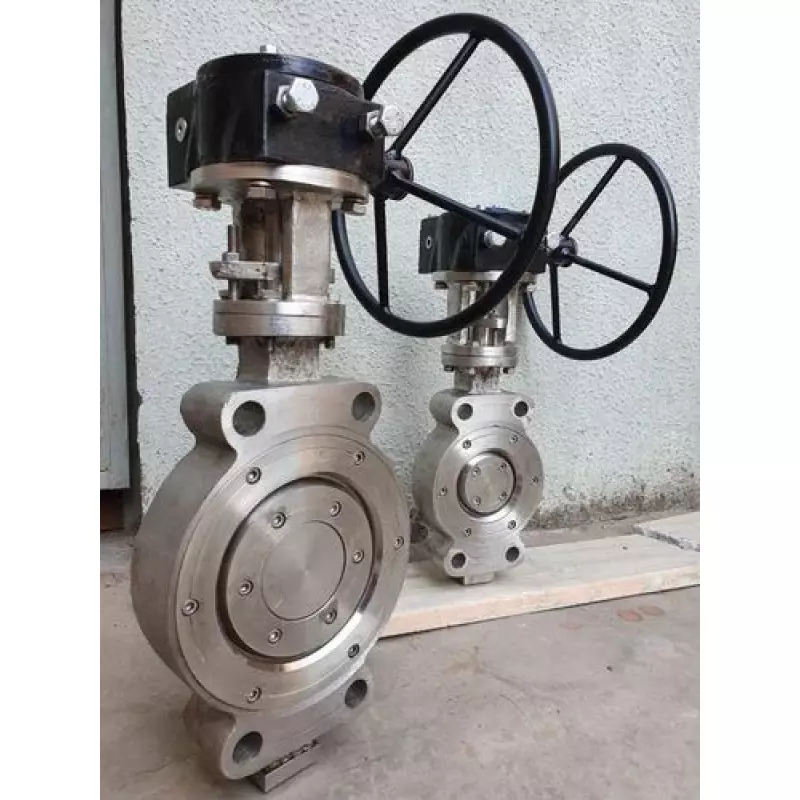

Offset Butterfly Valve

When industrial flow systems face changing temperatures and demanding operating conditions, valve geometry becomes an important part of dependable performance. Our Offset Butterfly Valve in Ahmedabad is engineered around an off-centre disc arrangement that helps reduce seating friction during operation. With a stainless steel body, metal-seated construction, wafer connection and gear operation, this valve is configured for industrial service across a broad temperature range.

Offset Geometry for Smoother Valve Movement

Unlike a conventional concentric butterfly valve, an offset butterfly valve positions the shaft away from the disc centreline. This arrangement allows the disc to move away from the seat as it begins to open, reducing unnecessary rubbing between the sealing surfaces. During closing, the disc approaches the seat in a controlled manner to support effective shut-off. The result is a design intended to reduce wear and operating resistance while providing reliable flow isolation.

Technical Profile of the Valve

Performance Features Built Around Reduced Friction

• Offset disc arrangement: The shaft positioning helps minimize continuous contact between the disc and seat during rotation.
• Metal seating: A metal-seated configuration is suitable for applications where the specified operating conditions demand a robust seating arrangement.
• Stainless steel body: Stainless steel construction provides a durable foundation for industrial valve service.
• Gear operation: The gear mechanism provides controlled manual movement, particularly useful where direct lever operation is not preferred.
• Wafer connection: The compact wafer arrangement is designed for installation between compatible pipe flanges.
• Wide temperature capability: The supplied specification covers temperatures from -29°C to 400°C, subject to complete system design and application conditions.

Where Offset Design Adds Value

The offset configuration can be beneficial in industrial flow-control applications where repeated operation, reduced seating friction and dependable isolation are important. Its characteristics make it appropriate for carefully selected industrial systems involving liquids or gases and applications exposed to relatively high or low temperatures. Correct sizing, pressure compatibility and material selection remain essential for safe and efficient operation.

Application Snapshot

Shiv Valves Industries, established in 2022, manufactures industrial valve solutions in Ahmedabad with attention to application requirements and product specifications. Our Made-in-India Offset Butterfly Valve is offered for industrial requirements in Ahmedabad, Gujarat and other markets where suitable pressure, temperature and piping conditions match the supplied specification.

For technical specifications, quantity requirements or project-specific selection, contact Shiv Valves Industries in Ahmedabad to discuss the appropriate Offset Butterfly Valve configuration for your industrial flow system.
