Triple Eccentric Wafer Type Butterfly Valve Metal Seated

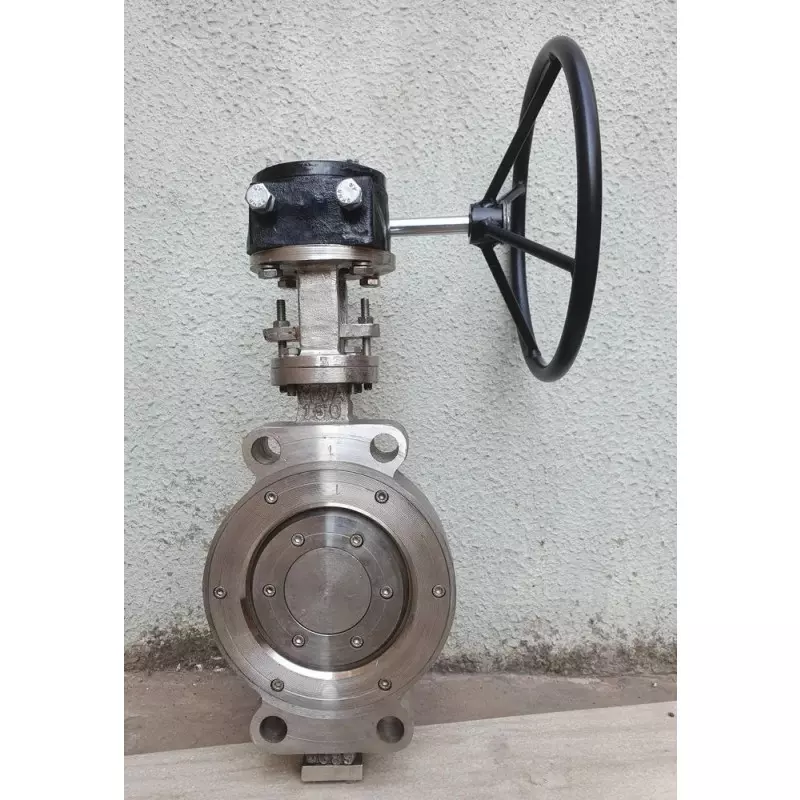

When a valve is expected to provide dependable isolation while operating under demanding service conditions, sealing geometry and material selection become especially important. Our Triple Eccentric Wafer Type Butterfly Valve Metal Seated in Ahmedabad is designed around a triple-offset arrangement that minimizes rubbing between the disc and seat during operation. The supplied 4-inch configuration features a stainless steel body, SS 304 disc, wafer-end connection and manual operation for suitable water-service applications.

Triple-Offset Geometry for Controlled Sealing

The triple-eccentric design adds a third offset to the conventional butterfly-valve arrangement. This geometry allows the disc to move away from the seat during most of its rotation, reducing sliding contact and associated wear. Near the fully closed position, the disc approaches the metal seat through a cam-like movement, helping establish the sealing interface without continuous rubbing. This makes the design well suited to applications where durability and repeatable isolation are important.

Key Product Specifications

Metal-Seated Construction for Robust Service

• Triple eccentric construction: The offset geometry helps minimize disc-to-seat friction throughout the majority of the operating cycle.
• Metal-seated design: A metal seat provides a robust sealing arrangement for suitable industrial isolation duties.
• SS 304 disc: The specified stainless steel disc provides a durable flow-control component for water applications.
• Stainless steel body: The body material provides a strong construction suitable for compatible industrial environments.
• Wafer-end configuration: The compact connection arrangement is intended for installation between compatible pipeline flanges.
• Manual actuation: The specified manual operating arrangement allows straightforward valve positioning without an external power source.

Where the Triple-Eccentric Arrangement Helps

Traditional butterfly valves may experience continuous contact between the disc and sealing surface during rotation. In a triple-eccentric configuration, the disc is designed to lift away from the seat as it opens. This reduces unnecessary rubbing and can contribute to improved service life of the sealing components. The design is particularly relevant where dependable shut-off, controlled movement and reduced seating wear are priorities.

Application Profile

Shiv Valves Industries, established in 2022, manufactures industrial valve solutions in Ahmedabad with a focus on application requirements and consistent product specifications. The SVI Make Triple Eccentric Wafer Type Butterfly Valve is Made in India and is available for suitable water-service and industrial flow-control requirements in Ahmedabad, Gujarat and other markets.

For technical specifications, availability, quantity requirements or application-specific selection, contact Shiv Valves Industries in Ahmedabad to discuss the suitable Triple Eccentric Wafer Type Butterfly Valve Metal Seated configuration for your pipeline system.
