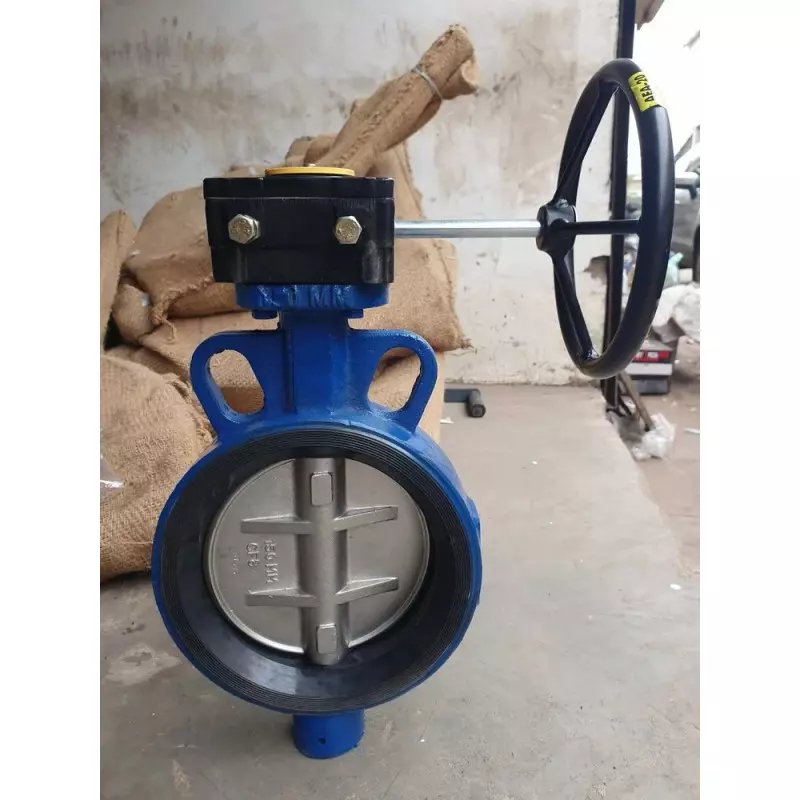

Rubber Lined Wafer Type Butterfly Valve

Reliable flow isolation becomes especially important in water and utility pipelines where dependable sealing, compact installation, and straightforward operation are required. Our Rubber Lined Wafer Type Butterfly Valve is engineered as a practical flow-control solution for industrial piping systems, combining a carbon steel WCB body with an EPDM-lined sealing arrangement and a stainless steel disc. Manufactured in Ahmedabad, Gujarat, this SVI MAKE valve is designed for consistent performance in suitable low-temperature media applications.

Compact Wafer Design for Efficient Piping Layouts

The wafer-type construction allows the valve to be positioned between pipeline flanges without requiring a long face-to-face installation length. Its centric configuration provides a balanced disc movement around the valve centerline, while the rubber-lined sealing arrangement supports dependable shut-off. The 4-inch, 100 mm configuration is particularly suited to installations where space efficiency and controlled isolation are important.

EPDM Lining and Stainless Steel Disc Combination

The EPDM seat and seal provide the principal sealing interface, while the CF8M stainless steel disc offers a robust flow-control element. The SS 410 shaft transfers operating torque to the disc during opening and closing. This material combination makes the valve suitable for specified water and compatible low-temperature service conditions where reliable isolation is required.

Gear Operation for Controlled Manual Isolation

Instead of direct-lever operation, this model uses a gear-operated mechanism to assist controlled movement of the disc. The arrangement is useful where the valve requires deliberate opening and closing with manageable operating effort. As a manually operated valve, it can be used where automatic actuation is not required and the pipeline can be accessed by operating personnel.

• Centric butterfly valve configuration for practical flow isolation
• Compact wafer-end construction for space-conscious pipeline installation
• Carbon steel WCB body for a robust valve structure
• EPDM seat and seal for dependable sealing in compatible service
• CF8M stainless steel disc for durable flow-control operation
• SS 410 shaft for effective torque transmission
• PN 16 pressure rating
• API 609 face-to-face and design reference
• Gear-operated manual configuration

Suitable Pipeline Service

The valve can be considered for compatible water and utility-flow installations where a manually operated wafer butterfly valve is preferred. Its compact construction can be advantageous in industrial piping layouts, water-handling systems, and other applications requiring regular isolation or sectional flow shut-off.

With manufacturing operations based in Ahmedabad, Gujarat, our Rubber Lined Wafer Type Butterfly Valve is available for industrial requirements where the specified 4-inch size, PN 16 rating, EPDM sealing, wafer connection, and gear-operated configuration match the application. Contact us to discuss your pipeline requirements, technical specifications, and valve quantity.
