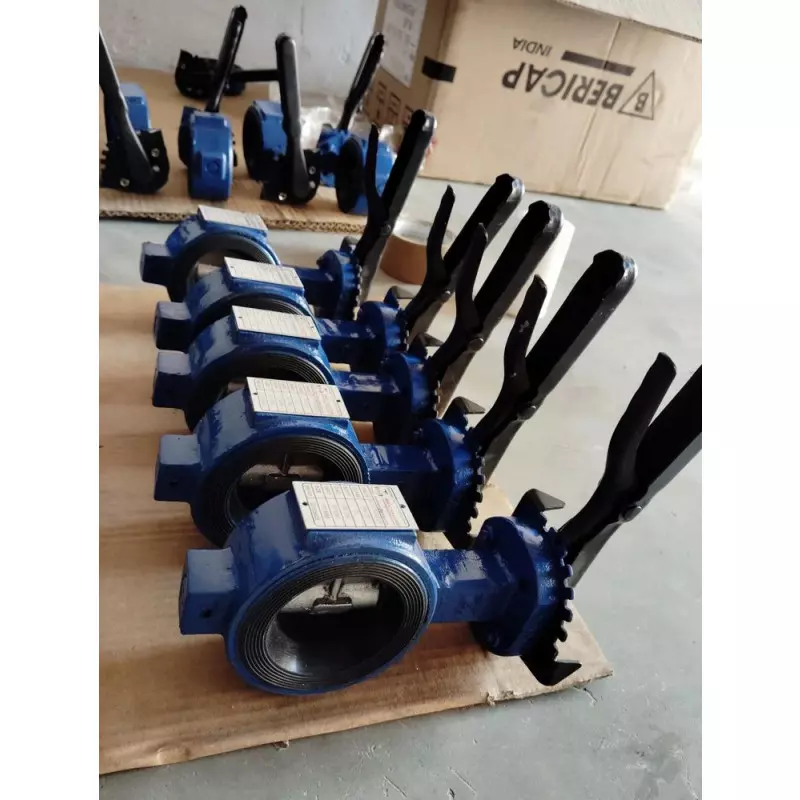

Hand Operated Butterfly Valve

For pipeline systems where operators need direct control without pneumatic or electrical actuation, a dependable lever-operated butterfly valve offers a simple and practical solution. Our Hand Operated Butterfly Valve is designed around this requirement, combining an 80 mm / 3-inch valve size with wafer-end construction, manual lever operation, an EPDM seat and stainless-steel disc. The SVI Model SVIBF is suitable for compatible water and air applications and is manufactured in India for industrial flow-control requirements in Ahmedabad, Gujarat.

Direct Manual Control in a Compact Valve Design

The valve uses a quarter-turn disc mechanism to control the pipeline flow. Moving the lever rotates the disc inside the valve body, allowing the operator to place the valve in the required open or closed position. The wafer connection provides a compact installation arrangement between compatible pipeline flanges, making the design practical where installation space is an important consideration.

Wafer Construction for Efficient Pipeline Installation

The wafer-type configuration is intended for installation between compatible flanges, helping maintain a streamlined valve arrangement within the pipeline. Its compact form can be advantageous in industrial systems where conventional valve arrangements may require more installation space. Proper flange alignment, gasket selection and installation practices should be followed according to the application and pipeline design.

EPDM Seat and Stainless-Steel Disc

An EPDM seat is specified for the valve, providing the sealing interface for the stated service conditions. The stainless-steel disc offers a robust flow-control element, while the available body material options include Cast Iron, WCB, SS 304 and SS 316. Material selection should be matched with the actual process medium, pressure, temperature and compatibility requirements before final selection.

Key Characteristics of the SVIBF Valve

• 80 mm / 3-inch nominal valve size.
• Manual lever-operated quarter-turn mechanism.
• Wafer-type end connection for compact pipeline installation.
• EPDM seat for the specified sealing configuration.
• Stainless-steel disc construction.
• Cast Iron, WCB, SS 304 and SS 316 material options.
• PN10 / PN16 pressure options as specified.
• Suitable for compatible water and air services.
• Rubber lining material specified for the configuration.
• Minimum order quantity: 1 piece.

Where Manual Butterfly Control Fits Best

The Hand Operated Butterfly Valve can be considered for water pipelines, utility networks and compatible air-flow systems where direct operator control is preferred. The lever mechanism is particularly useful at accessible valve points where frequent remote automation is unnecessary and straightforward manual isolation is desired.

Before ordering, the valve should be selected according to pipeline size, media, operating pressure, temperature, flange arrangement and required material compatibility.

Industrial Valve Supply from Ahmedabad

Shiv Valves Industries, established in 2022, manufactures the SVI range of industrial valve solutions. The SVIBF Hand Operated Butterfly Valve is offered as a Made-in-India configuration for industrial requirements, with the stated 80 mm size, wafer connection and manual lever operation.

For enquiries from Ahmedabad, Gujarat and other industrial locations, share your required quantity, pipeline size, media, pressure and preferred material. Our team can provide the applicable specifications and quotation for your Hand Operated Butterfly Valve requirement.
