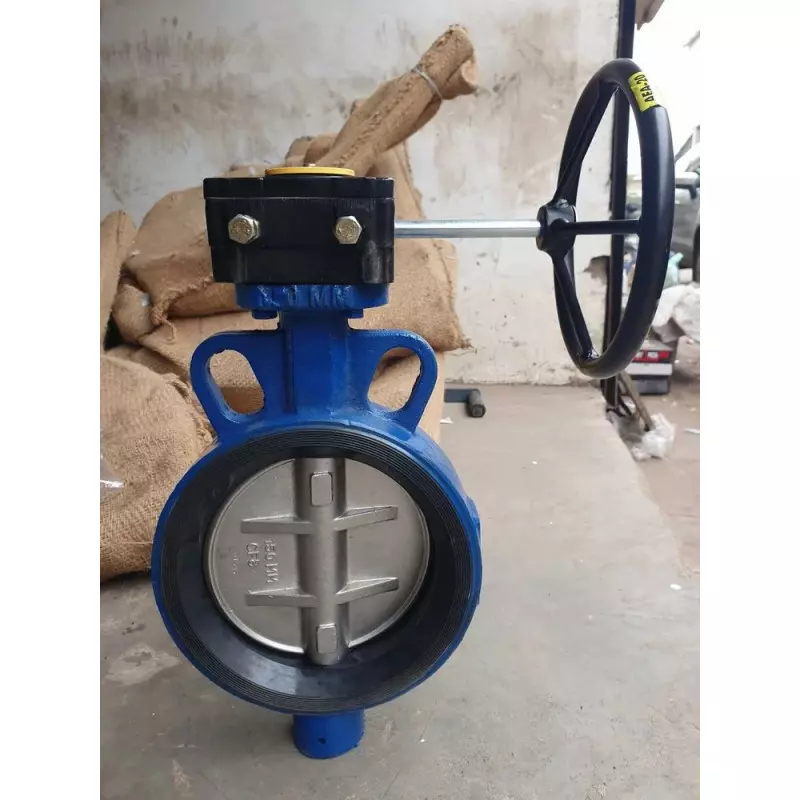

Wafer End Butterfly Valve

When pipeline space is limited and dependable flow isolation is essential, a compact wafer-end design can make installation and maintenance considerably more convenient. Our Wafer End Butterfly Valve range is developed for industrial flow-control requirements where efficient shut-off, practical installation and reliable operation are important. Manufactured by Shiv Valves Industries in Ahmedabad, Gujarat, these butterfly valves are suitable for projects requiring a space-efficient valve arrangement with dependable quarter-turn operation.

Compact Valve Design for Efficient Pipeline Installation

A wafer end butterfly valve is installed between two pipeline flanges, giving the assembly a short face-to-face dimension and a comparatively compact footprint. Its disc rotates around the valve shaft to move between open and closed positions, allowing the operator to isolate or restore flow quickly. This configuration is particularly useful where available installation space is restricted or where a lightweight valve arrangement is preferred.

Purpose-Built Sub-Range for Different Operating Needs

Our wafer-end butterfly valve offering includes configurations suited to different installation and operating requirements. The Rubber Lined Wafer Type Butterfly Valve provides a lined sealing arrangement for applications where dependable shut-off and media compatibility are important. For installations requiring the actuator or operating mechanism to be positioned away from the immediate pipeline area, the Extended Shaft Butterfly Valve configuration can provide greater operating flexibility. The Pneumatic Rubber Lined Wafer Type Butterfly Valve combines the wafer connection and rubber-lined construction with pneumatic actuation for automated quarter-turn operation.

Functional Features for Industrial Flow Control

• Wafer-style construction supports compact installation between pipeline flanges.
• Quarter-turn operation enables quick opening and closing.
• Rubber-lined configuration is available for suitable flow-control applications.
• Extended-shaft configuration can support installations with specific access requirements.
• Pneumatic operation is available for automated valve actuation.
• Compact construction can help reduce space requirements around the pipeline.
• Suitable for integration into industrial flow-control arrangements according to the selected configuration.

Where Wafer Butterfly Valves Fit Into Industrial Systems

These valves can be considered for industrial pipelines where efficient isolation and practical installation are required. Their compact arrangement makes them suitable for systems involving water and other compatible process media, utility lines, treatment installations and general industrial piping. Selection of the lining, shaft arrangement and actuation method can be matched to the specific operating conditions and installation requirements.

Ahmedabad-Made Flow Control for Project Requirements

Shiv Valves Industries manufactures wafer end butterfly valve solutions in Ahmedabad, Gujarat, with attention to application-specific requirements and consistent manufacturing practices. Whether the requirement calls for a standard wafer arrangement, rubber-lined construction, extended shaft configuration or pneumatic rubber-lined operation, the appropriate specification can be selected according to the pipeline and control requirements.

For wafer end butterfly valve requirements in Ahmedabad, Gujarat and across India, contact Shiv Valves Industries to discuss valve size, material, lining, operation and quantity requirements for your application.
