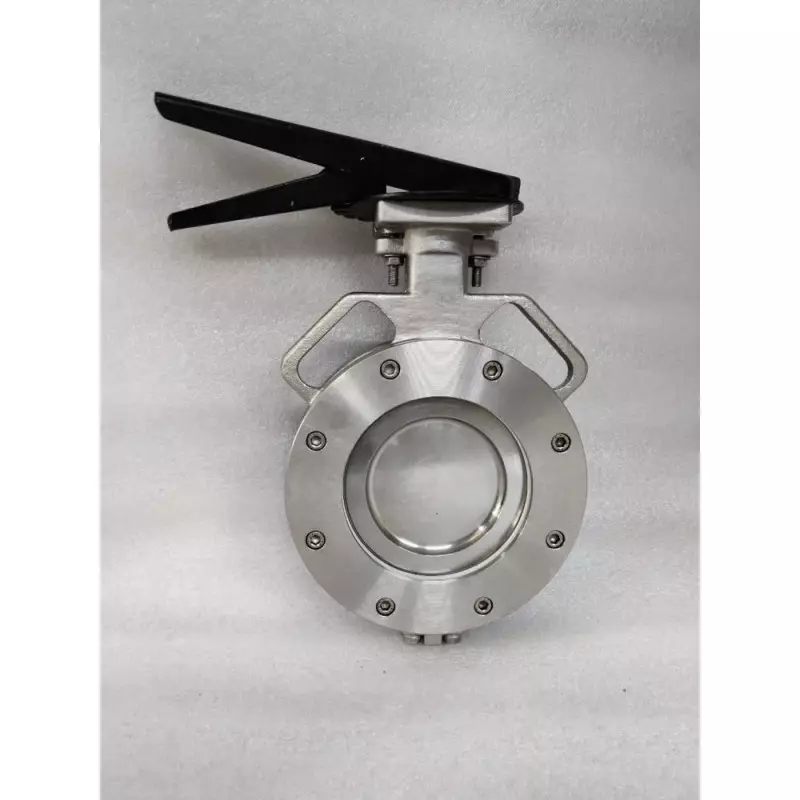

Double Eccentric High Performance Butterfly Valve

Flow-control equipment performs best when valve construction is matched carefully with the demands of the pipeline. Our Double Eccentric High Performance Butterfly Valve in Ahmedabad is designed around a double-offset disc arrangement that helps reduce seating contact during opening and closing. The supplied configuration combines a stainless steel body, SS 316 disc and manual lever operation for water-service applications requiring controlled and dependable flow isolation.

Double Eccentric Geometry for Efficient Operation

The defining characteristic of this butterfly valve is its double-eccentric construction. The shaft is positioned away from the centreline of the valve body and disc, allowing the disc to move away from the sealing surface shortly after opening. This reduces rubbing between the disc and seat, which can help minimize wear and make repeated operation smoother. As the valve approaches the closed position, the eccentric movement brings the disc into the sealing area to support effective shut-off.

Specification Sheet

Engineering Features That Matter in Service

• Double eccentric design: The offset movement helps minimize unnecessary disc-to-seat friction during normal valve travel.
• SS 316 disc: The specified stainless steel disc provides a robust component for water-service applications where material durability is important.
• Stainless steel body: Stainless steel construction provides a durable valve body for suitable industrial environments.
• Manual lever control: Direct lever operation allows the operator to open or close the valve without an external power supply.
• Controlled movement: The eccentric arrangement can reduce operating resistance compared with a conventional concentric configuration.
• Compact butterfly format: The butterfly configuration provides practical flow isolation while keeping the valve arrangement comparatively compact.

Developed for Water-Service Flow Control

For water pipelines where reliable isolation and practical manual operation are required, this 4-inch configuration provides a focused solution. The double-eccentric design is particularly useful where repeated valve movement and reduced sealing-surface contact are desirable. Its low-temperature media specification should be considered alongside the actual operating temperature, pressure, piping arrangement and installation conditions before selection.

Application Characteristics

Shiv Valves Industries, established in 2022, manufactures industrial valve solutions in Ahmedabad with attention to application requirements and product specifications. The SVI Make Double Eccentric High Performance Butterfly Valve is Made in India and is available for suitable water-service and industrial flow-control requirements across Ahmedabad, Gujarat and other locations.

For technical details, availability, quantity requirements or application-specific selection, contact Shiv Valves Industries in Ahmedabad to discuss the appropriate Double Eccentric High Performance Butterfly Valve for your pipeline system.
