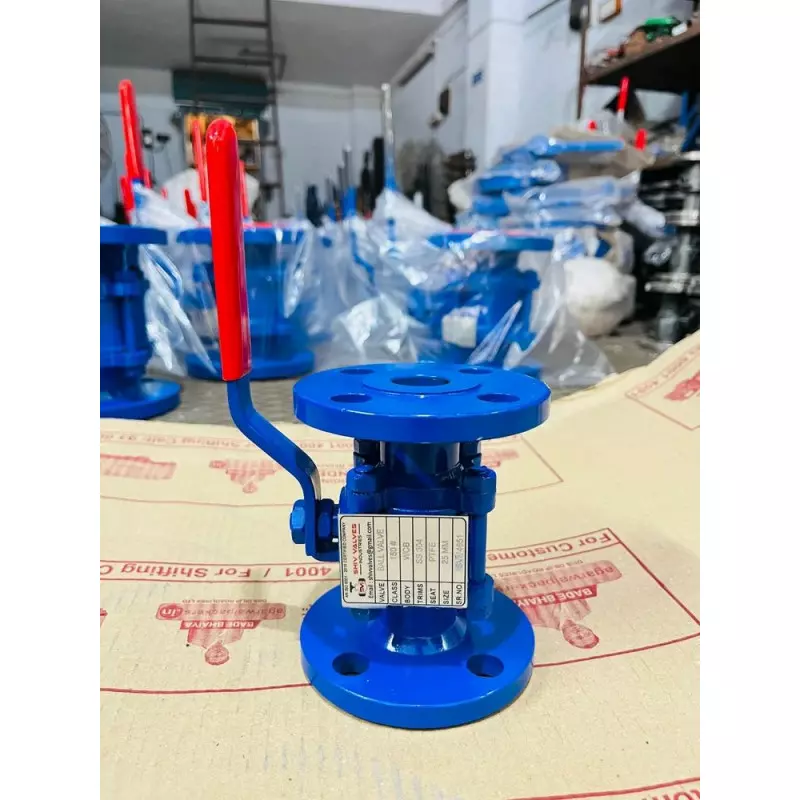

Manual Ball Valve Flanged End
Manual Ball Valve Flanged End Details
| Size | 50 mm (2 inch) |
| Body Material | Carbon Steel (CS) |
| Pressure Class | Class 150 |
| Valve Design | 3-Piece |
| Bore Type | Full Bore |
| Operation | Lever Operated |
| Seat Material | PTFE |
| End Connection Standard | ASME B16.5 |
| Ball Material | Stainless Steel 304 |
A manual ball valve controls pipeline flow using a spherical ball with a bore drilled through its center. The valve is operated by a hand lever or handle, which rotates the ball 90 degrees: when the bore aligns with the pipeline, the valve is open; when perpendicular, the flow is completely shut off. This quarter-turn mechanism provides fast, reliable operation with a tight, leak-proof seal through precision-machined PTFE or EPDM seats.
Types of Manual Ball Valves- Two-Piece Ball Valve: Compact and cost-effective, suitable for general industrial applications with minimal maintenance ( .
- Three-Piece Ball Valve: Allows in-line maintenance without removing the valve from the pipeline, ideal for high-frequency service environments .
- Three-Way Ball Valve (T-Port / L-Port): Used for flow diversion, mixing, or sampling applications, directing flow from one inlet to multiple outlets .
- Flanged Ball Valve: Heavy-duty construction for high-pressure and large-diameter pipelines, available in Class 150, 300, and 600
Manual ball valves are manufactured from stainless steel (SS304/SS316), brass, bronze, carbon steel, and PVC, depending on the application and media compatibility. They can be offered in cast or forged construction with end connections such as flanged, socket weld, or threaded (BSPT/NPT)
ApplicationsManual ball valves are widely used in:
- Water systems and pipelines
- Oil and gas industries
- Chemical and pharmaceutical plants
- HVAC systems
- Fire safety and general industrial process lines
