350MM Pneumatic Actuator Butterfly Valves

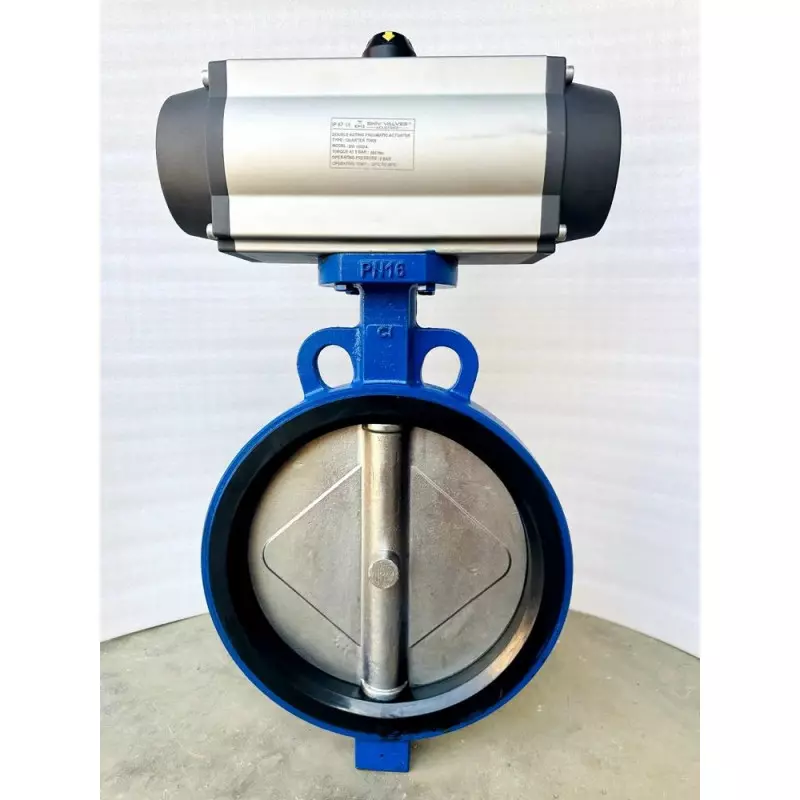

For large-diameter pipelines where dependable automated isolation is required, actuator sizing and valve construction become especially important. Our 350MM Pneumatic Actuator Butterfly Valve is configured with a double-acting pneumatic actuator, cast iron body, wafer-end connection, EPDM seat, and PN16 pressure rating. Manufactured by Shiv Valves Industries in Ahmedabad, Gujarat, this valve is intended for industrial flow-control systems requiring repeatable quarter-turn operation through compressed air.

Large-Diameter Flow Control with Pneumatic Operation

The 350 mm valve combines a butterfly disc mechanism with a double-acting pneumatic actuator. Compressed air drives the actuator in both directions, producing the torque required to move the disc between open and closed positions. This arrangement reduces the need for manual intervention and is well suited to systems where the valve needs to be operated repeatedly from an automated control arrangement.

The wafer-end configuration provides a compact valve format for installation between compatible pipeline flanges. The EPDM seat forms the resilient sealing interface, while the cast iron body provides the principal structural housing for the valve assembly.

350MM Valve Specifications

How the Double-Acting Arrangement Works

1. Compressed air is supplied to the pneumatic actuator.
2. The actuator converts air pressure into rotary mechanical movement.
3. The generated torque is transferred through the valve stem to the butterfly disc.
4. The disc rotates through the quarter-turn operating range to establish the required open or closed position.
5. Air supplied for the opposite direction drives the actuator back, allowing controlled closing or opening.

Because the supplied configuration is double acting, pneumatic pressure is used for both directions of actuator movement. This makes the arrangement particularly relevant where consistent opening and closing cycles are required.

EPDM Seating and PN16 Construction

The EPDM seat provides the specified resilient seating arrangement for the valve. Seat compatibility should be evaluated against the actual process medium and operating temperature before installation. With a PN16 pressure rating, the valve should likewise be selected and operated within the applicable pressure and service limits.

• 350 mm nominal valve size for large pipeline applications.
• Double-acting pneumatic actuator for powered opening and closing.
• Cast iron body construction.
• Wafer-type end connection for compact installation.
• EPDM resilient seat.
• 5–7 bar specified air supply pressure.
• PN16 pressure rating.
• Solenoid valve supplied as the specified accessory.
• Suitable for automated industrial flow-isolation requirements.

Industrial Automation from Ahmedabad, Gujarat

Shiv Valves Industries, established in 2022, manufactures valve solutions with an emphasis on defined technical specifications and quality standards. The 350MM Pneumatic Actuator Butterfly Valve is offered for industrial users in Ahmedabad and across Gujarat who require a large-size valve with pneumatic actuation.

For enquiries, share the pipeline size, operating pressure, medium, required actuator arrangement, air availability, and quantity with Shiv Valves Industries to discuss the appropriate 350 mm pneumatic actuator butterfly valve configuration. Minimum order quantity: 1 piece.
