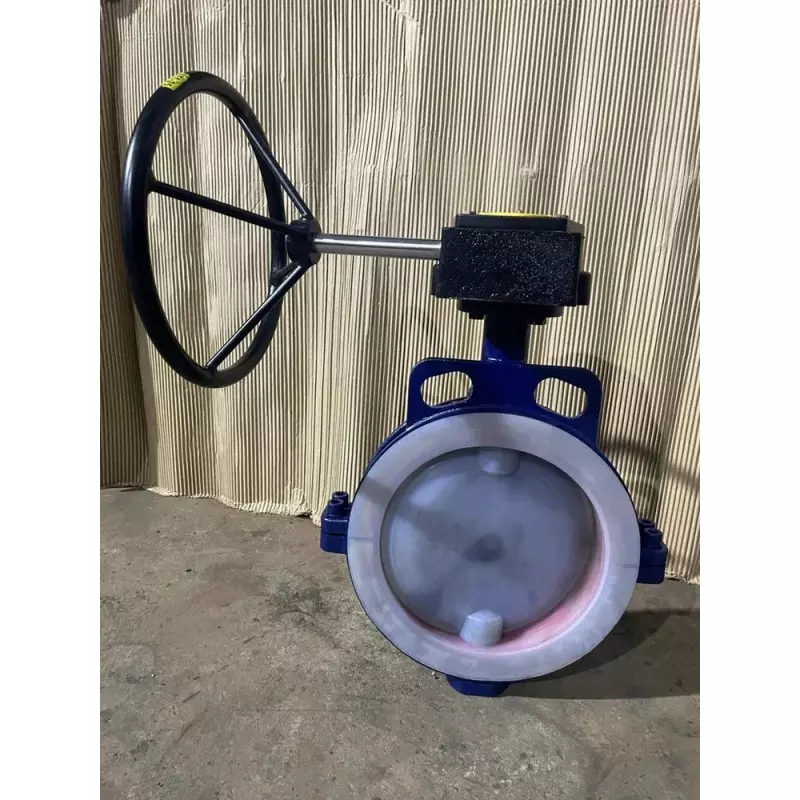

PTFE Sleeve Butterfly Valve

Corrosive fluid service demands more than a conventional flow-control arrangement; the wetted surfaces need appropriate protection against aggressive media while the valve remains practical to install and operate. Our PTFE Sleeve Butterfly Valve is designed around this requirement, combining a ductile iron body with an FEP lining and gear-operated wafer construction. With a 50 mm (2 inch) size and PN10 pressure rating, this SVI valve is intended for compatible water and chemical-handling applications across industrial process systems in Ahmedabad, Gujarat.

Protective Lining for Demanding Chemical Service

The valve incorporates FEP as the lining material, creating a protective barrier between the valve construction and the handled medium. This configuration is particularly relevant for applications involving alkali, acids and corrosive chemicals where material compatibility is an important consideration. The stated operating temperature range of 0–180°C provides a defined service range for suitable applications and media.

Product Specifications

Compact Wafer Arrangement with Gear Operation

The wafer-type end connection provides a compact valve configuration for installation between suitable pipeline flanges. At 50 mm, the design is convenient for process lines where space and straightforward installation are important. Gear operation provides controlled manual movement of the butterfly disc, making it suitable where gradual, deliberate valve positioning is preferred over direct lever actuation.

Functional Highlights for Process Applications

• FEP lining provides a protective wetted-surface barrier for compatible chemical applications.
• Ductile iron body offers a sturdy foundation for industrial valve construction.
• Wafer connection supports a compact pipeline installation arrangement.
• Gear-operated mechanism enables controlled manual operation.
• 50 mm / 2-inch size suits smaller process and utility pipelines.
• PN10 pressure rating defines the valve's specified pressure-service class.
• Suitable application areas include acid, alkali and corrosive chemical handling, subject to media compatibility.
• Specified temperature range extends from 0°C to 180°C for suitable service conditions.

Built for Chemical and Utility Flow Lines

This PTFE Sleeve Butterfly Valve is suited to industrial installations where flow isolation is required in water or compatible chemical lines. Its combination of corrosion-resistant lining, compact wafer construction and gear operation makes it applicable to process piping, chemical handling systems and other industrial utility services in and around Ahmedabad and Gujarat.

Shiv Valves Industries, established in 2022, supplies the SVI range with application-focused construction and defined technical specifications. For the 50 mm PTFE Sleeve Butterfly Valve, customers can discuss operating conditions, media compatibility, required material selection and quantity requirements before placing an order.

For product specifications, availability and supply requirements, contact Shiv Valves Industries in Ahmedabad, Gujarat for the appropriate PTFE Sleeve Butterfly Valve configuration.
