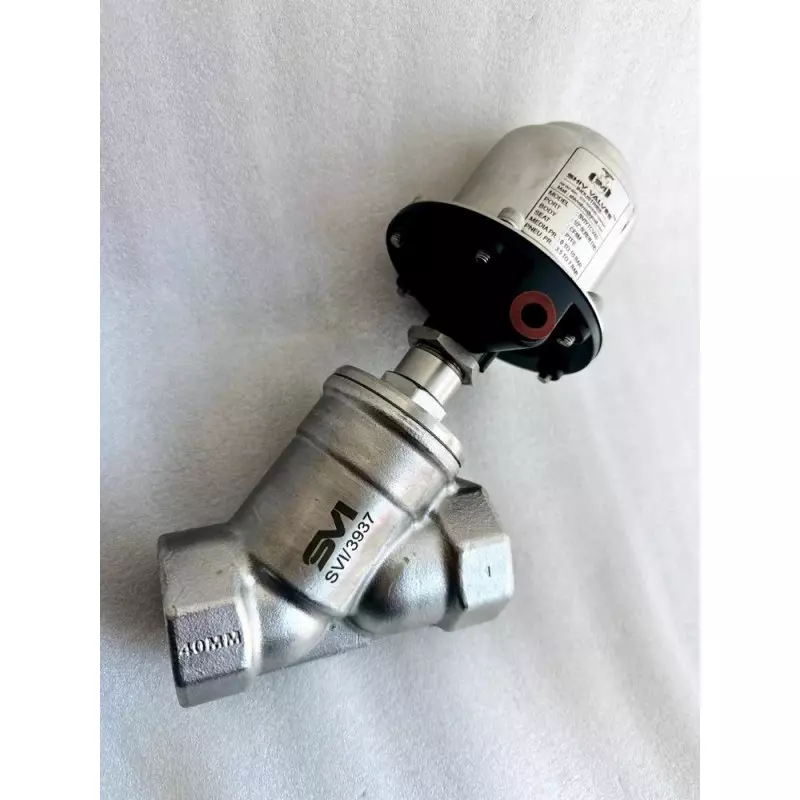

Pneumatic Angle Seat Valve

When a process line demands fast, repeatable switching in a compact installation, pneumatic actuation can provide a practical alternative to manual valve operation. Our Pneumatic Angle Seat Valve is designed around this requirement, combining stainless steel construction, double-acting pneumatic actuation, PTFE sealing, and a normally closed configuration. Manufactured in Ahmedabad, Gujarat, this 1-inch valve is suitable for specified water, steam, and air applications.

Angled Flow Path with Pneumatic Response

The angle-seat configuration places the valve body and flow passage in an angled arrangement, supporting an efficient layout for process piping. Pneumatic actuation allows the valve to move through compressed-air control rather than requiring continuous manual intervention. The double-acting actuator configuration provides pneumatic force for both opening and closing movements.

Stainless Steel Construction for Process Service

The stainless steel body provides a durable foundation for industrial operation and offers useful resistance against corrosion in suitable environments. The PTFE seal forms the primary sealing interface and is selected for applications where dependable sealing is required across the specified temperature and media conditions.

With a 10 bar pressure rating and an operating range of 0 to 120°C, this configuration is intended for applications that remain within these specified limits. Water, steam, and air can be handled when the complete valve configuration is compatible with the actual process conditions.

Functional Highlights of the Valve

• Double-acting pneumatic operation provides controlled opening and closing.
• Normally closed configuration keeps the valve in its designated closed position when the operating arrangement is at rest.
• Stainless steel construction provides a robust valve body for industrial service.
• PTFE sealing supports reliable sealing for compatible process media.
• Screwed end connection offers a practical connection method for compatible piping.
• Compact 1-inch / DN40 configuration is suitable for smaller process lines.
• Suitable for specified water, steam, and air applications.

Suitable for Automated Process Switching

The Pneumatic Angle Seat Valve is particularly useful where repeated valve cycling, remote operation, or integration with a pneumatic control arrangement is required. Its normally closed configuration can also be selected where the process design calls for the valve to remain closed in the defined non-actuated condition.

Shiv Valves Industries manufactures valve solutions in Ahmedabad, Gujarat, with configurations selected around industrial application requirements. This Pneumatic Angle Seat Valve is offered with a minimum order quantity of 10 pieces.

For Pneumatic Angle Seat Valve requirements in Ahmedabad, Gujarat, share your line size, medium, operating pressure, temperature, connection requirements, and pneumatic operating conditions with us. We can provide the applicable technical and commercial details for your requirement.
