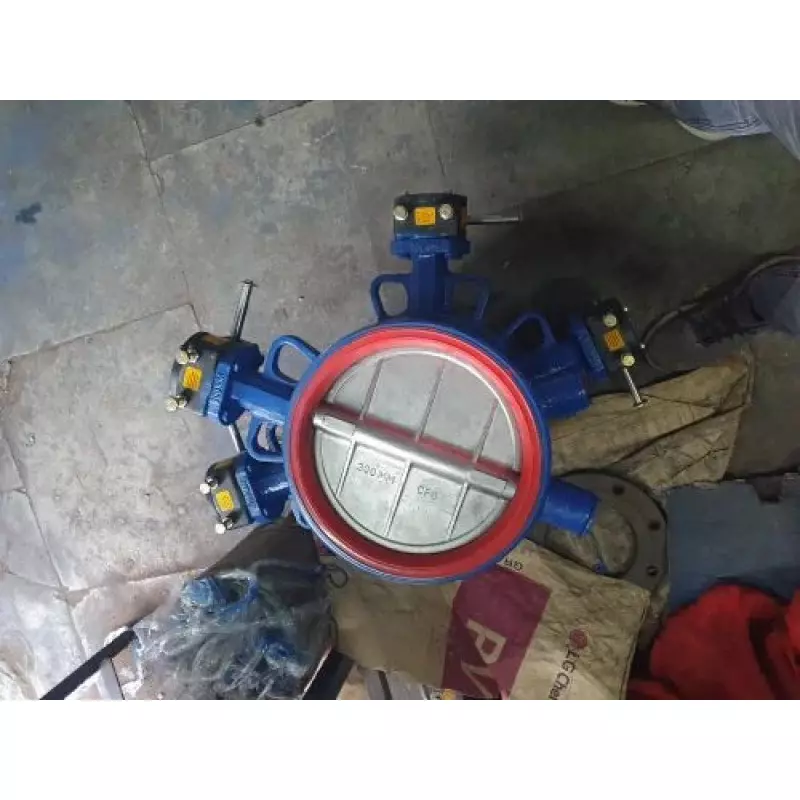

Silicon Rubber Lined Butterfly Valve

When a pipeline demands dependable isolation while the internal flow path needs protection from demanding operating conditions, the lining becomes an important part of valve selection. Our Silicon Rubber Lined Butterfly Valve is designed around this requirement, combining a WCB body, silicon lining, SS304 disc, Viton seat, and gear-operated construction. Manufactured by Shiv Valves Industries in Ahmedabad, Gujarat, this 10-inch valve provides a practical solution for compatible industrial flow-control systems requiring PN16 pressure performance.

Silicon-Lined Construction for Protected Flow Passage

The silicon lining forms an important protective layer inside the valve, helping separate the process medium from the primary body material. This construction can be advantageous in applications where the characteristics of the conveyed medium make internal protection desirable. The WCB body provides structural strength, while the silicon-lined internal arrangement is intended to support dependable service across the specified temperature range of -20 to 200°C.

Gear Operation for Controlled Valve Movement

For a 250 mm valve, gear operation provides a practical method of manually controlling disc movement without relying on direct lever operation. The geared mechanism allows the operator to open, close, or position the valve with controlled movement, making it suitable for larger pipeline installations where operating torque can be significant.

SS304 Disc and Viton Seat Combination

The SS304 disc provides a durable flow-control component within the lined body, while the Viton seat contributes to sealing performance. Together with the silicon lining, these components create a carefully selected material combination for compatible industrial services. The wafer-end configuration also allows the valve to be installed between suitable pipeline flanges, helping maintain a compact installation footprint.

Notable Design Features

• 10-inch / 250 mm configuration for larger pipeline applications.
• WCB body construction designed for robust industrial service.
• Silicon internal lining for a protected flow passage.
• SS304 disc for durable disc construction.
• Viton seat material for reliable sealing in compatible services.
• PN16 pressure rating for suitable pressure-system requirements.
• Gear-operated manual control for practical operation of the larger valve size.
• Wafer-end design supports space-conscious pipeline installation.
• Specified temperature range of -20 to 200°C.
• Blue finish suitable for clear industrial equipment identification.

Built for Application-Focused Flow Isolation

The combination of lining, disc, seat, body, and operating mechanism makes this butterfly valve suitable for industrial flow-control and isolation duties where the selected materials are compatible with the process conditions. Its compact wafer configuration can be integrated into appropriately designed piping systems while the gear operator provides controlled manual operation.

Shiv Valves Industries, established in 2022, manufactures industrial valve solutions from Ahmedabad, Gujarat, with attention to application requirements and product quality. This SVI Make Silicon Rubber Lined Butterfly Valve is available with a minimum order quantity of 1 piece.

For enquiries regarding the 10-inch PN16 silicon rubber lined butterfly valve, technical specifications, quantities, or application suitability, contact Shiv Valves Industries in Ahmedabad, Gujarat. Our team can assist with selecting the appropriate valve configuration for your pipeline requirements.
