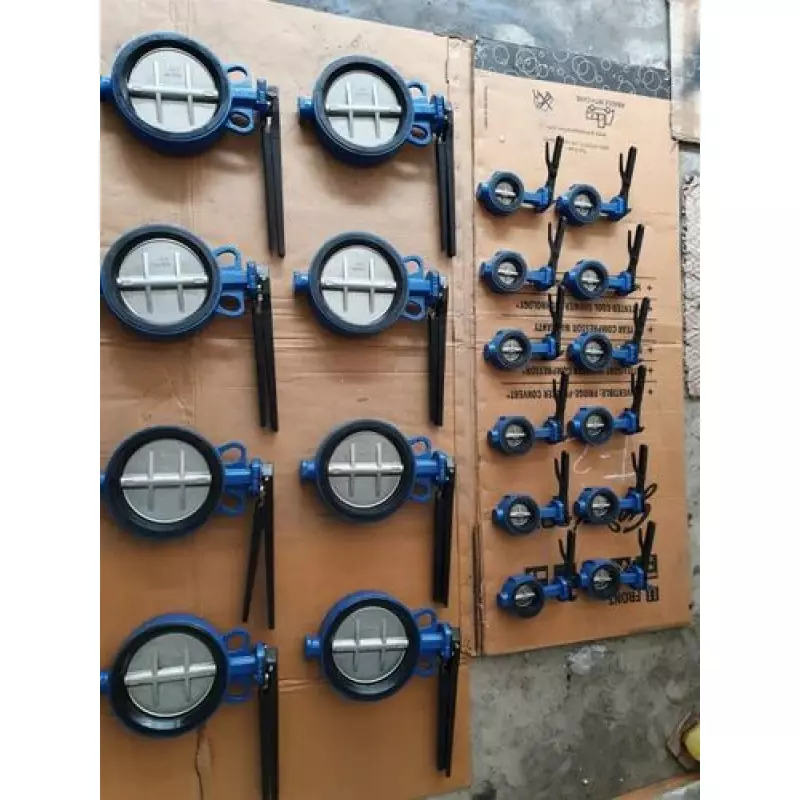

Wafer Butterfly Valves

For large industrial water lines, valve selection is often a balance between dependable shutoff, manageable installation space and smooth day-to-day operation. Our Wafer Butterfly Valve is developed for such requirements, combining a compact wafer-style body with a lever-operated disc mechanism. Manufactured in Ahmedabad, Gujarat, this configuration is suitable for industrial water-flow applications where a practical, space-conscious valve arrangement is required.

Large-Diameter Flow Control in a Compact Wafer Design

The valve features a 400 mm (16 inch) size with a wafer-type end connection, allowing it to be positioned between compatible pipeline flanges. Its butterfly disc rotates within the flow passage to regulate or isolate the line. This quarter-turn operating principle provides straightforward manual control, while the compact construction helps reduce the space occupied by the valve assembly.

Material Combination Selected for Industrial Service

The cast iron body provides a sturdy valve structure for the specified industrial application, while the stainless steel CF8 disc offers a durable flow-control component. An SS 410 shaft connects the operating mechanism to the disc, supporting the transmission of manual lever movement. The EPDM seat/seal material is specified for the stated water-service application, helping establish the sealing interface when the valve is closed.

Key Construction and Operating Features

• Wafer-type connection: Designed for installation between suitable pipeline flanges and helps maintain a compact assembly.
• 400 mm valve size: Provides a large flow-path configuration for industrial pipeline applications.
• Lever operation: Allows direct manual opening and closing without an external power source.
• CF8 stainless steel disc: Provides a robust disc construction for the specified water service.
• EPDM sealing: Selected for the stated water-media application.
• PN 16 pressure rating: Defines the pressure-class configuration for appropriate operating conditions.
• BS 5155 design reference: Provides a recognized design standard associated with butterfly valve construction.

Application Focus for Water-Based Industrial Systems

This SVI Make wafer butterfly valve is intended for industrial applications involving water and compatible medium-temperature service. Its large size, manual lever operation and wafer construction make it suitable for pipeline isolation duties in water-handling and general industrial installations. Correct selection should always consider actual pressure, temperature, flow conditions, flange compatibility and the properties of the service medium.

Engineered for Pipeline Requirements in Ahmedabad

Industries in Ahmedabad and across Gujarat can use this type of wafer butterfly valve where dependable manual flow isolation and compact pipeline integration are required. The combination of cast iron body construction, stainless steel disc and shaft, EPDM sealing and PN 16 rating provides a clearly defined configuration for specified industrial water applications.

For enquiries about the Wafer Butterfly Valve, share your pipeline size, operating pressure, temperature, medium and installation requirements with us. We can provide the relevant technical details and assist with the appropriate configuration for your application in Ahmedabad, Gujarat.
