2/2 Way Angle Type On/Off Control Valve TC Ends

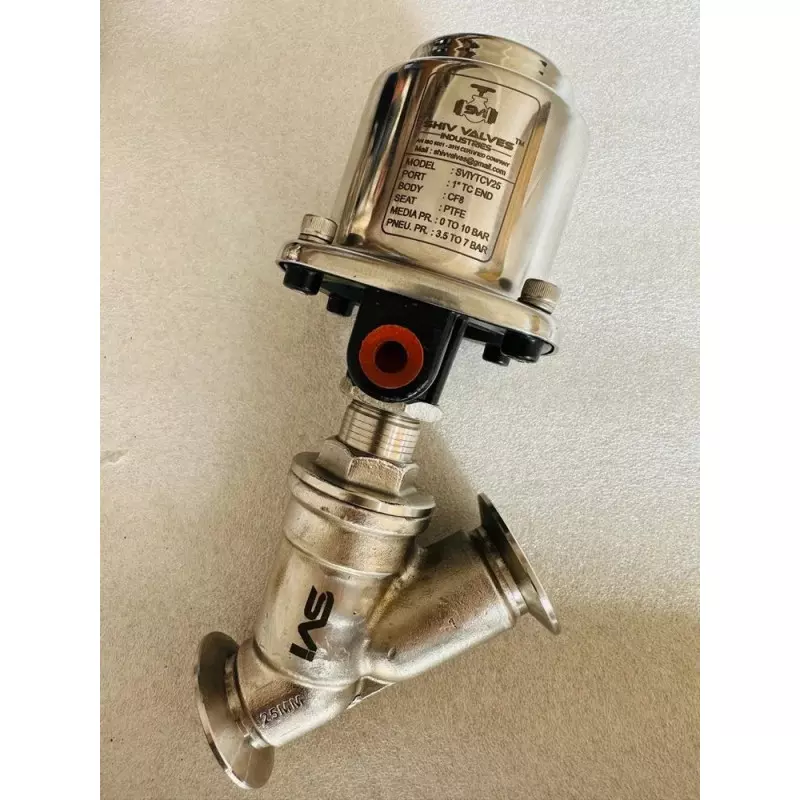

In compact process installations, the connection method can be just as important as the valve itself. The 2/2 Way Angle Type On/Off Control Valve TC Ends from Shiv Valves Industries combines pneumatic switching with a Tri Clamp end connection, creating a practical configuration for systems where hygienic, accessible and space-conscious piping arrangements are required. The DN15 valve features a stainless steel body, PTFE seat and Class VI leakage specification.

A Compact Valve Built Around Tri Clamp Connectivity

This angle-type valve uses a two-way, two-position operating principle: the flow passage is opened or closed through pneumatic actuation. Its angled body configuration is suitable for installations where conventional straight-line valve arrangements may be difficult to accommodate. The Tri Clamp connection provides a practical means of connecting the valve to compatible piping and process equipment while allowing convenient access during installation or maintenance.

With a 1/2-inch port size and single-port construction, this DN15 configuration is suited to smaller process and utility lines. Pneumatic operation supports automated switching, making it useful where repeated on/off cycles need to be controlled remotely rather than manually.

Technical Specification Snapshot

Key Design Features for Automated Switching

• Stainless steel body: Offers a corrosion-resistant construction for a wide range of industrial environments.
• Tri Clamp ends: Provide a practical connection arrangement for compatible process piping and equipment.
• Pneumatic actuator: Converts compressed-air energy into automatic valve movement.
• PTFE seat: Provides sealing performance and broad compatibility within the specified service conditions.
• Single-port flow path: Provides straightforward two-way on/off control.
• Class VI leakage specification: Supports tight shutoff performance for the defined valve configuration.

Designed for Diverse Process Media

The DN15 TC-end valve is specified for gas, oil, steam, water, air and chemical media. This makes the configuration applicable to a variety of industrial fluid and utility services. Final material compatibility should always be checked against the actual chemical composition, temperature and operating conditions of the process.

Angle Configuration and Pneumatic Operation

The angle-body arrangement is useful where piping needs to change direction through the valve and where installation space is restricted. Pneumatic actuation enables fast automatic operation and can be configured according to the required control philosophy, including normally closed, normally open or double-acting arrangements, subject to the selected actuator specification.

The supplied specifications indicate operating pressure ranges of approximately 4.5–7 bar for smaller valve sizes. PTFE sealing configurations are generally indicated for temperatures up to approximately 180°C, subject to the complete valve design and application conditions. The angle-type design is also suited to frequent cycling, with the supplied information indicating approximately 350–650 operating cycles per hour depending on configuration and service.

Shiv Valves Industries, established in 2022, supplies industrial valve solutions from Ahmedabad, Gujarat. The 2/2 Way Angle Type On/Off Control Valve TC Ends is available with a minimum order quantity of 1 piece.

For a DN15 Tri Clamp angle-type on/off control valve requirement in Ahmedabad, Gujarat, share your media, pressure, temperature and pneumatic operating details with Shiv Valves Industries for suitable product configuration and application guidance.
