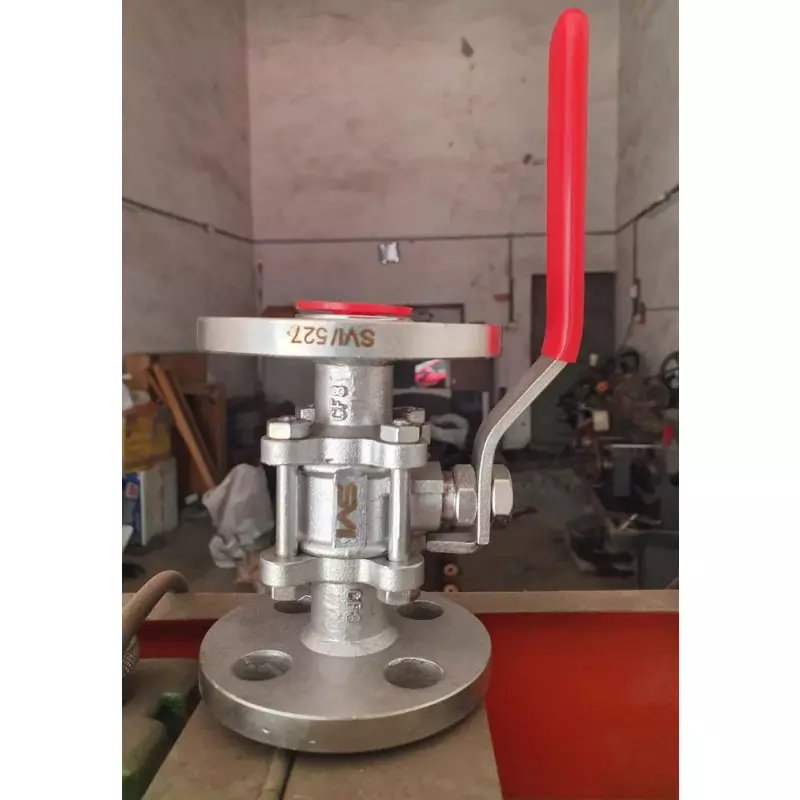

Manually Operated Ball Valve

When a pipeline needs straightforward local flow isolation without depending on external power or compressed air, a lever-operated design can be an effective choice. Our Manually Operated Ball Valve is developed for practical industrial service, combining a stainless steel body, full-bore passage and quarter-turn lever operation. Manufactured under the SVI make from Ahmedabad, Gujarat, this configuration is suited to applications where direct operator control and dependable shut-off are important.

Three-Piece Construction for Practical Maintenance

The valve features a 3-piece design that provides a convenient construction for industrial installation and servicing. Its full-bore passage helps maintain a relatively unobstructed flow path when the valve is fully open. The stainless steel body and Stainless Steel 304 ball provide a robust material combination for compatible water-service applications.

Operation is performed through a lever, allowing the operator to visually and mechanically position the valve between open and closed conditions. The quarter-turn principle makes routine isolation simple and quick compared with multi-turn valve arrangements.

Manually Operated Ball Valve Specifications

Full-Bore Flow with Lever-Based Control

• Full-bore configuration: Provides a continuous internal passage when open, supporting efficient flow through the valve.
• Lever operation: Enables direct local control without requiring an actuator or external operating power.
• SS construction: Stainless steel body construction provides a durable option for compatible service environments.
• SS 304 ball: The stainless steel ball complements the valve body for the specified application.
• PTFE seat: Provides the specified seating arrangement for the valve.
• 3-piece design: Offers a practical configuration for maintenance and component access.

Designed Around Water Flow Applications

This manually operated ball valve is specified for water service with low-pressure and low-temperature operating conditions. The Class 150 pressure class, PTFE seat and ASME B16.5 flanged-end specification provide clear selection parameters for engineers and procurement teams evaluating pipeline components.

The manual configuration is particularly suitable for locations where valve operation is performed directly by plant personnel. It can be considered for utility lines, process-support piping and other compatible industrial water systems where automatic actuation is not required.

SVI Valve Solutions from Ahmedabad

Shiv Valves Industries, established in 2022, manufactures industrial valve solutions with an emphasis on defined specifications and application-oriented construction. Our SVI Make Manually Operated Ball Valve is offered for customers seeking a stainless steel, full-bore, lever-operated configuration for their flow-isolation requirements in Ahmedabad and across Gujarat.

For selection, provide the required size, pipeline connection, operating pressure, temperature and service medium. Our team can help identify the appropriate manually operated ball valve configuration according to the application.
