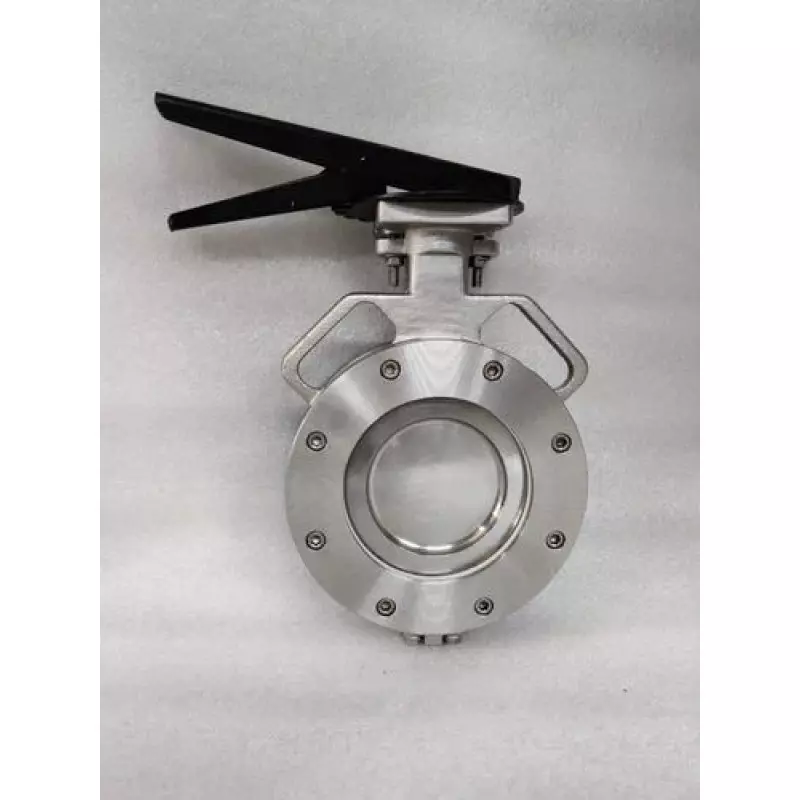

Spherical Disc Butterfly Valve

Efficient flow isolation often depends on a valve that combines a robust disc assembly with straightforward manual control. Our Spherical Disc Butterfly Valve is developed for industrial service with a 50 mm (2 inch) valve size, stainless steel construction and a PTFE seat. The wafer-end arrangement keeps the installation compact, while the lever-operated mechanism provides direct and convenient manual operation for suitable process lines in Ahmedabad, Gujarat.

A Disc Geometry Designed for Controlled Flow Service

The spherical disc configuration forms the central working element of the valve, with the disc specified in stainless steel CF8. The body is also constructed from stainless steel CF8, providing a durable metallic structure for industrial environments. A PTFE seat complements the construction by providing the specified seating material for applications compatible with PTFE and the stated operating conditions.

Technical Specification Table

Compact Wafer-End Construction

The wafer-end design allows the valve to be installed within a suitable flanged pipeline arrangement without adding the larger end-body dimensions associated with some other connection configurations. This compact approach can be beneficial in industrial piping layouts where installation space needs to be managed carefully. The 50 mm size makes the valve suitable for smaller process and utility lines requiring manual isolation.

Key Features for Industrial Valve Applications

• Stainless steel CF8 body and disc construction.
• PTFE seat material for suitable compatible service conditions.
• 50 mm / 2-inch valve size for compact pipeline applications.
• Wafer-end connection supports space-conscious installation.
• Lever operation provides simple direct manual actuation.
• PN10 pressure rating for the specified pressure class.
• API 609 face-to-face specification for the stated design requirement.
• Specified for medium-pressure industrial service and steam applications.

Suitable for Process Lines Requiring Manual Isolation

The valve is intended for industrial applications where manual opening and closing is required for compatible steam and process-service conditions. Its stainless steel construction, PTFE seating and compact wafer arrangement make it a practical option for process piping, utility lines and industrial flow-isolation duties around Ahmedabad and across Gujarat, subject to application-specific media and temperature compatibility.

Shiv Valves Industries, established in 2022, manufactures industrial valve solutions with defined specifications for different flow-control requirements. This SVI spherical disc butterfly valve is supplied with a minimum order quantity of one piece, allowing individual requirements as well as project-based procurement to be considered.

For the 2-inch Spherical Disc Butterfly Valve, contact Shiv Valves Industries in Ahmedabad, Gujarat to discuss technical specifications, application conditions, quantity requirements and supply availability.
