500mm Butterfly Valve
500mm Butterfly Valve Details
Large diameter pipelines need valves that can handle higher flow while remaining easy to operate. We manufacture and supply 500mm Butterfly Valve in Ahmedabad, Gujarat for industrial pipeline systems where dependable flow control is required. This model is built with a Cast Iron body, Stainless Steel CF8M disc, SS 410 shaft and EPDM seat. The valve is supplied with a gear-operated mechanism and wafer type end connection, making it suitable for various industrial installations.
The 500 mm size is commonly selected for large water distribution and industrial process lines. The gear operator helps the user open and close the valve smoothly, even on larger diameter pipelines. Along with this model, we also offer 500mm Butterfly Valve in different operating and seating configurations based on application requirements.
Designed for Large Pipeline Installations

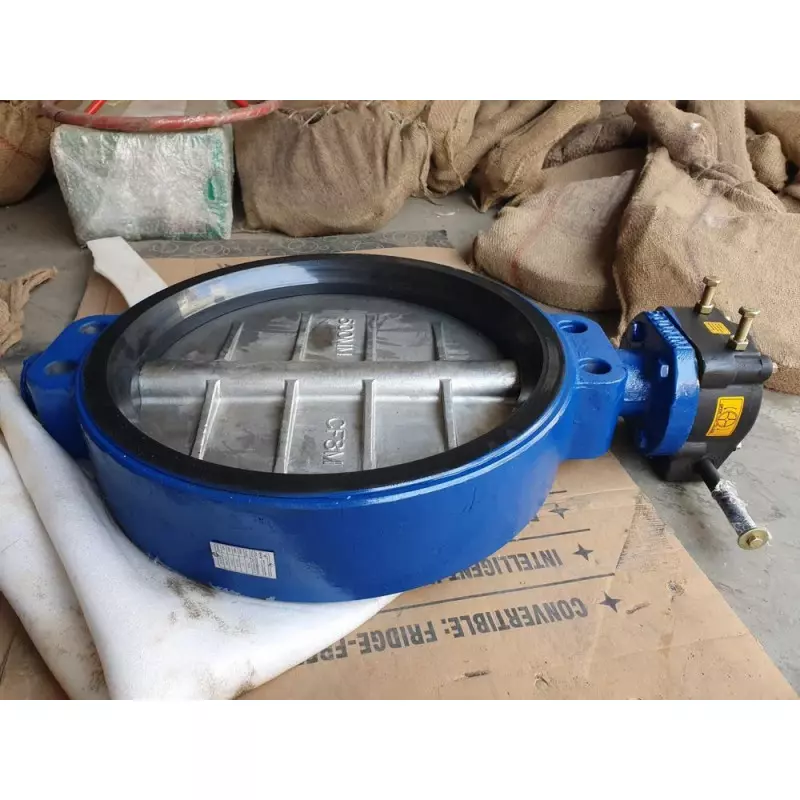

This 500mm Butterfly Valve is manufactured with a Cast Iron (CI) body for strength and a Stainless Steel (CF8M) disc for reliable flow control. The EPDM seat provides sealing between the disc and body, while the SS 410 shaft supports smooth disc rotation during operation. The wafer type construction allows the valve to be installed between pipeline flanges without increasing the overall pipeline length.
| Component | Specification |
|---|---|
| Body Material | Cast Iron (CI) |
| Disc Material | Stainless Steel (CF8M) |
| Seat Material | EPDM |
| Shaft Material | SS 410 |
| End Connection | Wafer Type |
Technical Specifications
| Parameter | Details |
|---|---|
| Valve Type | 500mm Butterfly Valve |
| Size | 500 mm |
| Body Material | Cast Iron (CI) |
| Operation | Gear Operated |
| End Connection | Wafer Type |
| Disc Material | Stainless Steel (CF8M) |
| Pressure Rating | PN 10 |
| Seat / Seal Material | EPDM |
| Shaft Material | SS 410 |
| Design Standard | API 609 |
Working Principle
The valve operates using a quarter-turn rotating disc. When the disc is parallel to the flow direction, the valve remains fully open. Rotating the gear mechanism turns the disc until it reaches the closed position. The disc can also be positioned between fully open and fully closed to regulate the flow according to process requirements.
Key Product Features
- 500 mm valve size for large pipelines
- Cast Iron body construction
- Stainless Steel CF8M disc
- EPDM sealing seat
- SS 410 shaft
- Gear-operated manual control
- Wafer type end connection
- PN 10 pressure rating
- Designed as per API 609 standard
Suitable Application Areas
This 500mm Butterfly Valve is suitable for industrial pipeline systems where a large valve size and manual gear operation are required. Buyers should select the valve after confirming pipeline size, pressure, media and operating conditions with the specified technical details.
We manufacture and supply 500mm Butterfly Valve in Ahmedabad, Gujarat for industrial flow control applications across India. Since 2022, we've been manufacturing butterfly valves for different pipeline requirements. If you need a 500 mm valve or another size from our butterfly valve range, share your project details with us. We'll recommend the suitable model and provide a quotation based on your requirement.
