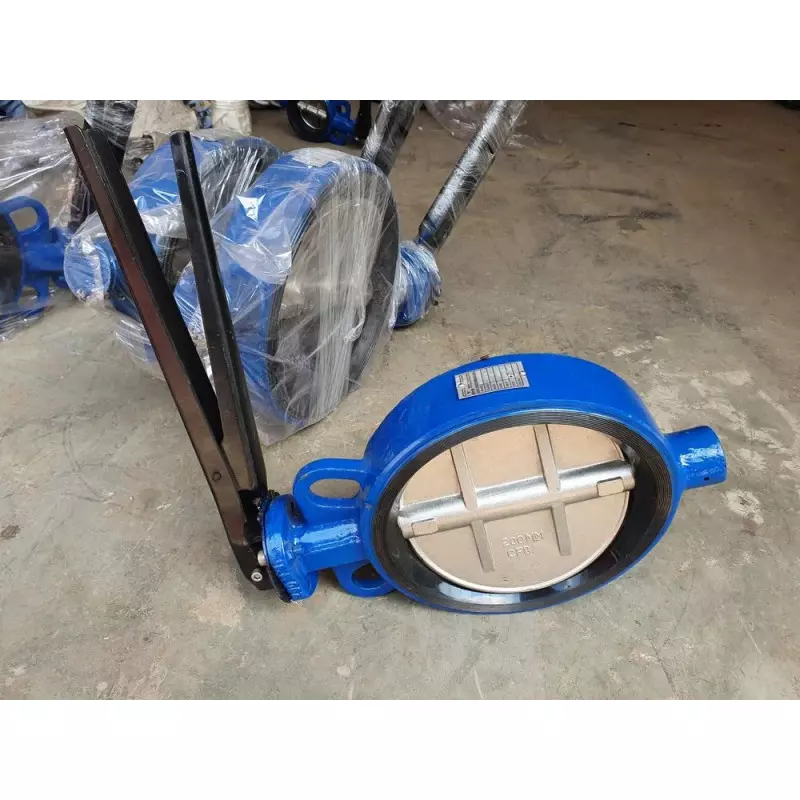

200MM Cast Iron Butterfly Valve
200MM Cast Iron Butterfly Valve Details
Selecting the correct valve size can make routine pipeline operation much easier. We manufacture and supply 200MM Cast Iron Butterfly Valve in Ahmedabad, Gujarat for industrial applications where reliable shut-off and flow regulation are required. This model is available in 200 mm (8 inch) size with a Cast Iron body, SS 304 disc, EPDM seat and lever-operated mechanism. Its wafer type design allows convenient installation between pipeline flanges while keeping the valve compact.
The quarter-turn operating mechanism allows the valve to open and close with a simple lever movement. This helps reduce operating time while providing smooth control over the process flow. Along with this model, we also offer 200MM Cast Iron Butterfly Valve in different sizes and operating configurations to match various industrial requirements.
Construction Built for Industrial Use
This valve is manufactured with a Cast Iron (CI) body that provides strength for industrial service. The SS 304 disc rotates inside the valve to regulate the flow, while the EPDM seat forms the sealing surface when the valve reaches the closed position. The wafer type body is designed to fit securely between standard pipe flanges without increasing the pipeline length.
| Component | Specification |
|---|---|
| Body Material | Cast Iron (CI) |
| Disc Material | SS 304 |
| Seat Material | EPDM |
| Design | Wafer Type |
| Operation | Lever Operated |
Technical Specifications
| Parameter | Details |
|---|---|
| Valve Type | 200MM Cast Iron Butterfly Valve |
| Size | 200 mm (8 Inch) |
| Body Material | Cast Iron (CI) |
| Disc Material | SS 304 |
| Seat Material | EPDM |
| Pressure Rating | PN 16 |
| Operation Type | Lever Operated |
| Design | Wafer Type |
Simple Quarter-Turn Operation
The lever-operated design allows the disc to rotate through a quarter turn for opening or closing the valve. When the disc is aligned with the pipeline, flow passes through the valve. Rotating the lever turns the disc across the flow path to stop the movement of media. Intermediate positions can also be used whenever flow regulation is required.
Main Features
- 200 mm (8 inch) valve size
- Cast Iron body construction
- SS 304 disc
- EPDM sealing seat
- Wafer type design
- Lever-operated mechanism
- PN 16 pressure rating
- Compact installation between pipe flanges
Application Overview
This 200MM Cast Iron Butterfly Valve is suitable for industrial pipeline systems where manual operation and compact valve installation are required. Before selecting the valve, users should compare the operating pressure, media and service conditions with the specified product ratings for proper application.
We manufacture and supply 200MM Cast Iron Butterfly Valve in Ahmedabad, Gujarat for industrial buyers across India. Since 2022, we've been manufacturing butterfly valves in different sizes to meet varying pipeline requirements. If you're looking for an 8 inch butterfly valve or another size from our butterfly valve range, share your application details with us. We'll recommend the suitable specification and provide a quotation based on your requirement.
