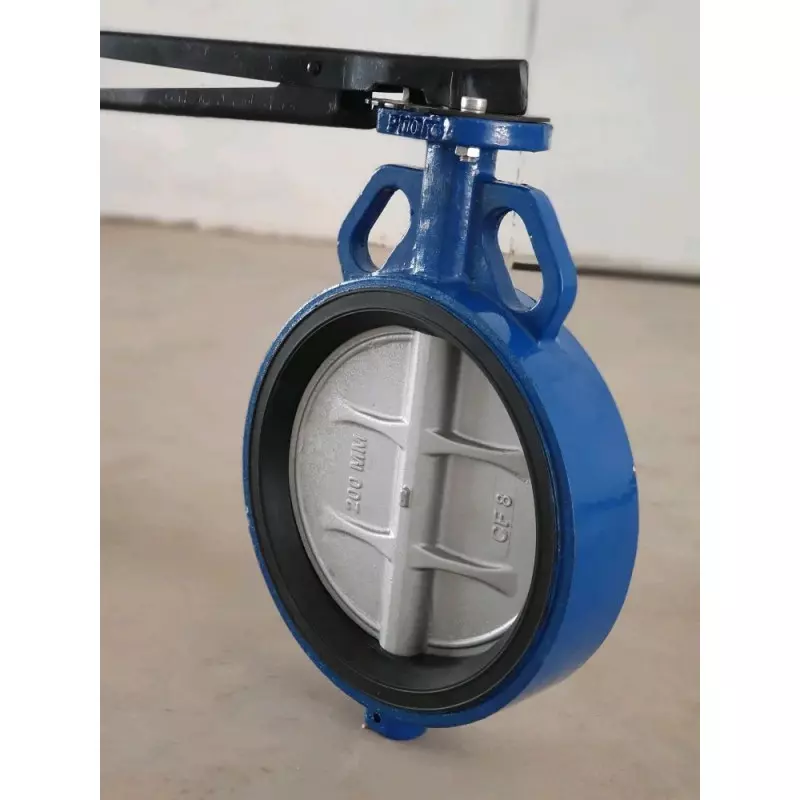

Resilient Seated Butterfly Valve

When dependable shut-off is essential across a wide range of pipeline sizes, a properly selected resilient seated butterfly valve can provide a practical combination of sealing and simple quarter-turn operation. Shiv Valves Industries manufactures Resilient Seated Butterfly Valves in Ahmedabad, Gujarat, with a size range from 40 mm to 1000 mm. The valve is configured with a cast iron body, wafer connection, lever operation, and EPDM seating, making it suitable for specified industrial flow-isolation requirements.

Elastic Seating for Reliable Pipeline Isolation

The defining feature of this butterfly valve is its resilient seat arrangement. The seating element forms the sealing interface around the disc, helping provide dependable shut-off when the valve is moved into the closed position. EPDM is specified as the standard seat material, while the available seat range also includes Viton, Silicon, and NBR, allowing the seating material to be selected according to the intended service conditions and media compatibility.

The wafer-end construction provides a compact installation format between suitable pipeline flanges. With lever operation, the valve is intended for straightforward manual control where local operation is preferred.

Technical Specification

Flexible Seat Selection for Different Requirements

The availability of multiple seat materials is an important part of this product range. While EPDM is the specified standard option, Viton, Silicon, and NBR seats can be considered where different operating or media conditions call for an alternative elastomer. Final material selection should be based on the actual medium, temperature, pressure, and compatibility requirements of the installation.

Designed Across Multiple Pipeline Sizes

With a stated range extending from 40 mm through 1000 mm, the valve can be considered for both relatively compact and large-diameter piping systems. The PN16 pressure rating provides a defined operating classification, while the maximum working temperature is specified at 120°C. Proper sizing and installation should always be matched to the actual process conditions.

• Cast iron body construction.
• Wafer-type end connection for compact pipeline installation.
• 40 mm to 1000 mm size range.
• PN16 pressure rating.
• Lever-operated manual configuration.
• EPDM standard resilient seat.
• Optional Viton, Silicon, and NBR seat materials.
• Suitable for 150# flange arrangements.
• Maximum working temperature of 120°C.

Manufactured for Industrial Requirements in Gujarat

Shiv Valves Industries was established in 2022 and manufactures industrial valve solutions with attention to product specifications and quality standards. From Ahmedabad, Gujarat, the company offers resilient seated butterfly valve configurations for customers requiring practical manual flow isolation across different pipeline sizes.

For enquiries regarding a Resilient Seated Butterfly Valve in Ahmedabad, Gujarat, provide the required size, media, temperature, pressure, and preferred seat material so the appropriate configuration can be evaluated for your application. Minimum order quantity: 1 piece.
