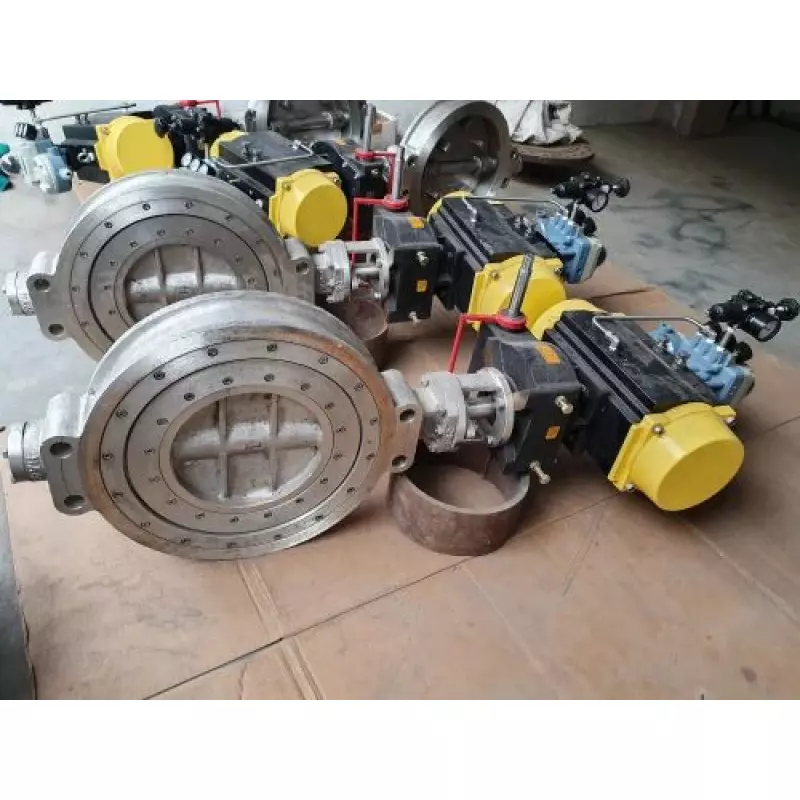

Pneumatic Triple Eccentric Off Set Disc Butterfly Valve

When dependable air-flow isolation needs to be combined with automated operation, a carefully engineered eccentric butterfly design can make a significant difference. Our Pneumatic Triple Eccentric Off Set Disc Butterfly Valve is developed for industrial flow-control duties where smooth actuation, reduced seating friction, and reliable shut-off are important. Manufactured by Shiv Valves Industries in Ahmedabad, Gujarat, this valve combines a stainless steel construction with an SS 304 disc, pneumatic actuation, and a PN10 pressure rating for practical industrial service.

Engineered Triple-Eccentric Geometry for Better Valve Performance

The triple-eccentric arrangement changes the way the disc moves in relation to the sealing surface. Instead of maintaining continuous rubbing contact throughout its rotation, the disc moves away from the seat during opening and approaches the sealing position primarily at closure. This helps reduce unnecessary friction and mechanical wear while supporting smoother operation. The offset disc configuration is particularly useful where repeated cycling and dependable isolation are required.

Pneumatic Actuation for Responsive Industrial Control

With a pneumatic operator, the valve can be integrated into automated plant control systems where rapid and repeatable opening or closing is required. Pneumatic actuation is well suited to industrial installations using compressed air as the operating source. The actuator-driven arrangement also reduces the need for direct manual intervention, making the 12-inch valve practical for pipeline sections where remote or automated isolation is preferred.

Stainless Steel Construction with SS 304 Disc

The stainless steel body provides a robust foundation for industrial service, while the SS 304 disc offers a durable flow-control element. The combination is suitable for air-handling applications where dependable mechanical performance and resistance to demanding operating conditions are important. The 12-inch size provides a substantial flow passage for larger pipeline installations while retaining the compact quarter-turn principle associated with butterfly valve technology.

Key Performance Characteristics

• Triple-eccentric off-set disc arrangement helps minimize rubbing between disc and sealing surfaces.
• Pneumatic actuator operation supports automated and repeatable valve movement.
• 12-inch valve size is suited to larger industrial air-flow pipelines.
• Stainless steel body construction provides a strong and durable valve structure.
• SS 304 disc construction supports reliable service in the specified application.
• PN10 pressure rating is suitable for compatible low-pressure industrial systems.
• Quarter-turn butterfly valve operation allows practical flow isolation.
• Made in India construction for industrial valve requirements in Ahmedabad and across Gujarat.

Suitable for Industrial Air-Flow Systems

This pneumatic triple eccentric butterfly valve is suited to industrial air-flow applications where controlled isolation and automated operation are required. Its eccentric disc movement, stainless steel construction, and pneumatic actuation make it a practical choice for engineered pipeline assemblies, process air lines, utility systems, and other compatible industrial installations.

Shiv Valves Industries, established in 2022, manufactures industrial valve solutions in Ahmedabad with emphasis on consistent quality and application-oriented construction. Our SVI Make Pneumatic Triple Eccentric Off Set Disc Butterfly Valve is available with a minimum order quantity of 1 piece.

For technical requirements, sizing assistance, project quantities, or enquiries for this 12-inch PN10 pneumatic butterfly valve, contact Shiv Valves Industries in Ahmedabad, Gujarat. Our team can assist with product specifications and selection according to your pipeline application.
