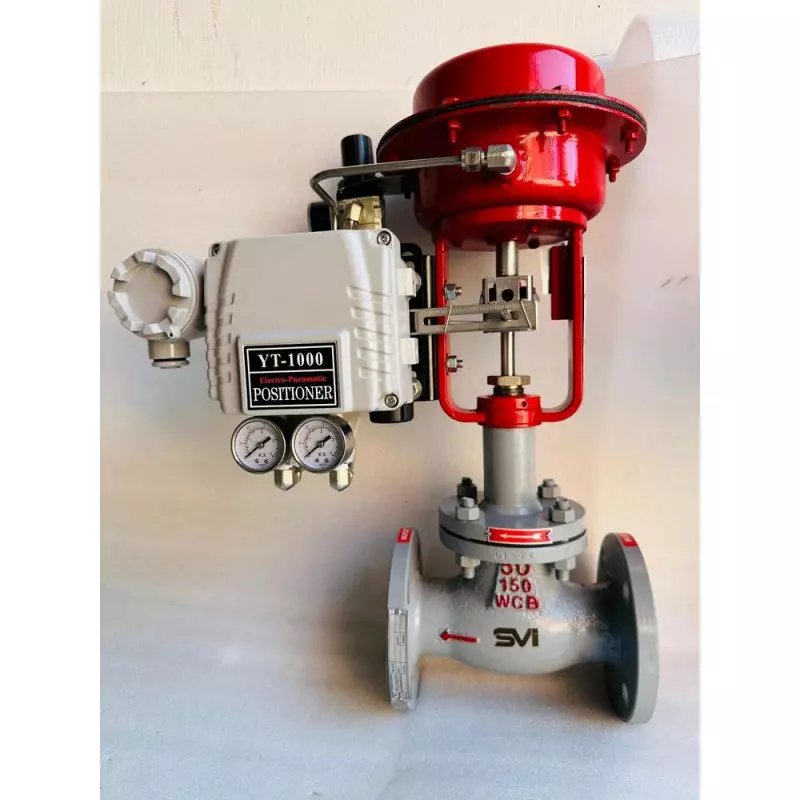

Pneumatic Diaphragm Control Valve

Consistent process control depends on how accurately a valve responds to changing operating conditions. Our Pneumatic Diaphragm Control Valve is designed for modulating flow control where dependable pneumatic actuation and controlled diaphragm movement are important. Manufactured by Shiv Valves Industries in Ahmedabad, Gujarat, this valve combines a carbon steel body, diaphragm actuator and modulating control arrangement for industrial fluid-handling systems.

Engineered for Responsive Modulating Control

The valve uses a pneumatic diaphragm actuator to convert air pressure into controlled mechanical movement. With an air supply pressure of 5 bar, the actuator supports regulated valve positioning rather than simply providing open-or-close operation. This makes the configuration suitable for processes where maintaining a desired flow condition is essential.

Construction That Supports Process Reliability

• Carbon steel body: Provides a robust construction for demanding industrial service.
• Neoprene diaphragm: Provides flexible movement while separating the actuation mechanism from the controlled medium.
• Pneumatic diaphragm actuator: Enables controlled operation using compressed air.
• Flanged connection: Offers a practical installation arrangement for compatible process piping.
• PN16 rating: Provides a defined pressure-rating configuration for system selection.
• Modulating control: Allows the valve position to be adjusted progressively according to process requirements.

Suitable for Diverse Industrial Media

This Pneumatic Diaphragm Control Valve is configured for applications involving pharmaceutical processes, water systems and chemical handling. The diaphragm arrangement is particularly useful where controlled fluid movement and separation between the process medium and actuator mechanism are important. Its pneumatic operating principle can also integrate effectively into automated process-control arrangements.

Functional Elements at a Glance

Built for Controlled Industrial Flow

For industries in Ahmedabad and across Gujarat seeking a pneumatic valve configuration for controlled process flow, this 50 mm Pneumatic Diaphragm Control Valve offers a practical combination of modulating operation, PN16 construction, flanged connectivity and pneumatic diaphragm actuation. Shiv Valves Industries, established in 2022, manufactures industrial valve solutions with emphasis on product quality and application-oriented requirements.

For specifications, availability and project requirements for the Pneumatic Diaphragm Control Valve, contact Shiv Valves Industries for suitable configuration and technical assistance. Minimum order quantity: 1 Piece.
