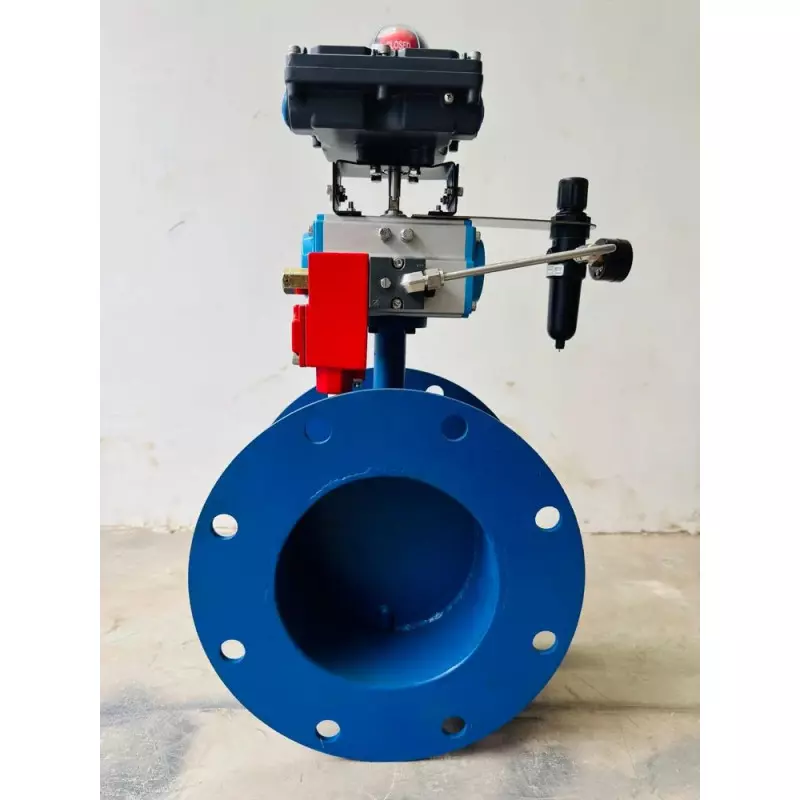

Pneumatic Double Flange Fabricated Damper Valve
Pneumatic Double Flange Fabricated Damper Valve Details
Accurate control of flue gas flow plays an important role in many industrial processes. Our Pneumatic Double Flange Fabricated Damper Valve is designed for industries that need dependable shut-off and controlled air or gas movement in ducting and pipeline systems. Built using a fabricated mild steel body and operated through a pneumatic actuator, this valve delivers quick response and smooth operation in applications where manual control isn't practical. It is suitable for handling flue gas at temperatures ranging from 0°C to 200°C and is widely supplied across Ahmedabad, Gujarat, and different parts of India.
We manufacture these fabricated damper valves with different sizes, operating arrangements, and fabrication options based on application requirements. The double flanged mounting allows secure installation while maintaining proper alignment inside industrial pipelines and duct systems.
Designed for Controlled Air and Gas Flow
The Pneumatic Double Flange Fabricated Damper Valve is developed for applications where reliable isolation and controlled flow of gases are required. Its pneumatic actuator operates the damper quickly using compressed air, reducing manual effort and supporting automated plant operations. The fabricated mild steel body offers good structural strength, while the flanged design allows easy installation and maintenance during plant shutdowns.
Technical Specifications
| Specification | Details |
|---|---|
| Product | Pneumatic Double Flange Fabricated Damper Valve |
| Size | 100 mm |
| Body Material | Mild Steel |
| End Connection | Double Flanged |
| Mounting | End Flanged |
| Operation | Pneumatic |
| Pressure Rating | PN6 |
| Working Medium | Flue Gas |
| Temperature Range | 0°C to 200°C |
Main Features
- Fabricated mild steel body for industrial duty.
- Pneumatic operation for fast and reliable actuation.
- Double flanged design offers stable pipeline connection.
- Suitable for flue gas handling applications.
- Compact construction allows convenient installation.
- Designed for operating temperatures up to 200°C.
- Requires minimal manual intervention during operation.
Industrial Applications
This fabricated damper valve is commonly used in flue gas pipelines, industrial exhaust systems, pollution control equipment, boilers, furnaces, thermal plants, ventilation systems, process industries, chemical plants, cement plants, steel industries, and other applications where controlled gas flow is required. Pneumatic operation makes it suitable for automated process lines that demand quick response and repeatable performance.
Construction and Working Principle
The valve consists of a fabricated mild steel body fitted with a rotating damper plate. A pneumatic actuator rotates the disc through a quarter-turn movement to regulate or completely isolate the flow of flue gas. The double flanged construction provides secure mounting between pipeline flanges while maintaining proper alignment during operation. This arrangement also simplifies inspection and maintenance whenever servicing is required.
Performance Advantages
The combination of fabricated construction and pneumatic actuation helps maintain stable performance in demanding industrial environments. The valve opens and closes quickly, reducing operating time while supporting better process control. Its simple operating mechanism also reduces maintenance requirements compared to more complex flow control equipment, making it suitable for continuous industrial service.
If you're planning a new installation or replacing an existing Pneumatic Double Flange Fabricated Damper Valve, we're ready to support your requirement. Share your operating conditions, size, and project details, and we'll recommend the suitable valve configuration with a competitive quotation.
