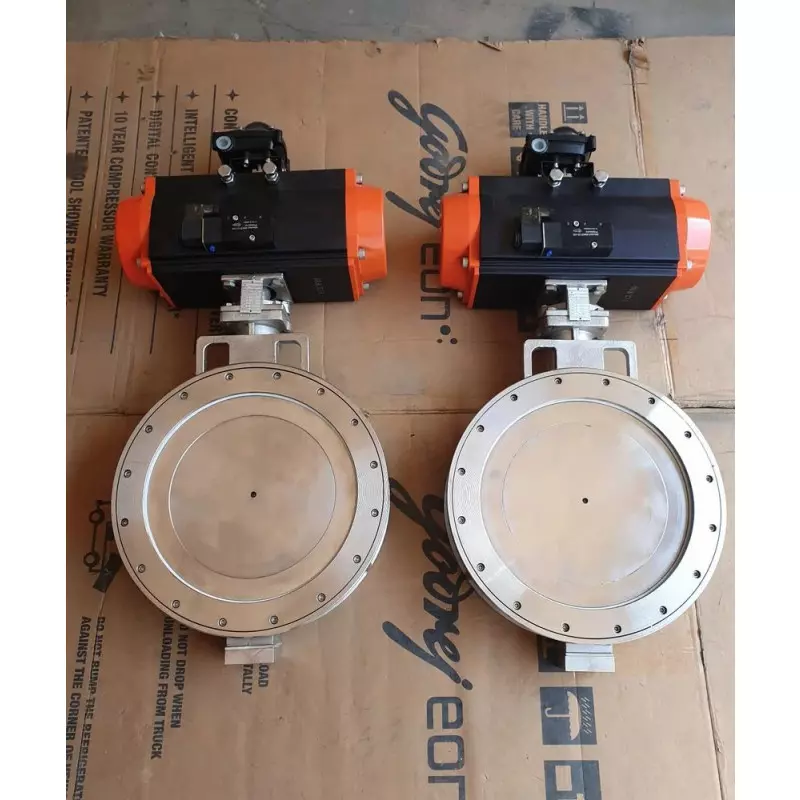

Pneumatic Ptfe Sleeve Butterfly Valve
Pneumatic Ptfe Sleeve Butterfly Valve Details
Handling corrosive chemicals needs more than a standard valve. The material inside the valve plays an important role in maintaining smooth operation under demanding process conditions. We manufacture and supply Pneumatic PTFE Sleeve Butterfly Valve in Ahmedabad, Gujarat with a stainless steel body, PTFE lining and pneumatic actuator operation. This valve is designed for applications involving acid, alkali and corrosive chemicals where the specified operating conditions match the system requirements.
The wafer end design helps reduce installation space while allowing the valve to fit between pipeline flanges. The pneumatic actuator offers automatic operation, making the valve suitable for process lines where manual intervention is limited. We also offer Pneumatic PTFE Sleeve Butterfly Valve in different sizes based on industrial application requirements.
PTFE Lining for Chemical Service
The internal PTFE sleeve provides a protective lining between the process media and the valve body. Combined with a stainless steel construction, the valve is suitable for handling corrosive media under the specified pressure and temperature range. The pneumatic actuator allows the disc to open and close quickly while maintaining controlled flow through the pipeline.
| Component | Specification |
|---|---|
| Body Material | Stainless Steel |
| Lining Material | PTFE |
| End Connection | Wafer |
| Operation | Pneumatic Actuator |
| Valve Size | 300 mm (12 Inch) |
Technical Specifications
| Parameter | Details |
|---|---|
| Valve Type | Pneumatic PTFE Sleeve Butterfly Valve |
| Size | 300 mm |
| Valve Size | 12 Inch |
| Body Material | Stainless Steel |
| Lining Material | PTFE |
| End Connection | Wafer |
| Operation Type | By Actuator |
| Pressure Rating | PN10 |
| Application | Acid, Alkali, Corrosive Chemical |
| Temperature Range | 0°C to 180°C |
| Temperature of Media | Low to Medium Temperature |
| Brand | SVI |
Automatic Pneumatic Operation
This model operates through a pneumatic actuator instead of manual lever operation. Compressed air moves the actuator, which rotates the butterfly disc to regulate flow inside the pipeline. The actuator-based operation is suitable for automated process systems where faster valve movement and remote operation are required.
Common Application Areas
This Pneumatic PTFE Sleeve Butterfly Valve is specified for handling corrosive process media. The PTFE lining helps isolate the media from the metal body, making the valve suitable for selected chemical service applications operating within the specified pressure and temperature limits.
- Chemical processing plants
- Acid transfer pipelines
- Alkali handling systems
- Corrosive chemical process lines
- Industrial fluid control applications
Main Product Highlights
- 300 mm (12 inch) valve size
- Stainless steel body construction
- PTFE sleeve lining
- Wafer end connection
- Pneumatic actuator operation
- PN10 pressure rating
- Temperature range from 0°C to 180°C
- Suitable for acid, alkali and corrosive chemicals
- SVI make
We manufacture and supply Pneumatic PTFE Sleeve Butterfly Valve in Ahmedabad, Gujarat for industrial chemical handling applications. Since 2022, we've been manufacturing butterfly valves to match different process requirements. If you need a Pneumatic PTFE Sleeve Butterfly Valve or require another size from our range, share your operating conditions and pipeline details with us. We'll provide the suitable valve specification and quotation for your requirement.
