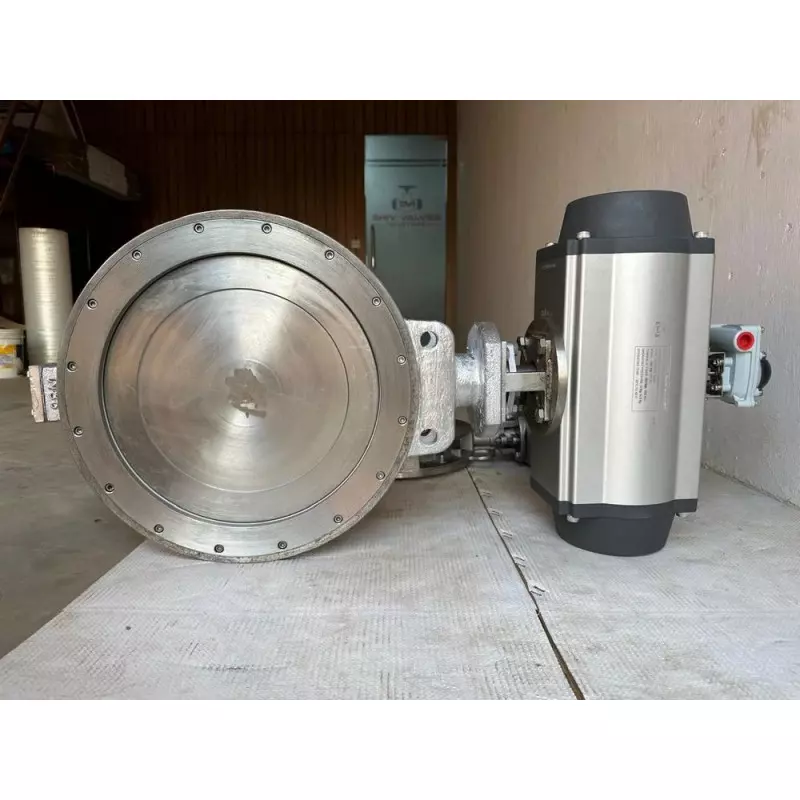

Double Eccentric Off Set Disc Wafer Type Butterfly Valve
Double Eccentric Off Set Disc Wafer Type Butterfly Valve Details
When pipeline reliability depends on smooth shut-off and dependable automated movement, the right disc geometry can make a significant difference. Our Double Eccentric Off Set Disc Wafer Type Butterfly Valve is engineered for industrial flow-control requirements where compact installation, controlled operation and durable sealing are important. Manufactured by Shiv Valves Industries in Ahmedabad, Gujarat, this valve combines a stainless steel construction with pneumatic operation for efficient and repeatable pipeline service.
Offset Disc Geometry for Efficient Flow Isolation
The double-eccentric design positions the disc away from the central axis, reducing unnecessary contact between the disc and PTFE seat during opening and closing. This arrangement can help minimize sealing-surface wear while supporting smoother quarter-turn operation. The wafer-style body provides a compact installation arrangement between pipeline flanges, making it suitable where available space is limited.
With a 250 mm valve size and a broader available size range of 40 mm to 800 mm, the product can be selected for different pipeline configurations. Pneumatic actuation enables automated operation using compressed air, making it suitable for systems requiring frequent or remotely controlled valve movement.
Technical Configuration at a Glance
| Parameter | Specification |
|---|---|
| Valve Size | 250 mm |
| Available Type Range | 40 mm to 800 mm |
| Body Material | Stainless Steel |
| Seat Material | PTFE |
| Operation | Pneumatic |
| Pressure Rating | PN10 |
| Face-to-Face Standard | EN 558-1 |
| Automation Grade | Automatic |
| Suitable Media | Water, Air and Chemicals |
| Country of Origin | Made in India |
Built for Automated Industrial Flow Control
- Double eccentric construction: Supports reduced seat and disc interaction during valve travel.
- Wafer configuration: Provides a compact arrangement between pipeline flanges.
- Pneumatic actuation: Allows automated opening and closing using compressed air.
- Stainless steel body: Provides a robust construction for demanding industrial environments.
- PTFE seating: Offers a suitable sealing interface for the specified applications.
- EN 558-1 face-to-face: Supports dimensional compatibility with the stated standard.
Where the Valve Fits into Process Systems
This Double Eccentric Off Set Disc Wafer Type Butterfly Valve is specified for industrial applications involving water, air and chemicals. Its automatic pneumatic operation makes it particularly relevant to process lines where valves need to be operated from a centralized control arrangement. The 40 mm to 800 mm range also provides flexibility for different pipeline sizes while retaining the compact characteristics of a wafer-type design.
For industries and process installations in Ahmedabad and across Gujarat, Shiv Valves Industries supplies this Made-in-India valve configuration for industrial flow-control requirements. Contact us with your pipeline size, operating conditions and application details to discuss the appropriate valve configuration and pneumatic operation requirements.
