Industrial Butterfly Valve

Efficient flow isolation does not always require a complicated valve arrangement. In many industrial pipelines, a compact quarter-turn design can provide practical control with straightforward operation and dependable installation. Our Industrial Butterfly Valve range is developed for such flow-control requirements, with configurations available for manual operation and gear-assisted operation. Shiv Valves Industries serves industrial valve requirements from Ahmedabad, Gujarat, with a focus on practical construction and application-oriented solutions.

Compact Flow Control for Industrial Pipeline Systems

An industrial butterfly valve uses a rotating disc positioned inside the flow passage to regulate or isolate the movement of process media. Turning the operating mechanism changes the disc position, allowing the valve to move between open and closed conditions. This quarter-turn principle makes butterfly valves suitable for systems where convenient operation, compact installation and efficient flow isolation are important.

Our product range includes two primary operating configurations:

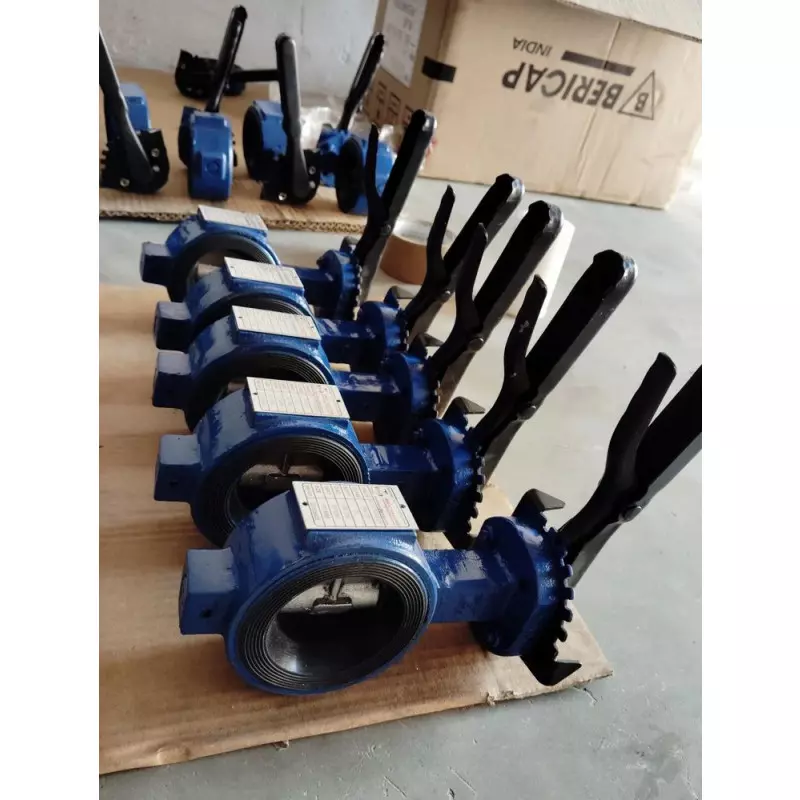

• Hand Operated Butterfly Valve: Designed for applications where the valve is operated directly by an operator. This arrangement is suitable for accessible pipeline locations where manual opening and closing is required.
• Gear Operated Butterfly Valve: Equipped with a gear mechanism that assists valve operation and provides controlled movement, particularly useful where the valve size or operating requirement makes direct manual movement less convenient.

Industrial Butterfly Valve Range at a Glance

Two Operating Styles for Different Site Requirements

The choice between hand operation and gear operation depends largely on the installation and operating conditions. A hand-operated arrangement offers a direct and uncomplicated method for controlling an accessible valve. It can be appropriate for pipelines where regular operator intervention is expected and the valve can be conveniently reached.

Gear operation provides mechanical assistance through a geared operating mechanism. This can make valve movement more manageable in installations where greater operating effort would otherwise be required. It also provides a controlled method of positioning the disc during opening and closing.

Practical Features of the Butterfly Valve Design

• Quarter-turn operating principle for straightforward valve movement.
• Rotating disc provides a direct method of flow isolation.
• Hand-operated configuration for accessible manual applications.
• Gear-operated configuration for applications requiring mechanical operating assistance.
• Compact valve concept suitable for industrial pipeline arrangements.
• Useful for on-off flow isolation and suitable control duties according to the selected valve configuration.
• Operating arrangement can be selected according to installation accessibility and operational requirements.

Suitable for Industrial Flow Management

Industrial Butterfly Valves can be considered for compatible pipeline applications where reliable isolation and practical operation are required. The hand-operated and gear-operated configurations provide flexibility when planning valve access, operating frequency and site requirements. Final valve selection should be based on the process medium, pressure, temperature, pipeline dimensions, connection requirements and required operating method.

For Industrial Butterfly Valve requirements in Ahmedabad and across Gujarat, share your pipeline size, media, pressure, temperature, operating preference and quantity with Shiv Valves Industries. We can provide the appropriate hand-operated or gear-operated configuration and relevant technical details for your application.
