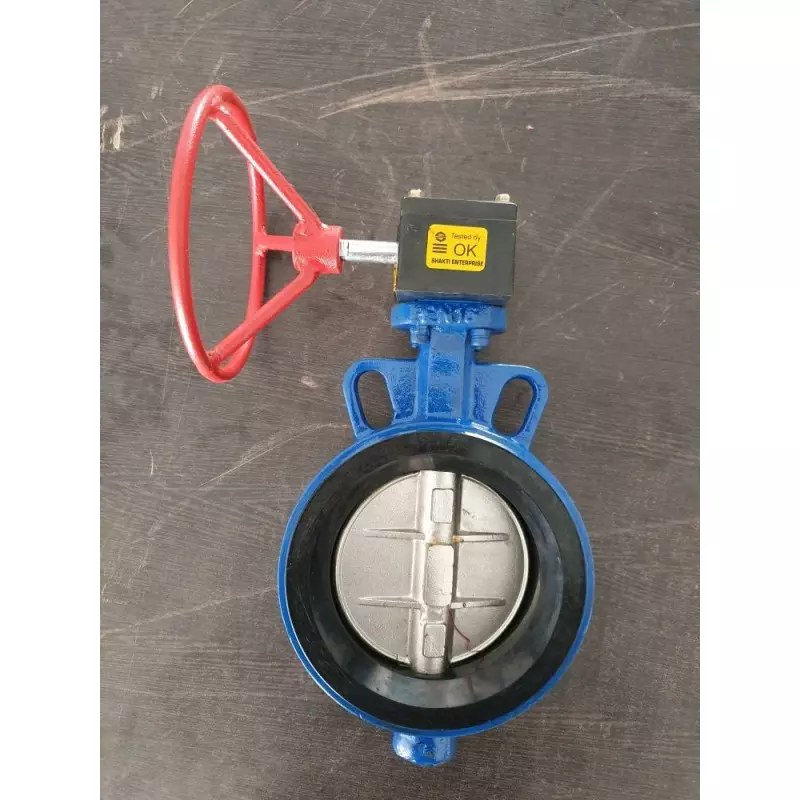

Concentric Disc Wafer Type Rubber Lined Butterfly Valve Lug Type

Efficient pipeline isolation often depends on a valve that combines compact installation, dependable sealing, and controlled operation without unnecessarily complicating the piping arrangement. Our Concentric Disc Wafer Type Rubber Lined Butterfly Valve is developed for this purpose, featuring a carbon steel body, EPDM seat, wafer-end construction, and manual gear operation. Manufactured in Ahmedabad, Gujarat, it is configured for water and air service where practical flow isolation is required.

Compact Construction for Space-Conscious Piping

The wafer-end arrangement allows the valve to be installed between compatible pipeline flanges, making it a practical choice where installation space and overall valve footprint are important considerations. Its concentric disc configuration provides a straightforward butterfly-valve operating principle, while the gear mechanism gives the operator mechanical advantage for controlled opening and closing.

EPDM Lining for Reliable Sealing

The EPDM seat forms an important part of the valve's sealing arrangement. For suitable water and air applications, the resilient seat helps establish a secure shut-off interface between the disc and valve body. Proper material selection remains essential, and actual suitability should always be evaluated against the operating medium, temperature, pressure, and service conditions.

The carbon steel construction provides a robust mechanical foundation, while the blue finish gives the valve a recognizable industrial appearance. The 50 mm size makes this particular configuration suitable for smaller pipeline sections requiring gear-assisted manual isolation.

Functional Advantages at a Glance

• Concentric disc arrangement provides a simple and proven butterfly valve configuration.
• Wafer-end construction supports installation between compatible flanges.
• Carbon steel body offers a sturdy construction for industrial piping service.
• EPDM seat supports resilient sealing for suitable water and air applications.
• Worm-gear style operation provides controlled manual movement.
• PN16 pressure rating is suitable for specified pressure-service requirements.
• API 609 face-to-face specification supports standardized dimensional planning.
• Minimum order quantity is 1 piece.

Manufactured for Industrial Piping Requirements

Shiv Valves Industries, established in 2022, manufactures valve solutions for industrial requirements with an emphasis on appropriate construction and application-oriented specifications. This concentric disc wafer type rubber lined butterfly valve is supplied as a manual gear-operated configuration for water and air service.

For buyers searching for a Concentric Disc Wafer Type Rubber Lined Butterfly Valve in Ahmedabad, Gujarat, product specifications can be discussed according to pipeline size, pressure requirements, medium, connection arrangement, and operating conditions. Contact us to obtain detailed technical information and commercial details for your requirement.
