Pneumatic Rubber Lined Wafer Type Double Flange Butterfly Valve

Large-diameter pipelines need flow isolation equipment that balances dependable sealing with practical operation and straightforward installation. Our Pneumatic Rubber Lined Wafer Type Double Flange Butterfly Valve is designed for industrial flow-control requirements where a compact butterfly-valve arrangement, rubber-lined sealing, and reliable actuation are important. The supplied SVI configuration is 200 mm / 8 inch and is suitable for specified industrial pipeline applications in Ahmedabad, Gujarat and across India.

Compact Flow Isolation with a Robust Flanged Arrangement

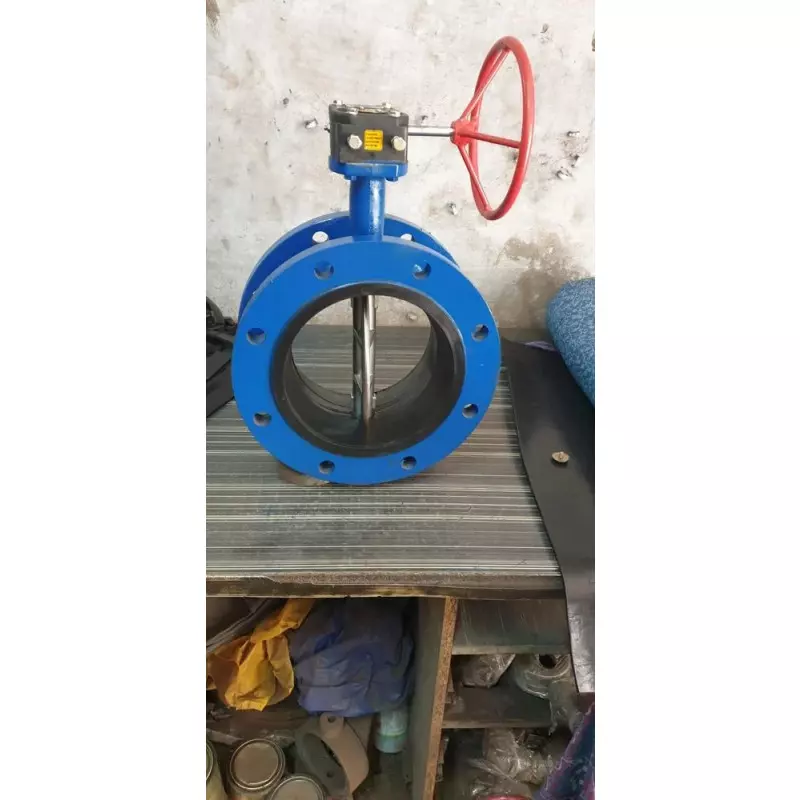

This butterfly valve combines a Cast Iron body with an EPDM seat and a double-flange connection arrangement. The flanged construction follows ANSI B16.5, providing a structured interface for compatible piping systems. Its quarter-turn butterfly mechanism allows the disc to move between open and closed positions, while the gear-operated arrangement provides controlled manual operation for the specified configuration.

Rubber-Lined Sealing for Reliable Service

The EPDM seat provides the specified resilient sealing arrangement around the valve disc. Rubber-lined butterfly valves are commonly selected for compatible water and industrial fluid applications where dependable shut-off and protection of internal valve surfaces are required. Alternative seat materials listed for this model include PTFE, Nitrile and NBR, allowing the configuration to be considered according to actual process-media compatibility.

Key Characteristics of the SVI Configuration

• 8-inch / 200 mm valve size for larger pipeline applications.
• PN16 pressure rating for the specified operating class.
• Cast Iron body construction.
• EPDM seat for resilient sealing.
• ANSI B16.5 flange standard.
• Gear-operated mechanism for controlled valve movement.
• Flange-end connection for compatible piping systems.
• Material options including WCB, CI, SS 304 and SS 316.
• Operating temperature specified up to 120 °C.

Where This Butterfly Valve Fits

The valve can be considered for suitable industrial flow-isolation duties where an 8-inch butterfly valve with a flanged connection and resilient seat is required. Its configuration is particularly relevant to compatible water-handling and general industrial pipeline systems. Correct selection should be based on the actual medium, pressure, temperature, flange dimensions, chemical compatibility and required operating conditions.

Manufactured for Industrial Requirements in Ahmedabad

Shiv Valves Industries, established in 2022, manufactures the SVI Make Pneumatic Rubber Lined Wafer Type Double Flange Butterfly Valve for industrial requirements. The product is identified by model SVIDF-BFV and is manufactured in India, with a minimum order quantity of 1 piece.

For enquiries in Ahmedabad, Gujarat, share your required valve size, media, pressure, temperature and piping specifications with Shiv Valves Industries. Our team can provide the relevant technical details and quotation for your application.
