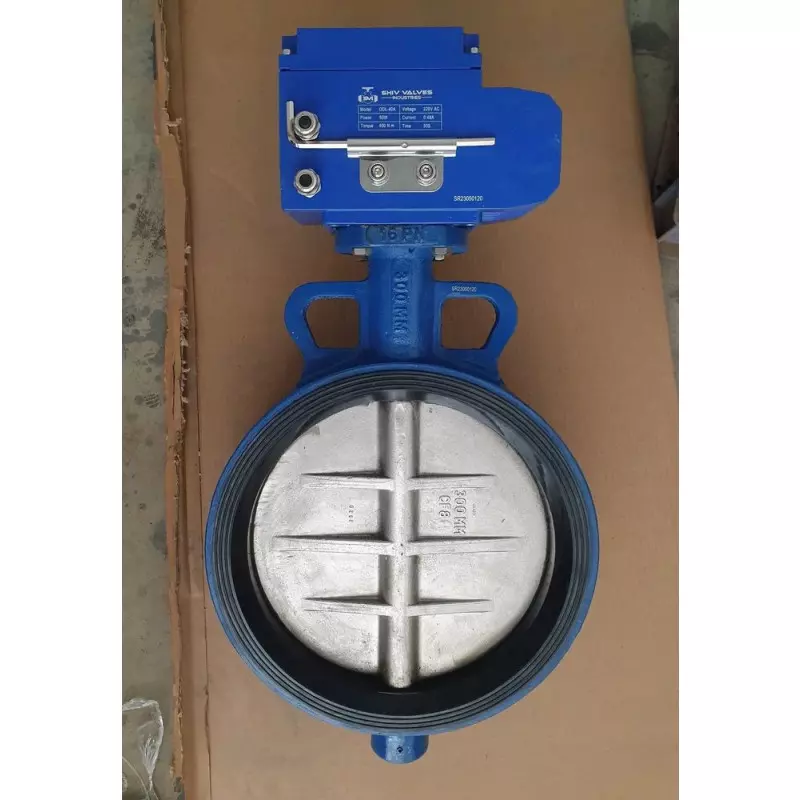

Motorized Butterfly Valve

Pressure Rating	PN 16
Valve Size	More than 8 inch
Body Material	Cast Iron
Size	40MM TO 1000MM
End Connection	WAFER END
Actuator Type	ELECTRIC ACTUATOR
Seat Material	EPDM
Pressure	PN16
Automation Grade	Automatic
Supply	24VDC 220VAC
Power Supply	230V AC
Valve Operation	On Off
Media	Air, Water, Chilled Water, Hot Water

Make : SVI
Electric Actuator ButterflyValve
Body : CI /SS 304 / SS 316 / PP / PVDF
Disc : WCB / SS 304 / SS 316
Seat : EPDM / PTFE / Silicon / Viton
Motorized Operated
Supply Voltage : 24V DC / 220V AC
A motorized butterfly valve is an automated quarter-turn valve that uses an electric actuator to precisely control fluid flow in pipelines.Working Principle

A motorized butterfly valve operates by rotating a flat circular disc, or "butterfly," within the valve body to regulate or stop fluid flow. The disc is connected to a shaft, which is driven by an electric actuator. When the actuator receives a control signal (ON/OFF or modulating), it rotates the disc 0–90 degrees. In the fully open position, the disc aligns with the pipeline to allow flow; in the closed position, it seals against the valve seat to stop flow. Limit switches or sensors automatically stop the motor at the desired position, enabling precise flow control and automation integration with systems like PLC, SCADA, or BMS

Key Components

• Electric Actuator: Converts electrical energy into mechanical motion to rotate the disc. Actuators can be On/Off type for simple isolation or Modulating type for precise positioning using 4-20mA or 0-10V signals
• Valve Body: Houses the disc and connects to the pipeline. Materials include stainless steel, cast iron, or UPVC depending on media compatibility
• Disc and Shaft: The disc creates a seal when closed and regulates flow when partially open. The shaft transmits torque from the actuator to the disc

Advantages Over Manual Valves

• Automation: Can be remotely operated and integrated into control systems, eliminating manual intervention
• Precision: Allows fine flow regulation, unlike manual valves that rely on operator judgment
• Efficiency: Faster operation and reduced labor costs, especially in systems requiring frequent cycling
• Compact Design: Shorter length and lower profile compared to gate or globe valves, making installation easier in tight spaces

Applications

Motorized butterfly valves are widely used in:

• Water treatment and distribution systems for precise flow control
• HVAC systems to regulate heating, cooling, and ventilation flows
• Chemical and petrochemical industries for process control and isolation
• Power plants, pharmaceuticals, shipbuilding, and metallurgy for both regulating and on/off applications
