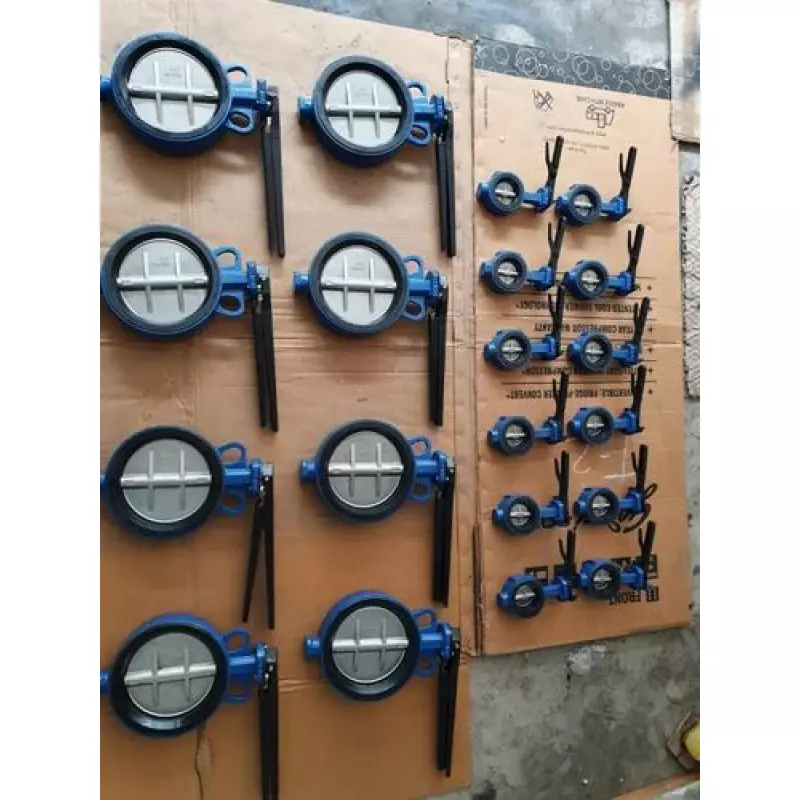

Wafer Butterfly Valve

Space-efficient valve installation becomes especially important when pipelines run through compact plant layouts, utility areas and process skids. Our Wafer Butterfly Valve is designed around this requirement, offering a streamlined wafer-style construction that fits between compatible pipeline flanges without requiring a separate flanged body. Manufactured in Ahmedabad, Gujarat, the valve is suited to industrial flow isolation and regulation applications where compactness, practical installation and dependable operation are important.

A Compact Approach to Pipeline Flow Management

The wafer butterfly valve uses a rotating disc positioned inside the flow passage. Turning the disc through approximately 90 degrees changes the flow condition from open to closed, allowing quick isolation with a comparatively compact valve assembly. Its wafer configuration makes it useful where installation space is limited and helps simplify pipeline arrangements in suitable applications.

Designed Around Practical Installation Requirements

Unlike bulky valve arrangements, the wafer configuration is developed to occupy relatively little space along the pipeline. This can be advantageous in industrial installations where equipment density, maintenance access and overall piping dimensions must be carefully considered. The rotating disc provides a direct flow-control mechanism, while the compact body supports easier integration into suitable piping systems.

Available Wafer Butterfly Valve Configurations

Our product range includes application-oriented configurations within the wafer butterfly valve category, allowing the operating arrangement or construction to be selected according to system requirements.

• Electrical Actuator Operated Butterfly Valve: Provides motorized quarter-turn operation for installations requiring electrically controlled opening and closing.
• Long Shaft Butterfly Valve Wafer Type: Suitable where an extended shaft arrangement is required to accommodate specific installation or accessibility conditions.
• PTFE Sleeve Butterfly Valve: Incorporates a PTFE sleeve arrangement for applications where the lining material needs to provide suitable chemical and friction characteristics.
• Pneumatic PTFE Sleeve Butterfly Valve: Combines PTFE sleeve construction with pneumatic actuation for repeatable automated flow isolation.
• Spherical Disc Butterfly Valve: Uses a spherical disc profile within the butterfly valve design for selected flow-control requirements.

Operational Advantages for Industrial Piping

• Compact wafer-style construction helps optimize pipeline space.
• Quarter-turn movement enables rapid opening and closing.
• Suitable configurations are available for manual and automated operating requirements.
• Can be integrated into appropriate industrial water and process-fluid piping systems.
• Wafer installation can provide a practical solution for space-conscious pipeline layouts.

Applications Across Ahmedabad and Gujarat

Wafer butterfly valves can be considered for compatible water-handling, utility, process and industrial pipeline applications throughout Ahmedabad and Gujarat. Configuration selection should take account of the service medium, pressure, temperature, pipeline size, operating frequency and required actuation method.

For wafer butterfly valve requirements, including the available actuator-operated, long-shaft, PTFE sleeve, pneumatic PTFE sleeve and spherical-disc configurations, contact us with your pipeline specifications and operating conditions. We can assist with identifying a suitable valve arrangement for your Ahmedabad, Gujarat installation.
