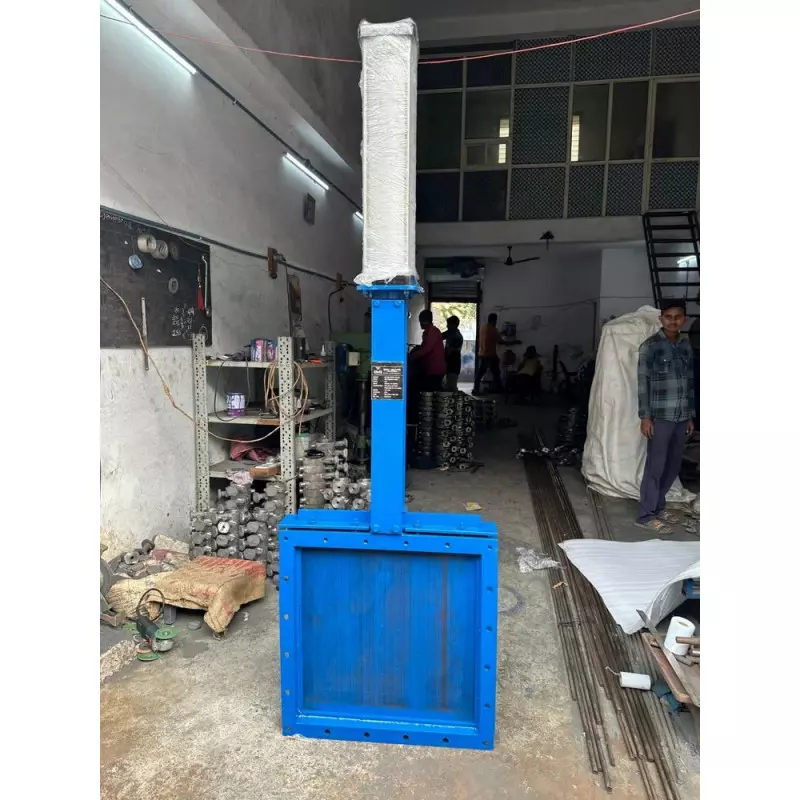

Pneumatic Slide Gate Valve

Moving large quantities of slurry through an industrial system demands an isolation solution that can handle demanding media while allowing reliable, repeatable operation. The SVI Pneumatic Slide Gate Valve is designed around this requirement, combining a robust mild steel construction with pneumatic cylinder operation and automatic opening. With a substantial 600 mm × 600 mm size, flange-end connection and PN6 pressure rating, it is configured for industrial and commercial installations where controlled slurry isolation is required.

Large-Format Slide Gate Design for Slurry Service

This pneumatic slide gate valve uses a sliding gate arrangement to open or close the flow passage. Instead of relying on manual movement, its pneumatic cylinder converts compressed air into the mechanical movement required to operate the gate. This arrangement supports remote and automatic operation, making it practical for systems where frequent manual access to the valve is inconvenient.

The 600 mm × 600 mm configuration provides a large flow opening suitable for appropriately sized process systems. Its application is particularly focused on slurry media, where the valve selection must be matched carefully with the physical characteristics and operating conditions of the process.

Technical Specifications

Operating Arrangement and Construction

• Pneumatic cylinder operation: Uses compressed air to produce automatic gate movement.
• Mild steel construction: Provides a sturdy structural configuration for industrial installations.
• Flange-end connection: Supports installation with compatible flanged pipeline arrangements.
• Automatic opening pattern: Enables operation through a pneumatic control arrangement.
• Large 600 × 600 mm size: Developed for large-opening process requirements.
• PN6 pressure rating: Suitable for applications operating within the specified pressure range.

Built Around Practical Process Isolation

A slide gate valve is primarily intended for isolation service, where the gate moves across the passage to establish an open or closed condition. The pneumatic version adds automation to this basic mechanism, allowing valve operation to be incorporated into a wider process-control arrangement. For slurry service, proper sizing and installation are important to achieve dependable operation and suitable service life.

Applications and Installation Considerations

The SVI Pneumatic Slide Gate Valve is specified for slurry-handling applications across industrial and commercial environments. Before installation, the pipeline arrangement, media characteristics, pressure, temperature and available pneumatic supply should be reviewed against the stated valve specifications. The flange dimensions and supporting pipeline components should also be compatible with the selected configuration.

Shiv Valves Industries, established in 2022, supplies industrial valve solutions from Ahmedabad, Gujarat, with attention to application-specific requirements and defined product specifications. This Pneumatic Slide Gate Valve is available as a Made in India product with a focus on automated slurry isolation.

For enquiries about the 600 mm × 600 mm Pneumatic Slide Gate Valve, share your slurry application, operating pressure, temperature and installation details with Shiv Valves Industries in Ahmedabad, Gujarat, for suitable product guidance and supply information.
