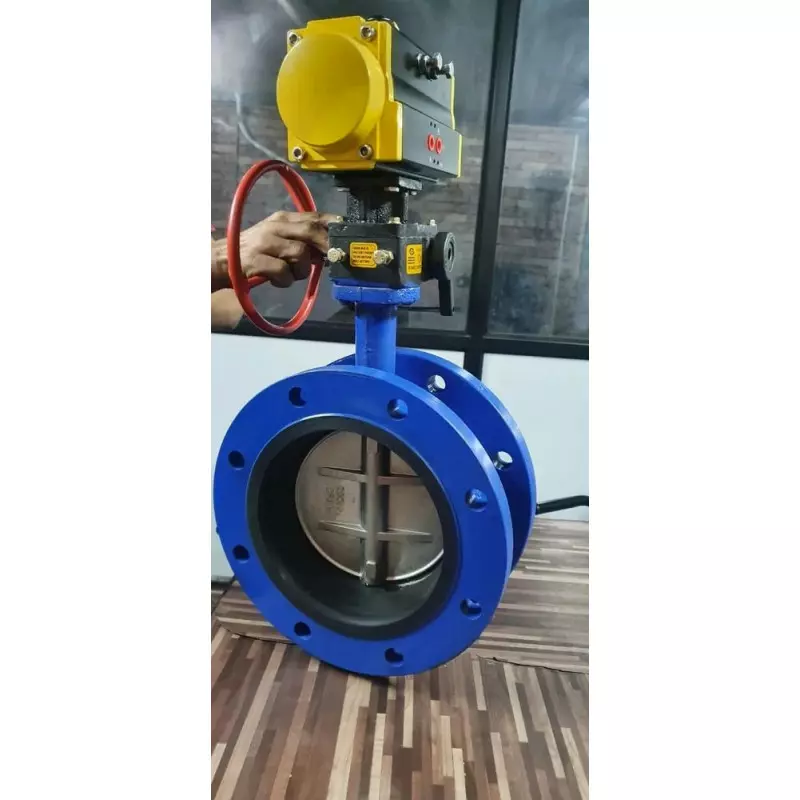

Flange End Butterfly Valve

Automated isolation becomes considerably more practical when a valve combines a robust flange-end connection with quarter-turn operation. Our Flange End Butterfly Valve is developed for industrial pipelines requiring dependable shut-off, compact valve construction, and pneumatic actuation. The SVI configuration specified here is a 150 mm (6 inch) valve with a Cast Iron body, SS 304 disc, EPDM seat, and PN16 pressure rating, making it suitable for compatible industrial flow-control applications in Ahmedabad, Gujarat.

Six-Inch Butterfly Valve with Automated Operation

The valve uses a pneumatic actuator to rotate the butterfly disc between its operating positions. This arrangement eliminates the need for routine manual lever operation and makes the valve suitable for installations where remote or automated opening and closing is preferred. The flange-end design provides a defined connection interface for compatible piping systems, while the compact butterfly configuration helps keep installation requirements practical.

Material Combination Built for Industrial Service

The Cast Iron body provides the structural foundation of the valve, while the SS 304 disc provides a corrosion-resistant material option for the wetted flow-control component. An EPDM seat forms the specified resilient sealing arrangement. This combination is particularly relevant to compatible industrial water and general fluid-handling duties, subject to actual media and temperature compatibility.

Performance Features at a Glance

• 6-inch valve size for medium-to-large industrial pipeline applications.
• PN16 pressure rating for the specified service class.
• Pneumatic actuator-operated design for automated valve movement.
• Cast Iron body for robust industrial construction.
• SS 304 disc for the specified material configuration.
• EPDM seat for resilient sealing.
• ANSI B16.5 flange standard for compatible flange connections.
• API 609 face-to-face specification.
• Compact quarter-turn operating principle.

Suitable Applications for Automated Flow Isolation

Flange End Butterfly Valves can be integrated into compatible industrial water lines, utility pipelines, process systems, fluid distribution networks, and automated isolation points. Pneumatic actuation is especially useful where valves need to be operated from a control location or incorporated into an automated process sequence.

Before selection, the actual fluid, operating pressure, temperature, pipeline dimensions, flange standard, actuator requirements, and sealing compatibility should be evaluated to ensure the valve configuration is appropriate for the intended service.

SVI Make Valve Supply from Ahmedabad

Shiv Valves Industries, established in 2022, manufactures SVI Make industrial valve solutions with a focus on application requirements and product quality. This Flange End Butterfly Valve is offered with a minimum order quantity of 1 piece and is manufactured for industrial requirements in India.

For Flange End Butterfly Valve requirements in Ahmedabad and Gujarat, share your pipeline size, media, pressure, temperature, and automation requirements with Shiv Valves Industries. We can provide the applicable technical details and quotation for your project.
