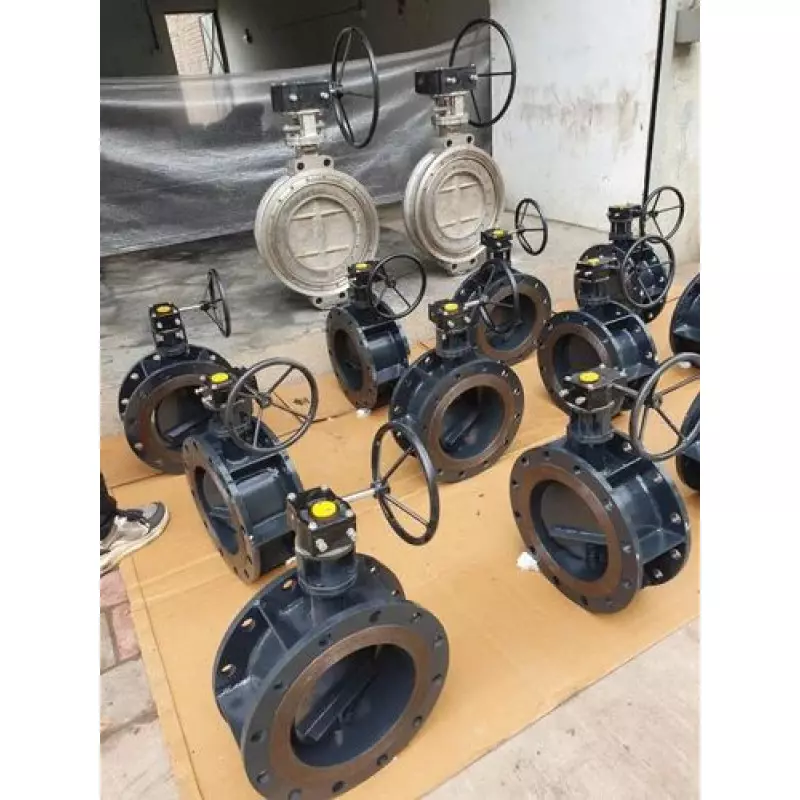

Damper Butterfly Valve
Damper Butterfly Valve Details
Controlling air and flue-gas movement in industrial piping systems requires a valve that combines straightforward operation with dependable mechanical construction. The Damper Butterfly Valve from Shiv Valves Industries is designed for industrial flow isolation and regulation, particularly where air, water, and flue gas need controlled passage. Manufactured in India and supplied from Ahmedabad, Gujarat, this gear-operated valve features a mild steel body, flanged connection and EPDM seating for practical installation across industrial systems.
Built for Controlled Industrial Air and Gas Flow
This Damper Butterfly Valve uses a compact butterfly-style arrangement in which the disc rotates within the flow passage. The quarter-turn operating principle enables convenient positioning between open and closed conditions, while the gear mechanism provides controlled manual operation for applications where direct lever operation is not suitable. Its 250 mm size and PN6 pressure rating make it appropriate for specified low-pressure industrial services.
| Valve Type | Damper Butterfly Valve |
| Nominal Size | 250 mm |
| Body Material | Mild Steel (MS) |
| End Connection | Flanged |
| Operation | Gear Operated |
| Pressure Rating | PN6 |
| Seat Material | EPDM |
| Temperature Range | 0–200°C |
| Suitable Media | Flue Gas, Air, Water |
| Application | Industrial |
| Mounting | End Flanged |
| Country of Origin | Made in India |
Gear-Driven Design for Practical Handling
The gear-operated configuration allows the operator to apply controlled mechanical movement when opening or closing the valve. This is particularly useful for a 250 mm valve, where a geared arrangement can make positioning more manageable than direct manual operation. The flanged end connection also supports installation into compatible industrial piping layouts and simplifies alignment during assembly and maintenance.
Materials Selected for Industrial Service
- Mild steel body: Provides a robust structural foundation for industrial service.
- EPDM seat: Supports sealing performance in suitable air and water applications.
- Flanged ends: Provide a conventional connection arrangement for industrial pipelines and ducting systems.
- Gear operator: Enables controlled manual positioning of the valve.
Where This Damper Butterfly Valve Fits
The valve is suitable for industrial systems handling air, water and flue gas, with a stated temperature range of 0–200°C. Its configuration can be considered for air-handling lines, industrial utility piping and other applications where controlled isolation or flow adjustment is required within the specified pressure and temperature conditions.
SVI Make Damper Butterfly Valve from Ahmedabad
Shiv Valves Industries, established in 2022, manufactures the SVI Make Damper Butterfly Valve with an emphasis on defined material selection, functional construction and consistent quality standards. Customers in Ahmedabad and across Gujarat can specify this 250 mm, PN6, flanged and gear-operated configuration for suitable industrial requirements.
For technical requirements, quantity enquiries or application-specific specifications for the SVI Make Damper Butterfly Valve, contact Shiv Valves Industries in Ahmedabad, Gujarat. The minimum order quantity is 1 piece, making the valve available for individual equipment requirements as well as industrial procurement.
