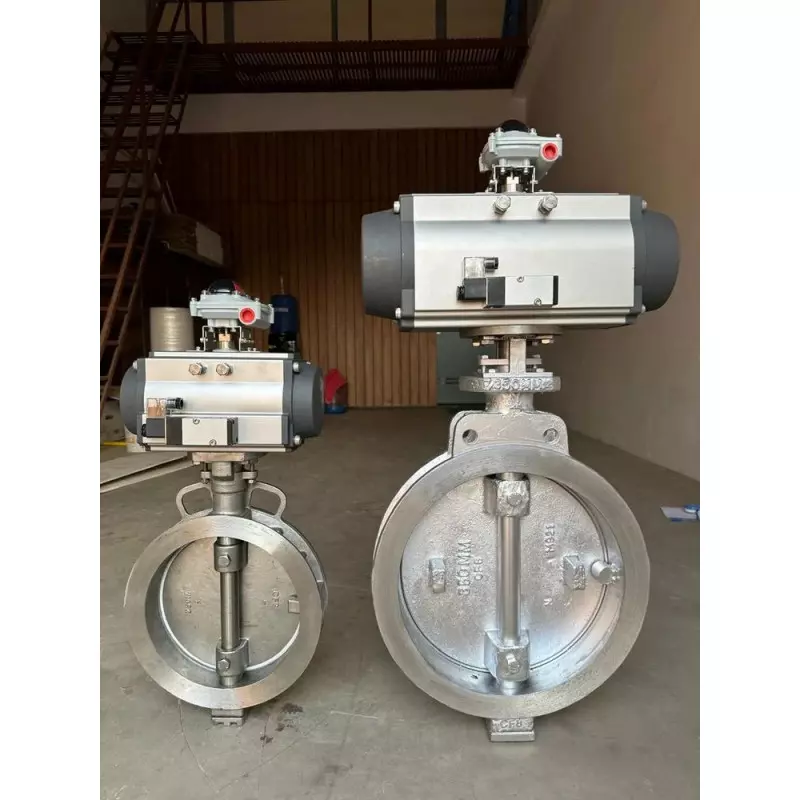

Pneumatic Double Eccentric Off Set Disc Double Flange Butterfly Valve
Pneumatic Double Eccentric Off Set Disc Double Flange Butterfly Valve Details
For industrial systems where dependable sealing, reduced operating torque, and automated performance are critical, our Pneumatic Double Eccentric Off Set Disc Double Flange Butterfly Valve offers an advanced flow control solution. Manufactured with precision engineering in Ahmedabad, Gujarat, this valve is designed to perform efficiently in demanding water handling applications. Its double eccentric offset disc design minimizes seat wear during operation, resulting in extended service life, smooth actuation, and reliable shut-off performance even after repeated operating cycles.
Advanced Double Offset Design for Reliable Performance
The double eccentric construction positions the disc slightly away from the seat during operation, reducing friction and improving sealing efficiency. Combined with a pneumatic actuator, the valve delivers quick and automatic operation, making it suitable for modern process automation systems. The stainless steel SS304 body and PTFE soft seat provide excellent resistance to corrosion, moisture, and continuous industrial use while maintaining dependable sealing under varying operating conditions.
We also offer Pneumatic Double Eccentric Butterfly Valves in multiple sizes, pressure ratings, and automation configurations to meet different pipeline and process requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Pneumatic Double Eccentric Off Set Disc Double Flange Butterfly Valve |
| Valve Size | 14 Inch (350 mm) |
| Offset Type | Double Offset |
| Body Material | SS304 (CF8) |
| Seat Material | PTFE Soft Seat |
| Operation | Pneumatic |
| Automation Grade | Automatic |
| Pressure Rating | PN10 |
| Maximum Pressure | 16 Kg/cm² |
| End Connection | Wafer End |
| Flange Standard | ANSI B16.5 |
| Media | Water |
| Model | SVIBV-PA |
| Country of Origin | Made in India |
Key Functional Advantages
- Double eccentric disc design minimizes seat friction and extends valve life.
- Pneumatic actuator enables fast and reliable automatic operation.
- SS304 body offers excellent corrosion resistance and mechanical strength.
- PTFE soft seat provides dependable sealing with low operating torque.
- Suitable for continuous industrial service with minimal maintenance.
- Wafer end connection simplifies installation between pipeline flanges.
- Designed for smooth performance under repeated opening and closing cycles.
Industrial Applications
This valve is widely used in water treatment plants, industrial water distribution networks, utility pipelines, pumping stations, processing plants, cooling water systems, and automated fluid handling applications. Its automatic pneumatic operation allows accurate flow control while reducing manual intervention and improving overall process efficiency.
Built for Long-Term Process Reliability
The combination of a precision-machined stainless steel body, PTFE seat, and double offset disc ensures excellent sealing performance while reducing mechanical wear. This design lowers maintenance requirements, enhances operational reliability, and delivers consistent performance even in demanding industrial environments. Manufactured using stringent quality standards, every valve is engineered for dependable operation and long service life.
If you are searching for a Pneumatic Double Eccentric Off Set Disc Double Flange Butterfly Valve in Ahmedabad, Gujarat, we provide durable and high-performance valve solutions tailored to industrial automation and water flow control applications. Contact our team for technical guidance, customized specifications, or a competitive quotation based on your project requirements.
