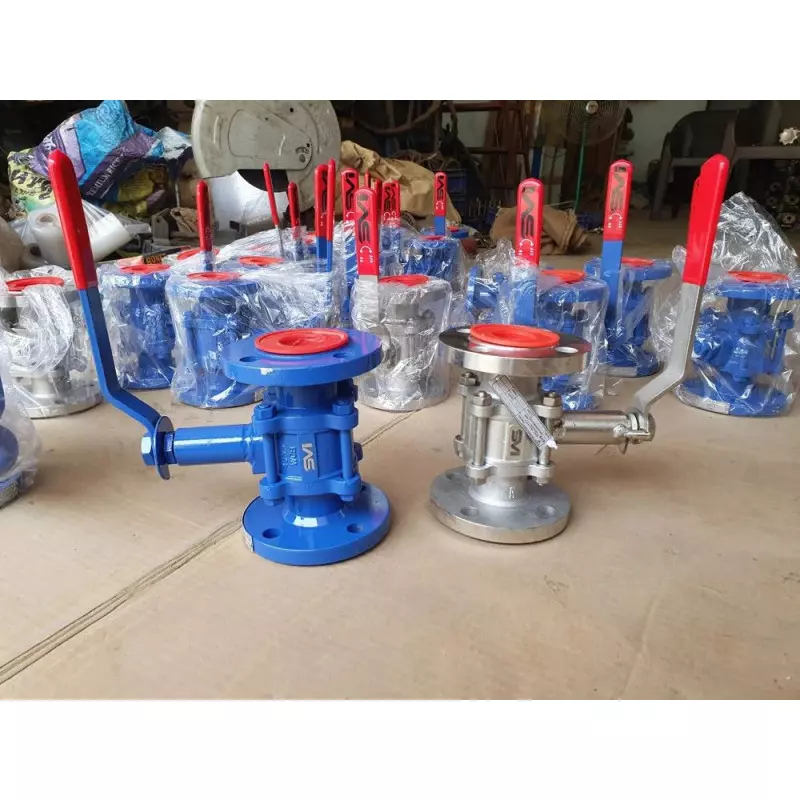

Cast Steel Ball Valve

In process piping, dependable shut-off begins with a valve that combines a strong pressure-containing body with smooth, controlled ball movement. Our Cast Steel Ball Valve is developed for industrial on-off service where reliable isolation and a practical manual operating arrangement are required. The SVI make SVIBV model features a full-bore passage, SS 304 ball, PTFE seating and a three-piece construction for applications across water, air, steam, oil, gas and chemical services.

Full-Bore Design for Efficient Isolation

The full-bore port allows the internal flow passage to remain substantially aligned with the connected pipeline when the valve is open. This makes the configuration suitable for applications where maintaining an unobstructed flow path is important. A manual lever provides direct operation, allowing the user to open or close the valve through a simple quarter-turn mechanism.

Three-Piece Construction with Carefully Selected Internals

The three-piece valve configuration provides a practical construction for industrial service. Its pressure-containing body is specified as Carbon Steel with CF8 body material grade, while the SS 304 ball provides a robust rotating closure element. PTFE is used for the seat to support dependable seating and smooth ball operation under the specified service conditions. The SS stem connects the operating mechanism to the internal ball assembly.

Built Around Industrial Service Requirements

• Full-bore flow passage: Supports an open-flow configuration with a continuous internal passage.
• Manual lever operation: Provides straightforward quarter-turn control without external power.
• SS 304 ball: Provides a durable ball component for the specified applications.
• PTFE seat: Offers a suitable seating material for the stated service conditions.
• Flanged ends: Provide a practical connection arrangement for compatible piping systems.
• 150 Class rating: Establishes the specified pressure-class configuration.
• ASME B16.34 design reference: Supports selection according to the stated valve design standard.

One Valve, Multiple Process-Service Possibilities

This Cast Steel Ball Valve is specified for a broad range of industrial applications, including water, gas, power plant, air, steam, oil, refinery and chemical services. The supplied media specification includes water, air and steam. Its combination of manual operation, full-bore construction and flange-end connection makes it suitable for pipeline isolation duties where accessible and direct valve operation is preferred.

Selection Details at a Glance

Industrial Flow Isolation from Ahmedabad

Shiv Valves Industries, established in 2022, manufactures the SVI make Cast Steel Ball Valve for defined industrial valve requirements. The SVIBV configuration brings together a CF8 body grade, SS 304 ball, PTFE seat, SS stem and manual lever operation in a 2-inch, 150 Class valve arrangement.

For Cast Steel Ball Valve requirements in Ahmedabad and across Gujarat, contact Shiv Valves Industries for product specifications, availability, quantity requirements and application-related information.
